Quick Details
-
Production Speed(Cycles/min):
-
15-45 times/min
-
Air Pressure(MPa):
-
0.7 MPa
-
Heating Power (kW):
-
21 kW
-
Air Comsumption(L/min):
-
5 L/min
-
Water Comsumption(L/min):
-
0 L/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AW-420W
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2500*1000*1600mm
-
Weight (T):
-
1.2 T
-
Power(KW):
-
21
-
Product name:
-
Low Cost Plastic Cup Lid/paper Cup Cover Making Machine
-
Keyword:
-
plastic lid making machine
-
Suitable material:
-
PET ,PVC, PS
-
Cutting Speed:
-
15-45 times/min
-
Stroke adjustable range:
-
160mm
-
Max. Forming Depth:
-
45mm
-
Max. Forming Area:
-
420*160mm
-
Motor Power:
-
4KW
-
Overall Dimensions:
-
2500x1000x1600mm
-
Weight:
-
1300kg
Quick Details
-
Max.Forming Height(mm):
-
45 mm
-
Forming Width (mm):
-
160 mm
-
Forming Length (mm):
-
420 mm
-
Production Speed(Cycles/min):
-
15-45 times/min
-
Air Pressure(MPa):
-
0.7 MPa
-
Heating Power (kW):
-
21 kW
-
Air Comsumption(L/min):
-
5 L/min
-
Water Comsumption(L/min):
-
0 L/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AW-420W
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2500*1000*1600mm
-
Weight (T):
-
1.2 T
-
Power(KW):
-
21
-
Product name:
-
Low Cost Plastic Cup Lid/paper Cup Cover Making Machine
-
Keyword:
-
plastic lid making machine
-
Suitable material:
-
PET ,PVC, PS
-
Cutting Speed:
-
15-45 times/min
-
Stroke adjustable range:
-
160mm
-
Max. Forming Depth:
-
45mm
-
Max. Forming Area:
-
420*160mm
-
Motor Power:
-
4KW
-
Overall Dimensions:
-
2500x1000x1600mm
-
Weight:
-
1300kg

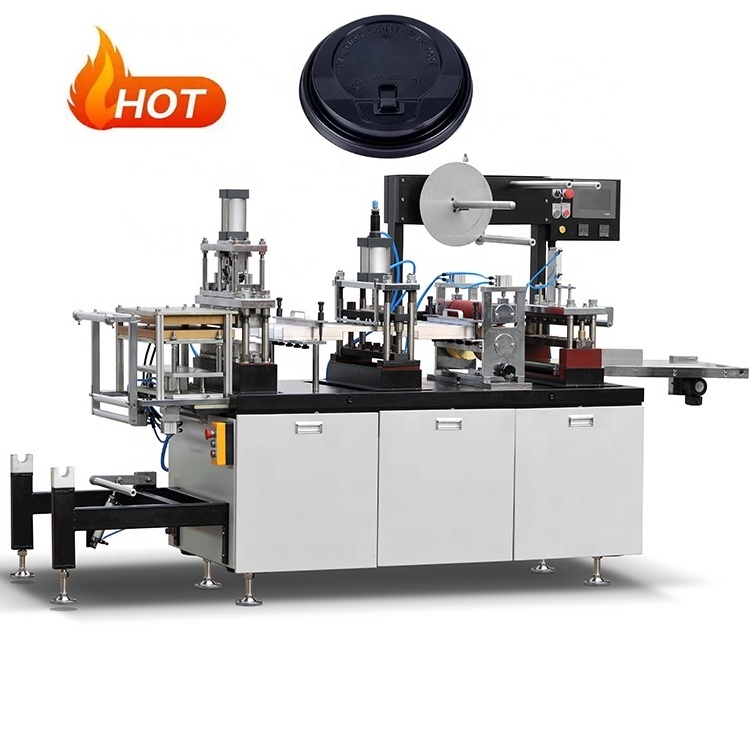

Low Cost Plastic Cup Lid/paper Cup Cover Making Machine
Product Description
Application
AW-420/450 Cup Lid Forming Machine with Servo feeding system, can use almost all kinds of plastic material, like PVC, PET, PS, HIPS and so on, you can make lids with diameter 60-260mm by changing moulds.
Specifications
|
Product Name
|
Full-Automatic Plastic Lid Forming Machine
|
|
|
Model
|
AW-420W
|
AW-450W
|
|
Cutting Frequency
|
15-45 times/min
|
15-45 times/min
|
|
Stroke adjustable range
|
160mm
|
300mm
|
|
Max Forming Depth
|
45mm
|
45mm
|
|
Max Forming Area
|
420*160mm
|
450*300mm
|
|
Power
|
380v/220v50HZ
|
380v/220v50HZ
|
|
Weight of Machine
|
1200 kg
|
1500kg
|
|
Motr power
|
380v 50hz (220v 60hz) 21kw
|
380v/220v50HZ
|
|
Air Pressure
|
0.4-0.7mpa
|
0.4-0.7mpa
|
|
Consumption
|
>0.3m³/h
|
>0.3m³/h
|
|
Overall Dimension(LxWxH)
|
2500*1000*1600mm
|
3500*1000*1600mm
|
Product Features
1.The machine is designed and manufactured by the standard of “GMP” in medical industry and “QS” in food industry.
2.This machine can do forming, punching and blanking at the same time to avoid the cross-contamination of product.
3.The forming heating plate can open and close automatically, also can delay to start, so as to control and lower the waste of the material during the production.
4. Easy to replace the mould, application to different specifications of products.
5.Design the mould according to customer’s requirements
6. Applicable projects: the material of
HIPS, PVC, PET, PS.
Product Details
Factory
Related products
Packaging & Shipping
Packing&Delivery
|
Package details
|
By container or standard export packing per machine
|
|
Delivery details
|
within 30 working days after receiving your prepayments
|
|
Shipment details
|
Express,sea,truck,airplane etc.
|
