Quick Details
-
Voltage:
-
380V
-
Power:
-
depend on the model
-
Dimension(L*W*H):
-
depend on the model
-
Weight:
-
1000 kg
-
Name:
-
napkin tissue machine for start business with CE certificate
-
Finished Products:
-
Serviette Tissue
-
Printing unit:
-
1-3 colors as per requirement
-
Embossing unit:
-
Full or border pattern as per requirement
-
Parent roll diameter:
-
1200mm
-
Parent roll core inner diameter:
-
76.2mm
-
Installed power:
-
4.5KW (380V 50HZ 3Phases)
-
Speed:
-
600 sheets/min
-
Machine weight:
-
1000KG
-
Certification:
-
ce
Quick Details
-
Production Capacity:
-
500-700sheets/min
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
XINYUN
-
Voltage:
-
380V
-
Power:
-
depend on the model
-
Dimension(L*W*H):
-
depend on the model
-
Weight:
-
1000 kg
-
Name:
-
napkin tissue machine for start business with CE certificate
-
Finished Products:
-
Serviette Tissue
-
Printing unit:
-
1-3 colors as per requirement
-
Embossing unit:
-
Full or border pattern as per requirement
-
Parent roll diameter:
-
1200mm
-
Parent roll core inner diameter:
-
76.2mm
-
Installed power:
-
4.5KW (380V 50HZ 3Phases)
-
Speed:
-
600 sheets/min
-
Machine weight:
-
1000KG
-
Certification:
-
ce

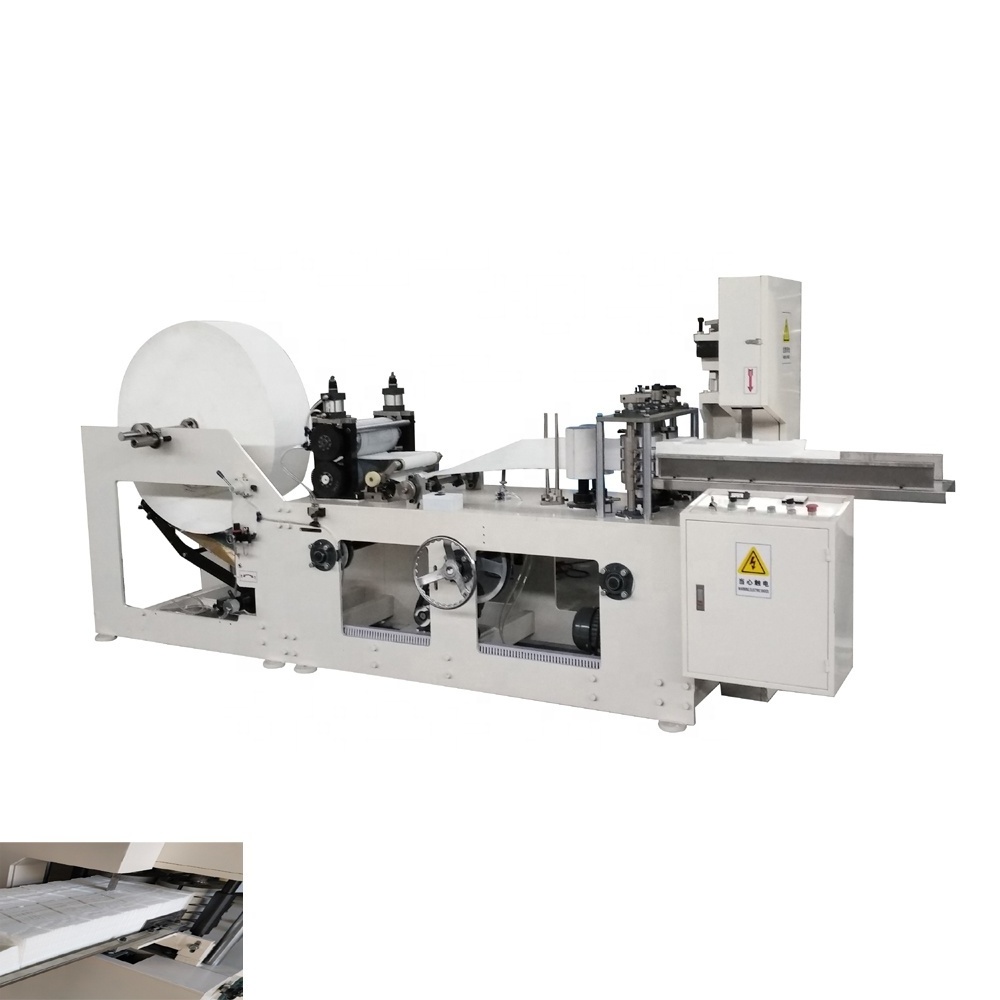

Factory direct sell tissue paper napkin making fold machine
XY-OQ-7000A multi-colors napkin paper machine print various kind of colors and design on cut raw material, and to be square and rectangle napkin after embossing, folding, counting and cutting.
Main feature:
1. Adopt flexible printing unit, high procession ceramic anilox roller, making the water ink equally spread and print out extract and stereo pattern.
2. Raw material through synchronous belt and come into calendaring unit, and into embossing unit. There is tension unit between raw material and calendaring, raw material and embossing.
3. Folding wheel automatic stop machine protection unit.
4. Automatic rectify system.
5. Automatic constant temperature drying system.
6. Raw material broken protection unit. Automatic speed down unit when raw material run out. Folding roller stop protection unit.
7. Water ink circulation system.
8. Full-automatic unreel control system: track the speed of main machine by computer, transmit to servo system, the servo system convey paper to printing system accurately according to the order of computer and make perfect product.
Video link: https://youtu.be/KQKnB61v_P4
1. Adopt flexible printing unit, high procession ceramic anilox roller, making the water ink equally spread and print out extract and stereo pattern.
2. Raw material through synchronous belt and come into calendaring unit, and into embossing unit. There is tension unit between raw material and calendaring, raw material and embossing.
3. Folding wheel automatic stop machine protection unit.
4. Automatic rectify system.
5. Automatic constant temperature drying system.
6. Raw material broken protection unit. Automatic speed down unit when raw material run out. Folding roller stop protection unit.
7. Water ink circulation system.
8. Full-automatic unreel control system: track the speed of main machine by computer, transmit to servo system, the servo system convey paper to printing system accurately according to the order of computer and make perfect product.
Video link: https://youtu.be/KQKnB61v_P4
|
Name
|
napkin tissue machine for start business with CE certificate
|
|
Finished Products
|
Serviette Tissue
|
|
Printing unit
|
1-3 colors as per requirement
|
|
Embossing unit
|
Full or border pattern as per requirement
|
|
Parent roll diameter
|
1200mm
|
|
Parent roll core inner diameter
|
76.2mm
|
|
Installed power
|
4.5KW (380V 50HZ 3Phases)
|
|
Speed
|
600 sheets/min
|
|
Machine weight
|
1000KG
|
|
Certification
|
CE
|
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
