Quick Details
-
Voltage:
-
custom
-
Dimension(L*W*H):
-
1200X800X1750
-
Weight (KG):
-
600
-
Power (kW):
-
3
-
Model:
-
FG500
-
Table Diameter:
-
450mm
-
The Max diameter of repairing Flywheel:
-
500mm
-
The Max Distance from spindle to table:
-
200mm
-
Rotational Speed of Grinding wheel:
-
2800r/min
-
The rotational speed of table:
-
17/34r/min
-
The motor of grinding wheel:
-
3 kw/380V/50HZ
-
Cooling pump:
-
0.12KW
-
Dimension:
-
1200x800x1750 mm
-
Weight:
-
600 kg
-
Certification:
-
ISO
Quick Details
-
Wheel Size(mm):
-
125*45*32
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SOSEN
-
Voltage:
-
custom
-
Dimension(L*W*H):
-
1200X800X1750
-
Weight (KG):
-
600
-
Power (kW):
-
3
-
Model:
-
FG500
-
Table Diameter:
-
450mm
-
The Max diameter of repairing Flywheel:
-
500mm
-
The Max Distance from spindle to table:
-
200mm
-
Rotational Speed of Grinding wheel:
-
2800r/min
-
The rotational speed of table:
-
17/34r/min
-
The motor of grinding wheel:
-
3 kw/380V/50HZ
-
Cooling pump:
-
0.12KW
-
Dimension:
-
1200x800x1750 mm
-
Weight:
-
600 kg
-
Certification:
-
ISO
Products Description

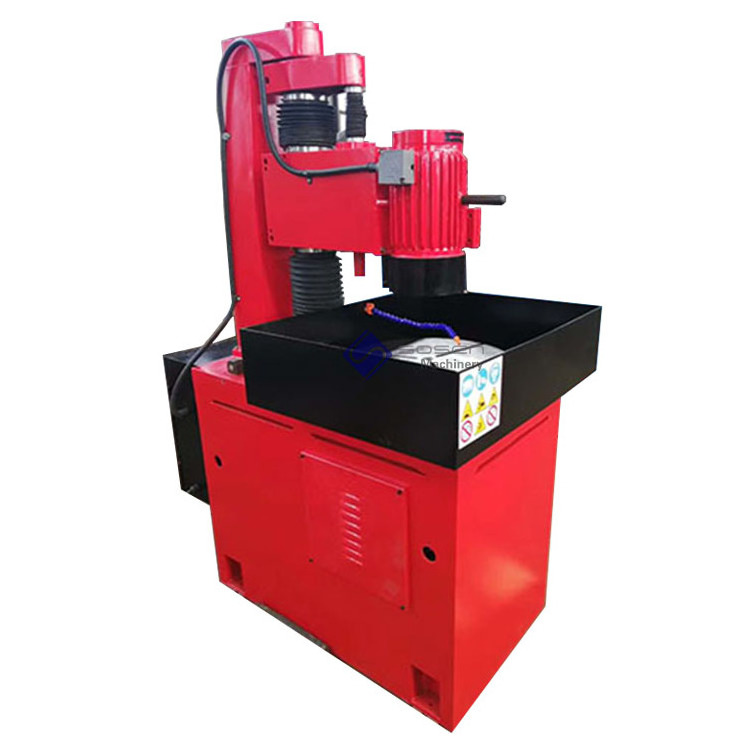

Engine flywheel and clutch disc repair grinder fg500
Features:
Regrinding the automobile engine flywheel disc, clutch friction plate in repaire automobile maintenance & repair service.
Model
|
FG500
|
Table Diameter
|
450mm
|
The Max diameter of repairing Flywheel
|
500 mm
|
The Max Distance from spindle to table
|
200mm
|
Rotational Speed of Grinding wheel
|
2800r/min
|
The rotational speed of table
|
17/34r/min
|
The motor of grinding wheel
|
3 kw/400V/50HZ
|
The motor of table
|
1400/700r/min 0.4/0.22KW/400V/50HZ
|
Cooling pump
|
0.12KW
|
Overall dimensions
|
1200X800X1750(mm)
|
