Quick Details
-
Brand Name:
-
Egood
-
Model Number:
-
100#
-
Name:
-
Office partition,office glass partition, glass office partition
-
Style:
-
100 series panoramic glass partition
-
Glass Material:
-
Temperde Glass, Frosted glass, super white glass, etc.
-
Panel thickness:
-
100mm
-
Installation:
-
Modular and pre-assemble
-
Finish:
-
Glass or wooden finish
-
Sound isolation:
-
STC 38-42 db
-
Layers:
-
Single / double glass
-
Built-in doors:
-
Single glass and double glazed doors, solid doors
-
Glass thickness:
-
12 Mm
Quick Details
-
Application:
-
Home Office, Dining, Hotel, Office Building, Hospital, School, Workshop, Gym, Office, Meeting room, Indoor, Hotel corridor, Showroom, VIP reception area
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Egood
-
Model Number:
-
100#
-
Name:
-
Office partition,office glass partition, glass office partition
-
Style:
-
100 series panoramic glass partition
-
Glass Material:
-
Temperde Glass, Frosted glass, super white glass, etc.
-
Panel thickness:
-
100mm
-
Installation:
-
Modular and pre-assemble
-
Finish:
-
Glass or wooden finish
-
Sound isolation:
-
STC 38-42 db
-
Layers:
-
Single / double glass
-
Built-in doors:
-
Single glass and double glazed doors, solid doors
-
Glass thickness:
-
12 Mm

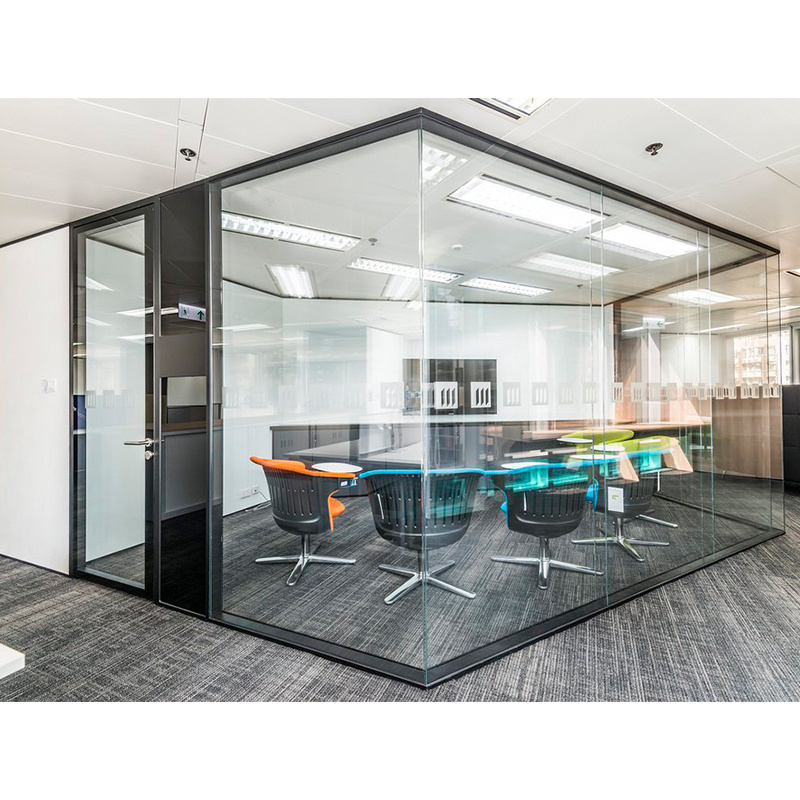

When the architecture of a building promotes lightness and space and the function of the room requires a minimalist partition solution, frameless series glass partition system provides the answer.
With the glazing held in a perimeter frame with no need for vertical aluminum framing, a transparent and open room is created. Aluminum profiles with powder coated or anodized finishes are serving as horizontal and vertical connections to the building structure, glass and glass joint by special adhesive.
1) Clean lines and visual transparency
2) Flush single or double glazing
3) Frameless structural glazing construction method
4) Glass and glass joint by special adhesive
5) Wall thickness 100 mm, flush with solid wall and door elements
6) Venetian blinds can be centrally integrated in double-glazing cavity
7) Adjustable accessories in base frame for leveling allowance
8) Sound insulation test certificates for glass wall STC up to 42 dB
|
Design features
|
Panoramic glass partition system
|
|
Series
|
100 series panoramic glass partition
|
|
Layers
|
Single/double glass
|
|
Glass thickness
|
12mm
|
|
Application
|
Office and conference room
|
|
Panel thickness
|
100mm
|
|
Built-in doors
|
Single glass and double glazed doors, solid doors
|
|
View
|
Transparent, colored or frosted glass, blinds intergrated between the glass panels
|
|
Noise reduction coefficient
|
STC 38-42 db
|
|
Door Accessories
|
Electronic lock available
|
- Business office field: office building, co-working, core barrel parapet, office partition ......
- Banking and finance: bank headquarters or branches, investment companies, VIP reception area ......
- Industrial plant: production workshop, office building, workshop R&D department ......
- Medical and pension field: hospital corridor, operating theatre, inpatient department, laboratory ......
- Automotive industry: car 4S sales outlets, showrooms, VIP reception area ......
- Hotel flats: hotel corridors, hotel housing, joint flats ......
- Public buildings: schools, libraries, high-speed railway stations, bus stations, airports ......
- Large buildings: conference halls, performance halls, cinemas, stadiums ......
FAQ
1. Is EGOOD trading company or factory?
1. Is EGOOD trading company or factory?
Yes, we are factory located in FOSHAN city
2. What’s the price for office glass partition?
We calculate the price by square meter , however, it has a variation in price for every single project. Four key factors influence pricing :
1) Material & design Selection;
2) Hardware choice;
3) Partition width & height
4) Acoustic performance requirement.
3. What materials can be selected for office glass partition?
We have different types with single / double glazed or solid panels, glass can be clear tempered glass, frosted glass, painting glass, smart glass etc..Solid materials can be melamine laminate, HPL, Aluminum board, Steel plate.
4. How easy is it to install or remove a office glass partition ?
It’s 100% removable and reusable. All modular parts will be pre-assembled in our factory, what you need to to is follow sequence to fix materials over flooring and under gypsum ceiling . We have detailed installation video from A to Z, we can also provide supervisor in site to install if you need.
5. How do they compare to drywall?
1) Office glass partition systems are more cost-effect
2) Install easier and more faster than drywall.
3) Panels can be removed and reconfigured to fit other areas.
4)Provide the better Sound Transmission Class ratings than drywall.
5) Noble and elegant appearance by various design
6. How do you pack and deliver?
Profile, hardware and glass are packed separately by using paper carton, strong pallet and plywood case.Shipping, courier and airplane are optional according to your budget and timing.
7. Do you get any other products?
Yes.we get solid movable partition wall.movable single alazed or double alazed with mechanism seal, pivot glass door, soundproof cabin
