Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUESHUN
-
Model Number:
-
LA
-
IP level:
-
IP65
-
Product name:
-
Matel Push Button Switch
-
Color:
-
Red Yellow Green Blue White
-
Operation type:
-
Self-locking
-
Material:
-
Stainless Steel
-
Function:
-
ON-0FF
-
Mounting Hole Size:
-
12mm
-
Head shape:
-
Ball head
-
Mechanical Life:
-
1000000 Times
-
Electric Life:
-
1000000times
-
Terminal type:
-
2 Pin Terminals
Quick Details
-
Protection Level:
-
IK10
-
Max. Current:
-
3A
-
Max. Voltage:
-
220V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUESHUN
-
Model Number:
-
LA
-
IP level:
-
IP65
-
Product name:
-
Matel Push Button Switch
-
Color:
-
Red Yellow Green Blue White
-
Operation type:
-
Self-locking
-
Material:
-
Stainless Steel
-
Function:
-
ON-0FF
-
Mounting Hole Size:
-
12mm
-
Head shape:
-
Ball head
-
Mechanical Life:
-
1000000 Times
-
Electric Life:
-
1000000times
-
Terminal type:
-
2 Pin Terminals
Product Description
|
PRODUCT FEATURES
|
|
|
|
Install Diameter
|
12mm
|
|
|
Operation Type
|
Momentary or Latching
|
|
|
Switch Combination
|
1NO
|
|
|
Head Shape
|
Ball Round Head
|
|
|
Terminal Type
|
2 PIN TERNINAL
|
|
|
Panel Thickness
|
1-10mm
|
|
|
Operating Distance
|
About 2.5mm
|
|
|
PRODUCT MATERIALS
|
|
|
|
Body Material
|
Stainless Steel
|
|
|
Button Material
|
Stainless Steel
|
|
|
Base Material
|
PBT
|
|
|
Contact Material
|
Silver Alloy
|
|
|
LED SPECIFICATIONS
|
|
|
|
LED Type
|
Annular LED
|
|
|
LED Color
|
Red / Green / Yellow / Blue/ White
|
|
|
LED Voltage
|
3V / 6V / 12V / 24V / 36V / 110V / 220V
|
|
|
ELECTRICAL SPECIFICATIONS
|
|
|
|
Max Switch Rating
|
3A / 250V AC/ DC
|
|
|
Contact Resistance
|
≤ 50mΩ
|
|
|
Insulation Resistance
|
≥ 10000mΩ
|
|
|
Dielectric Strength
|
2000VAC
|
|
|
Mechanical Life
|
More than 1000,000 cycles
|
|
|
Electrical Life
|
More than 100,000 cycles
|
|
|
ENVIRONMENTAL SPECIFICATIONS
|
|
|
|
IP Degree
|
IP 65
|
|
|
Operation Temperature
|
-25℃～+55℃
|
|
|
Operating Pressure
|
About 3-5N
|
|
|
Torque
|
5-14Nm
|
|

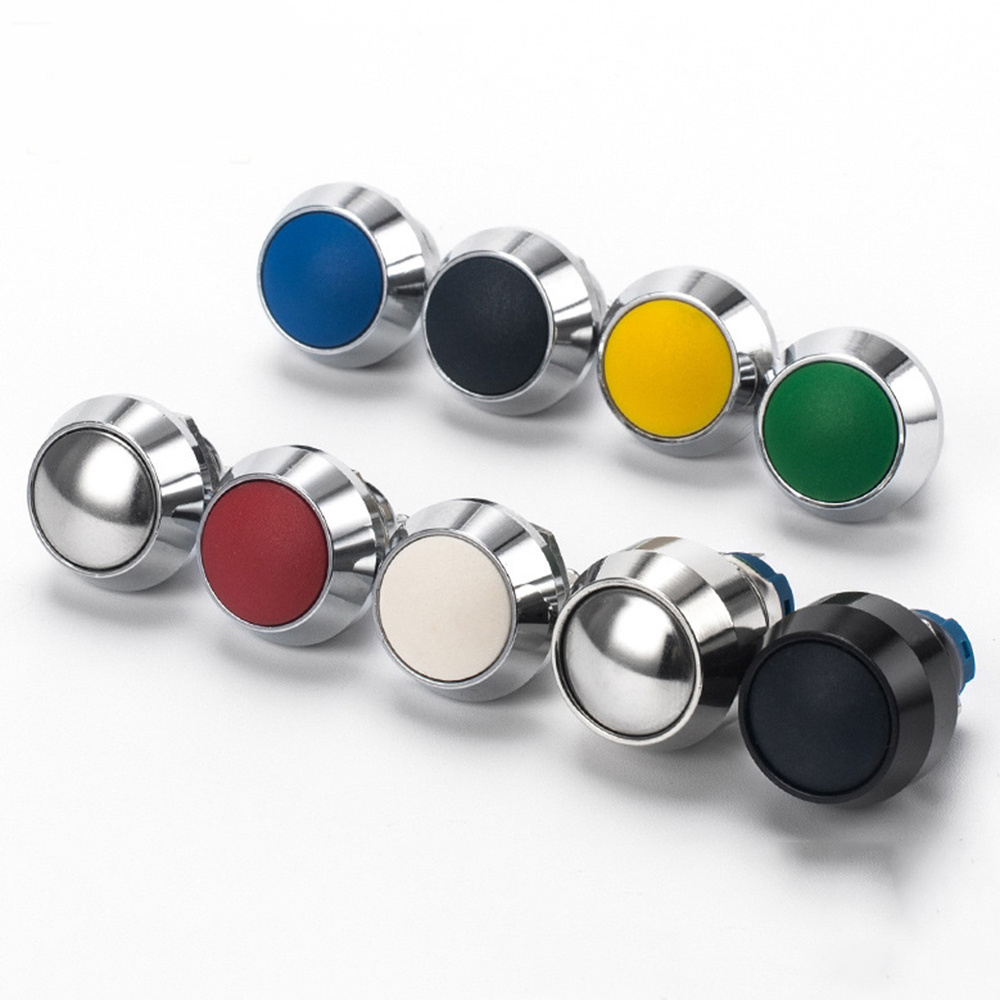

Product Show
Product Size
LED color
