Quick Details
-
Brand Name:
-
PYM
-
Application:
-
pp pe pvc abs.etc
-
Production Capacity (kg/h):
-
250 - 500
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4000*1500*1800
-
Weight (T):
-
3
-
Applicable Industries:
-
plastic machine
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
other name:
-
crushing and washing line
-
Production Capacity:
-
250-500kg/hr
-
Processed material:
-
PE PP PET HDPE LDPE etc
-
Screw Rotary Speed:
-
according to model of recycling machine
-
Quality control:
-
test before delivery
-
Weight:
-
3200kg
-
Certification:
-
CE BV TUV
Quick Details
-
Machine Type:
-
PP PE Film Washing Line
-
Max.Production Capacity (kg/h):
-
500
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PYM
-
Application:
-
pp pe pvc abs.etc
-
Production Capacity (kg/h):
-
250 - 500
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
4000*1500*1800
-
Weight (T):
-
3
-
Applicable Industries:
-
plastic machine
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
other name:
-
crushing and washing line
-
Production Capacity:
-
250-500kg/hr
-
Processed material:
-
PE PP PET HDPE LDPE etc
-
Screw Rotary Speed:
-
according to model of recycling machine
-
Quality control:
-
test before delivery
-
Weight:
-
3200kg
-
Certification:
-
CE BV TUV
Video Description

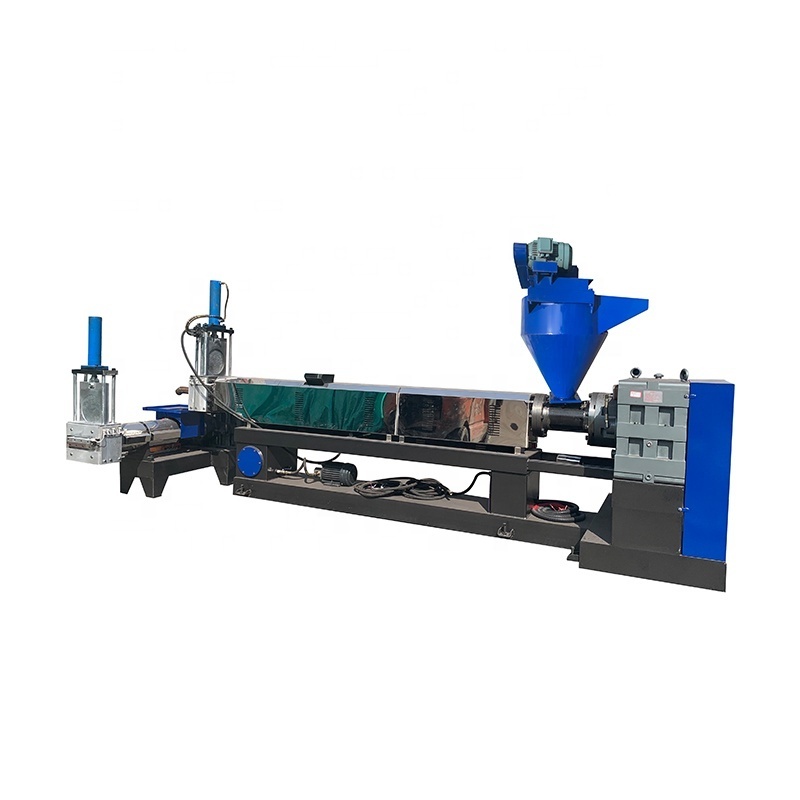

Product Description
|
1.
|
Force Feeder
|
|
2.
|
Mian Extruder
|
|
3.
|
Vice Extruder
|
|
4.
|
Water tank
|
|
5.
|
Stand cooler
|
|
6.
|
Cutting Machine
|
1.Recycling machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE and PP, etc. Its
equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control.
2.The granulating crusher uses adjustable speed motor, pelleting with and extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance and favorable economic benefit.
3. It adopt latest advanced technology , design with simple structure and easy to operate,high production capacity, economy energy consumption, reliable performance .
4.The material component of each machine on our products with high quality ,ensures whole washing line with long service life time.
2.The granulating crusher uses adjustable speed motor, pelleting with and extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance and favorable economic benefit.
3. It adopt latest advanced technology , design with simple structure and easy to operate,high production capacity, economy energy consumption, reliable performance .
4.The material component of each machine on our products with high quality ,ensures whole washing line with long service life time.
1. Force Feeder
Suit for PP PE crushed film feedingHelpful to soft material go into the screw and barrel
With inverter to change the feeding speed
Useful to hard scraps
With inverter to change the feeding speed
Useful to hard scraps
2.Screen Changer
Used to filter out foreign particles and impurities when plasticized materials flow through the screen
Specification
|
Model
|
SJ-B90
|
SJ-B100
|
SJ-B110
|
SJ-B120
|
|
Type Diameter of Screw Stem
|
φ90
|
φ100
|
φ110
|
φ120
|
|
Major Diameter Ratio of Screw Stem
|
L/D 20:1 -22:1
|
L/D 20:1 -22:1
|
L/D 20:1 -22:1
|
L/D 20:1 -22:1
|
|
Rational Speed of Screw Stem
|
10-100r/min
|
10-100r/min
|
10-100r/min
|
10-100r/min
|
|
Main Motor Power
|
22kw
|
30kw
|
37kw
|
45kw
|
|
Output
|
68kg/h
|
95kg/h
|
120kg/h
|
135kg/h
|
|
Weight of overall(kg)
|
2600kg
|
2800kg
|
3000kg
|
3200kg
|
|
Cover dimensions (l×w×h) (mm)
|
4000×1500×1800
|
4000×1500×1800
|
4000×1500×1800
|
4000×1500×1800
|
