Quick Details
-
Use:
-
mowing weeds
-
Place of Origin:
-
China
-
Brand Name:
-
AWON
-
Transmission:
-
Gearbox transmission
-
Color:
-
Black and green or upon your request
-
Main Market:
-
Europe,North and South American,Australia
-
PTO Speed:
-
540r/min
-
Power Required:
-
50-70HP
-
Working width:
-
1650 mm
-
ODM;OEM:
-
provided
-
Linkage:
-
Three Point Mounted
-
Drive type:
-
Tractor Hydraulic
-
Usage:
-
Agriculture Machiney Farm Equipments
Quick Details
-
Weight (KG):
-
395
-
Marketing Type:
-
High productive
-
Type:
-
Flail mower
-
Use:
-
mowing weeds
-
Place of Origin:
-
China
-
Brand Name:
-
AWON
-
Transmission:
-
Gearbox transmission
-
Color:
-
Black and green or upon your request
-
Main Market:
-
Europe,North and South American,Australia
-
PTO Speed:
-
540r/min
-
Power Required:
-
50-70HP
-
Working width:
-
1650 mm
-
ODM;OEM:
-
provided
-
Linkage:
-
Three Point Mounted
-
Drive type:
-
Tractor Hydraulic
-
Usage:
-
Agriculture Machiney Farm Equipments
Products Description

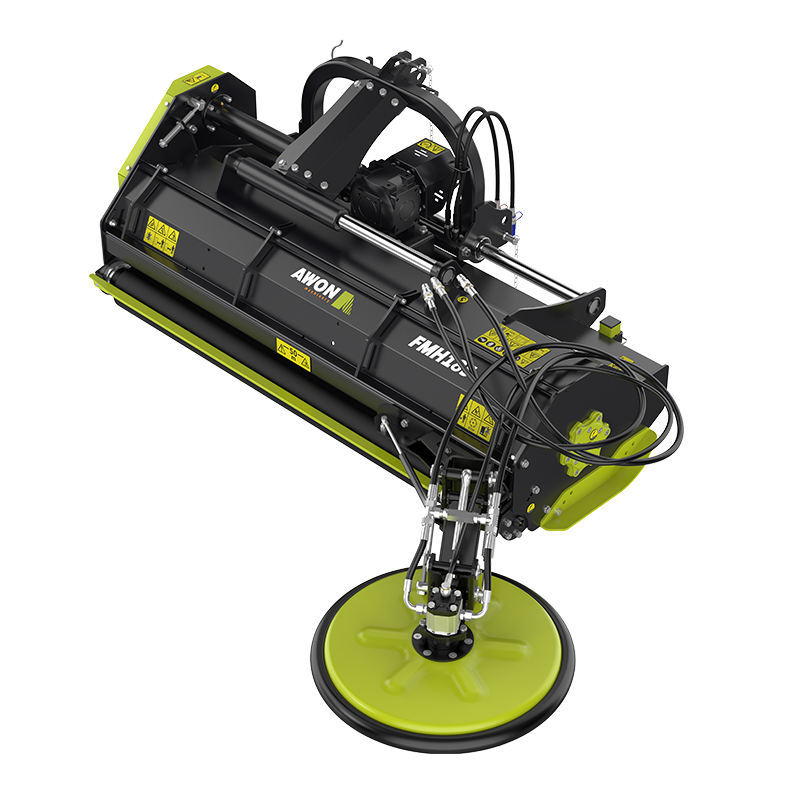

Awon Standard Flail Mower
FM series are rear mounted,PTO driven flail mowers for tractors. 14 models in total,working width varies from 1,000 to 3,000mm,power demand 25-120HP.FM series are designed for general maintenance of lawn,park,orchard,meadow and weed cut for undeveloped areas. The mowers cut the grass and spread it properly crumbled along the whole width of the cut surface.It enables forming a natural swath and plant offcut mineralization.
Standard Equipment
Shaft with double flail spiral• Overrunning clutch integrated with gearbox• Mechanical safety breakaway device • Mowing height adjustment with ground following bar • Wide-angle PTO
Product Features
* Mounting on 3-point hitch at the rear of the tractor linkage Cat.1,2
* Lightweight, compact design and at the same time high efficiency ensure economical use.
* Gearbox with a freewheel and input to 540 rpm for safety and easy use of the machine.
* The belt drive ensures quiet operation of the machine.
* The wide range of working widths allows the machine to be adapted to the working conditions and the type of terrain
* The body made of extremely durable and wear-resistant steel significantly extends the service life of the machine.
* Balanced weight and precise helical arrangement of flail knives provide effective operation in difficult conditions
* Easy, on-site, flail knife replacement
* Low noise operation
* Perfect ground following and even cutting height
* Metal plate guards at the front and at the back provide effective protection against stones
* Bearing protection and lubrication system
* PTO shaft as standard
* Housing can be hydraulic lifted to leave the shredded materials back to the field
* Lightweight, compact design and at the same time high efficiency ensure economical use.
* Gearbox with a freewheel and input to 540 rpm for safety and easy use of the machine.
* The belt drive ensures quiet operation of the machine.
* The wide range of working widths allows the machine to be adapted to the working conditions and the type of terrain
* The body made of extremely durable and wear-resistant steel significantly extends the service life of the machine.
* Balanced weight and precise helical arrangement of flail knives provide effective operation in difficult conditions
* Easy, on-site, flail knife replacement
* Low noise operation
* Perfect ground following and even cutting height
* Metal plate guards at the front and at the back provide effective protection against stones
* Bearing protection and lubrication system
* PTO shaft as standard
* Housing can be hydraulic lifted to leave the shredded materials back to the field
Automatically Belt-tension
Heavy-duty forged blade
Balanced weight and precise helical arrangement
Product Parameters
|
Model
|
FM165
|
FM185
|
FM205
|
|
Dimension(mm)
|
1820*1022*820
|
2020*1022*820
|
2220*1022*820
|
|
Weight(Kg)
|
395
|
420
|
435
|
|
Cutting Width(mm)
|
1650
|
1850
|
2050
|
|
PTO Input Speed
|
540
|
540
|
540
|
|
Number of blades
|
18
|
22
|
24
|
|
Power required(HP)
|
50-70
|
50-70
|
50-70
|
