Quick Details
-
Weight:
-
4500
-
Power (kW):
-
5.5
-
Application:
-
Tire Rereading Line
-
Product name:
-
Curing Chamber
-
Color:
-
Blue/Green/Customizable
-
Capacity:
-
8/12/16/24tire
-
Heating Mode:
-
Electricity/Steam/Oil
-
After-sales Service:
-
Video Technical Support
-
Certificate:
-
CE/ISO
-
Marketing Type:
-
New Product 2022
Quick Details
-
Place of Origin:
-
Qingdao,China
-
Brand Name:
-
XinRuiChen
-
Voltage:
-
220V/380V/Custom
-
Weight:
-
4500
-
Power (kW):
-
5.5
-
Application:
-
Tire Rereading Line
-
Product name:
-
Curing Chamber
-
Color:
-
Blue/Green/Customizable
-
Capacity:
-
8/12/16/24tire
-
Heating Mode:
-
Electricity/Steam/Oil
-
After-sales Service:
-
Video Technical Support
-
Certificate:
-
CE/ISO
-
Marketing Type:
-
New Product 2022

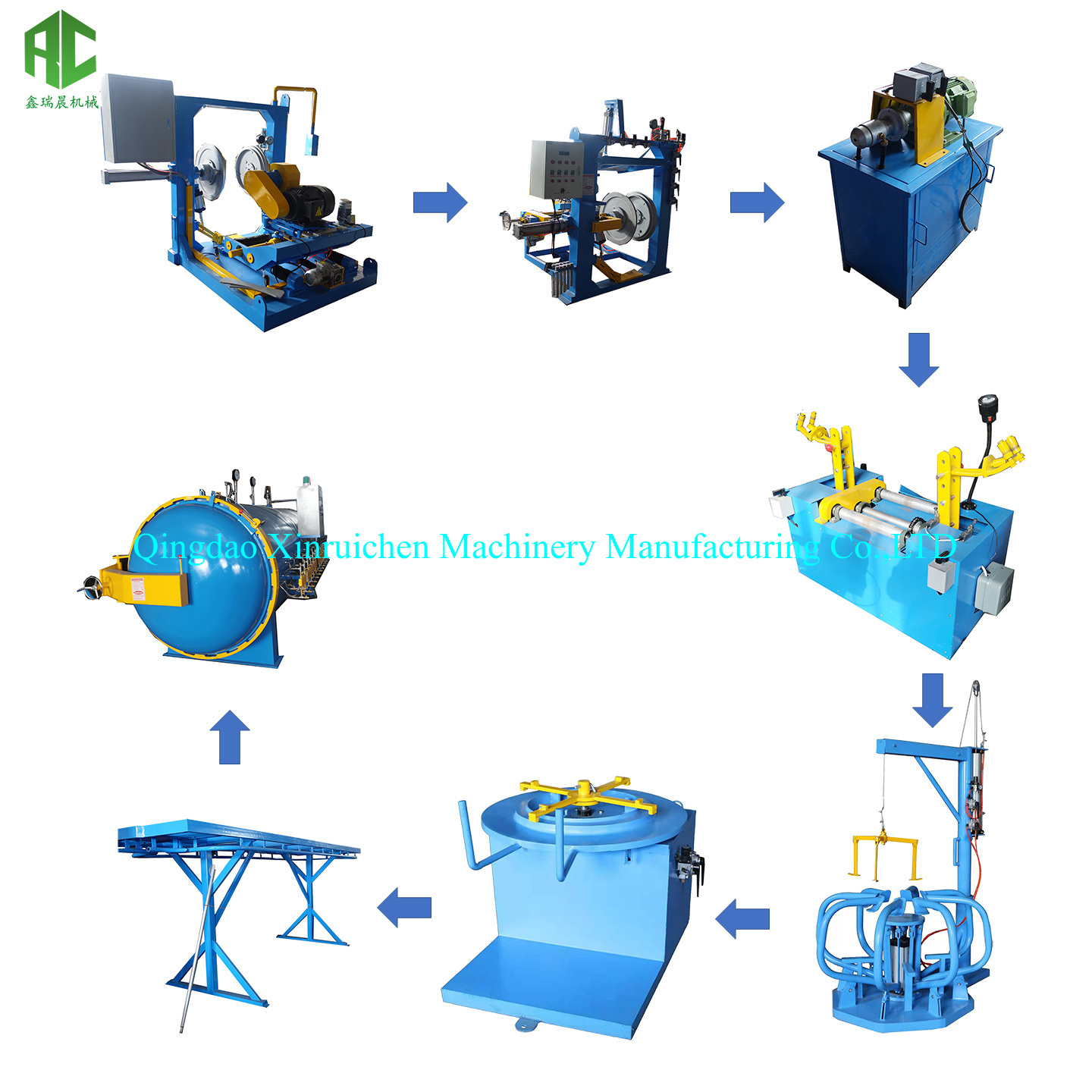

Truck Tyre Retreading Machines
In the pre-cured technology, the tread is supplied to the retreading factory cured, with the tread pattern already in place. The treads are supplied in rolls of various lengths (typically 3.5 to 10 meters in length), or as rings that can be stretched onto the casing. In the application of both pre-cured methods, a bonding material, the cushion gum, is applied to the tread or the casing prior to the application of the tread.
|
Tyre number 12.00 R20 |
12 |
14 |
16 |
18 |
22 |
25 |
|
Theoretical steam consumptionkcal/h |
43000 |
52000 |
60000 |
65000 |
70000 |
90000 |
|
Electric hot-tube power--electric kw |
50 |
60 |
70 |
75 |
80 |
100 |
|
Electric hot-tube power--steam kw |
8 |
8 |
9 |
9 |
12.5 |
12.5 |
|
Fan motor power kw |
4 |
4 |
5 |
5 |
11 |
11 |
|
Width--uncovered mm |
5900 |
6600 |
7400 |
7800 |
8900 |
9900 |
|
Width--covered mm |
5100 |
5800 |
6600 |
7100 |
8100 |
9100 |
|
Practicable work width mm |
3600 |
4200 |
5000 |
5500 |
6800 |
7500 |
|
H eight mm |
2200 |
|||||
|
W eight t |
4.6 |
4.9 |
5.3 |
5.52 |
5.9 |
6.4 |
|
Designed pressure MPa |
0.9 |
|||||
|
Maximum pressure MPa |
0.8 |
|||||
|
Experimental pressure MPa |
1.1 |
|||||
|
Designed temperature(c) |
180 |
|||||
|
Compressed air source MPa |
0.8 |
|||||
If you also need raw materials for retreading tires,please get solution with this link.
Q: How to send your enquiry? Kindly tell me the answer...
-1) How many tires do you retread each time? What's your main tire size?
-2) Leave me your WhasApp,Skype or WeChat.
