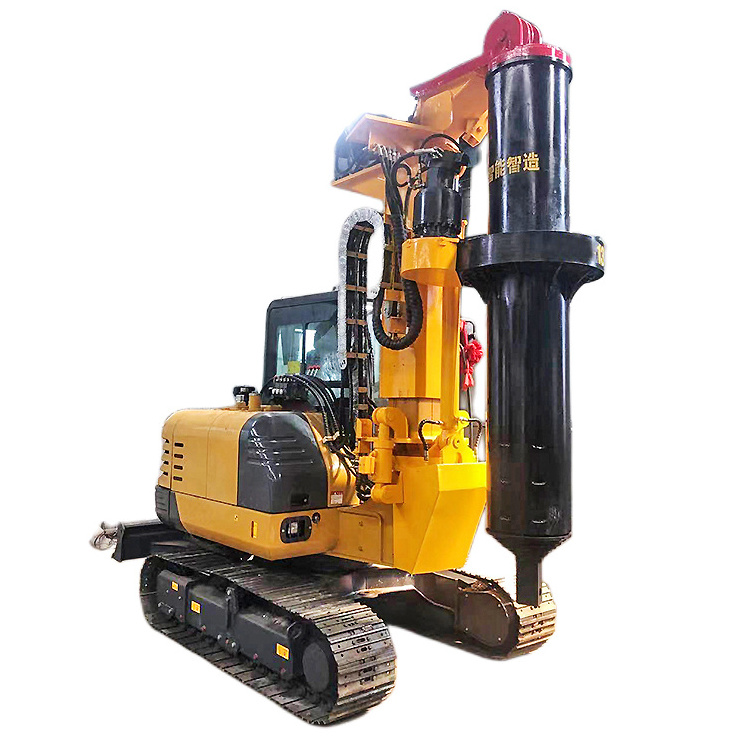

Mobile Concrete Pile Press Driving Machine Hydraulic Helical Screw Piles Work Used Rotary drilling Piling Rig Machine

Mobile Concrete Pile Press Driving Machine Hydraulic Helical Screw Piles Work Used Rotary drilling Piling Rig Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $14980

≥10 Sets

US $10000

≥20 Sets

US $8000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Henan, China

Brand Name:: DS

Weight:: 22000 kg

Dimension(L*W*H):: 8600*2300*3400 mm

Product name:: Pile Drilling Machine

Application:: Pile Driving

Max. output torque:: 80 kN .m

System pressure:: 35 Mpa

Type:: Hydraulic Sheet Pile Driver

Usage:: Pressing Pile

Operating principle:: Hydraulic Static Pressure Pile Driver

Suitable pile:: Concrete Precast Pile

Advantages:: Fast Pile Driving Speed

Keywords:: Pile Driver

Quick Details

Marketing Type:: New Product 2022

Efficiency:: high efficiency

Piling Speed(m/min):: 17-40

Place of Origin:: Henan, China

Brand Name:: DS

Weight:: 22000 kg

Dimension(L*W*H):: 8600*2300*3400 mm

Product name:: Pile Drilling Machine

Application:: Pile Driving

Max. output torque:: 80 kN .m

System pressure:: 35 Mpa

Type:: Hydraulic Sheet Pile Driver

Usage:: Pressing Pile

Operating principle:: Hydraulic Static Pressure Pile Driver

Suitable pile:: Concrete Precast Pile

Advantages:: Fast Pile Driving Speed

Keywords:: Pile Driver

Hydraulic rotary press pile driver

Product Description

Brief Introduction

DS series pilling machine lock rod rotary drilling rig uses hydraulic crawler type telescopic chassis, self-propelled folding drill collar, telescopic drill pipe and other technical applications. It is a construction machine suitable for hole forming in building foundation engineering. It is mainly suitable for soil layer construction such as sand, cohesive soil and silty soil. It is widely used in various foundation construction such as cast-in-place pile, continuous wall and foundation reinforcement.

Description			DS-15	DS-20	DS-25	DS-30
Max. Drilling Diameter			1800 mm	1800 mm	1800 mm	1800 mm
Max. Drilling Depth			15 m	20 m	25 m	30 m
Rotary Drive	Max. output torque		80 kN .m	80 kN .m	80 kN .m	80 kN .m
Rotary Drive	Rotary speed		17-40 r/min	17-40 r/min	17-40 r/min	17-40 r/min
Hydraulic System	System pressure		35 Mpa	35 Mpa	35 Mpa	35 Mpa
Hydraulic System	Oil Tank capacity		380 L	400 L	425 L	450 L
Mast	Height of mast		10,000 mm	10,000 mm	11,500 mm	12,500 mm
	Inclination left/right		2-3 °	2-3 °	2-3 °	2-3 °
	Inclination front		5 °	5 °	5 °	5 °
Overall Drilling Weight			22T	24T	26T	28T
Dimension		Working (LW H) Transportation condition (LWH)	480023009600 860023003400 (mm)	5700260010500 961026003500 (mm)	5700260011500 1010026003500 (mm)	6000260012500 1160026003500 (mm)

Machine performance

1. Adopting the upper guide frame structure to ensure the verticality of the drill pipe and the ground, the construction is more convenient, the construction efficiency is improved, and the safety is increased.
2. The patented structure of the power head is reasonable in design, reliable in lubrication, powerful in power, cost-saving, and not easy to damage, easy to repair.
3. The folding mast structure is adopted, the structure is simple and exquisite, the durability is good, the stability of the whole machine is good, the cost is saved and the maintenance is more convenient.
Main winch: The original imported hydraulic motor is sensitive and can be freely lowered. The lifting speed can reach 82m/min, which greatly improves the construction efficiency. The main hoist is placed in the right front of the operator, so that the operator can observe the working condition of the main hoist at any time to avoid the disorder of the rope caused by other factors.
4. Configure the national standard high-power external power system, the national inspection-free raw materials, supporting parts, the quality is more secure;
