Product name:
-
tilt switch
-
product number:
-
TS-IR01
-
Application:
-
Home Automation
-
Material:
-
Plastic
-
Color:
-
Black
-
Operating Temperature:
-
-20~+60°C
-
Storage Temperature:
-
-40~+80°C
-
Working Life:
-
50000h

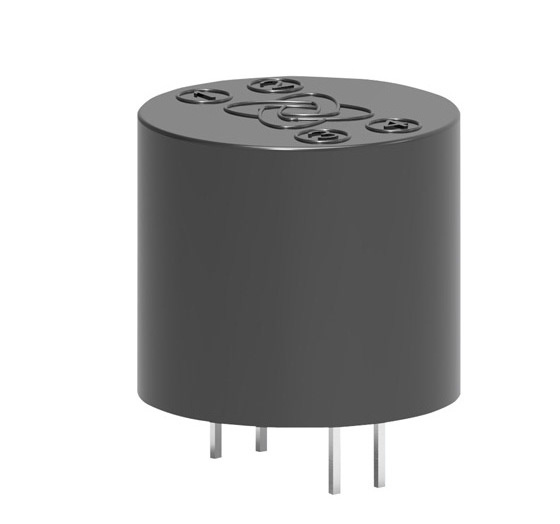

TS-IR01 360 degree heater tilt switch dump switch tip over switch neutral safety switch
Application:
Heaters,
Electrical Irons
Fans,
Air Purifiers
Humidifiers,
Cooling Fans,
Air Conditions or other appliances that need to be protected from tipping.
Product features:
1. High precision in detecting tipping angle
2. Fast response time
3. High sensitivity
4. Small in size and low in cost
5. Satisfying the requirements in Safety Standards
6. This product itself will remain within RoHS compliant version
| Absolute maximum ratings (Ta=25℃) | |||||||
| Parameter | Symbol | Limit | Units | ||||
| Input(IR) | Forward Current | I F | 20 | mA | |||
| Reverse Voltage | V R | 5 | V | ||||
| Power Dissipation | P D | 70 | mW | ||||
| Output(Phototransistor) | C-E Voltage | V CEO | 30 | V | |||
| E-C Voltage | V ECO | 4.5 | V | ||||
| Collector current | I C r | 30 | mA | ||||
| Power Dissipation | P D | 80 | mW | ||||
| Operating Temperature | Topr | -20~+60 | °C | ||||
| Storage Temperature | Tstg | −40~+80 | °C | ||||
| Working Life | Life | 50000 | h | ||||
| Lead soldering Temperature | Tsol | 260±5 | ° C | ||||
| Electro-Optical Characteristics (Ta=25℃) | |||||||
| Parameter | Symbol | Min. | Typ. | Max. | Units | Conditions | |
| Input | Forward Voltage | V | -- | 1.2 | 1.6 | V | IF=20mA |
| Reverse Current | I R | -- | -- | 10 | uA | Vr=5V | |
| Peak wavelength | λ | -- | 940 | -- | nm | ||
| Output | Dark Current | I CEO | -- | 1 | 100 | nA | Vc E =10V |
| C-E Saturation Voltage | V CE(SAT) | -- | -- | 0.4 | V | IC=2mA,Ee=1mW/cm2 | |
| Transfer Characteristics | Collector Current | I C(ON) | 0.3 | ---- | -- | mA | VCE=5V,IF=10mA |
| Leakage Current | I CEOD | -- | -- | 1 | uA | VCE=5V,IF=10mA | |
| Rise time | Tr | -- | 15 | -- | u sec |
VCE=2V
IC=1mA RL=1KΩ |
|
| Fall time | Tf | -- | 15 | -- | u sec | ||
