Quick Details
-
Color:
-
Silver; Customized
-
Material:
-
Heavy gauge steel or 304 stainless steel
-
Suitable Door Type:
-
Wooden Door,metal doors
-
Suitable for:
-
Fire protection,smoke ventilation
-
Application:
-
Single leaf door
-
Push Bar Length:
-
500mm
-
Total Length:
-
1045mm
-
Upper and lower tube length:
-
900mm
-
Vertical Type:
-
Two locking points,dogging function
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DORRENHAUS
-

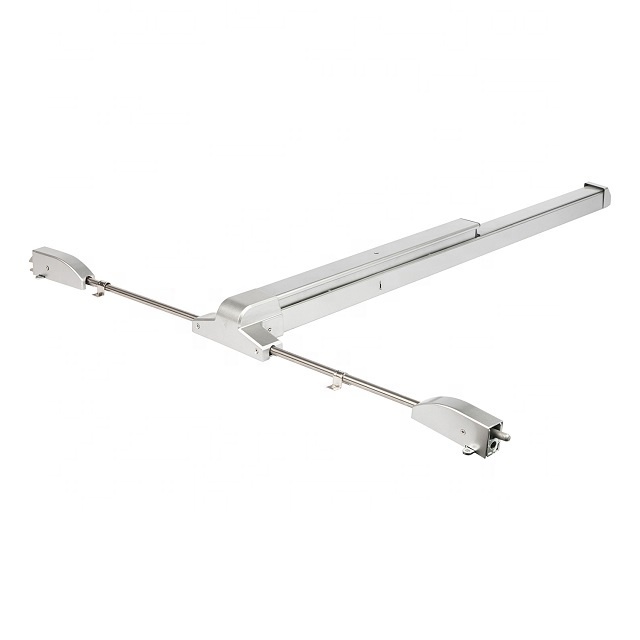

Product Name:
-
Door Lock
-
Color:
-
Silver; Customized
-
Material:
-
Heavy gauge steel or 304 stainless steel
-
Suitable Door Type:
-
Wooden Door,metal doors
-
Suitable for:
-
Fire protection,smoke ventilation
-
Application:
-
Single leaf door
-
Push Bar Length:
-
500mm
-
Total Length:
-
1045mm
-
Upper and lower tube length:
-
900mm
-
Vertical Type:
-
Two locking points,dogging function
STANDARD FEATURES
| Ø | Material : |
Aluminum cover,Iron
body,
SS tube
|
| Ø |
Push Bar Length:
|
500mm
|
| Ø |
Total Length:
|
1045mm
|
| Ø |
Doogging
:
|
Allen Key
|
| Ø |
Upper and lower tube
length:
|
900mm
|
| Ø |
Striker
:
|
Zinc
|
| Ø |
UL CODE
:
|
SA44924
|
| Ø |
Finish
:
|
Silver painted,customer request available
|
| Ø |
Lock Point:
|
2 |
| Ø |
Security Latch :
|
Non
|
| Ø |
Door width:
|
650mm-1070mm in normal,special size for customer
request
|
| Ø |
Door Height:
|
Standard Max Door Height 2160mm
|
| Ø |
Warranty:
|
3 Years
|
| Ø |
Certification:
|
UL305 Certificat
|
PRODUCT FEATURE
Ø Door Compatible & Lock - This push bar is suitable for door width between: 28"-50"(71-104cm), any metal or wood door acceptable. Also cuttable to suit small sized doors. To keep your safety, this panic bar adopts fire-proof lock and external lever, will do much help especially in emergency occasion
Ø Easy Lock - Under emergency circumstances, building crews and visitors are able to achieve easy and no-miss escape with light push (≤70N) with hand or any other body part.
Ø
Easy Installation - Fast to assemble, include push bar, roller latch, screws and English manual to guide. This panic exit device can be installed both at right hand and left hand
Ø
Good Quality - Constructed with thick steel, imported baking varnish craft, guarantee the durability and anti-rust after long time use. Able to resist strong external pull, trustworthy guardian for safety
Ø
Widely Application - Good push bar, ideal to use at: hotel, airport, apartment, shopping center, hospital, bank, office building, factory, recreational places etc. to protect people's safety at emergency occasions
