Quick Details
-
Type:
-
Fruit pulp machine
-
Voltage:
-
380v/50hz/3phase
-
Power:
-
4000
-
Weight:
-
500 KG
-
Dimension(L*W*H):
-
1200*800*1200mm
-
Year:
-
2020
-
Name:
-
Pulping machine for avocado
-
Function:
-
Crush fruit and Make fruit and vegetable pulp
-
Capacity:
-
2.5t/h(For tomato)
-
Drive type:
-
Motor and belt
-
Body material:
-
304SUS
-
Crusher:
-
With crusher function
-
Channel quantity:
-
1channel
-
Screen size:
-
0.3-15mm(0.6mm is usualy screen)
Quick Details
-
Marketing Type:
-
New Product
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TIANZE
-
Type:
-
Fruit pulp machine
-
Voltage:
-
380v/50hz/3phase
-
Power:
-
4000
-
Weight:
-
500 KG
-
Dimension(L*W*H):
-
1200*800*1200mm
-
Year:
-
2020
-
Name:
-
Pulping machine for avocado
-
Function:
-
Crush fruit and Make fruit and vegetable pulp
-
Capacity:
-
2.5t/h(For tomato)
-
Drive type:
-
Motor and belt
-
Body material:
-
304SUS
-
Crusher:
-
With crusher function
-
Channel quantity:
-
1channel
-
Screen size:
-
0.3-15mm(0.6mm is usualy screen)

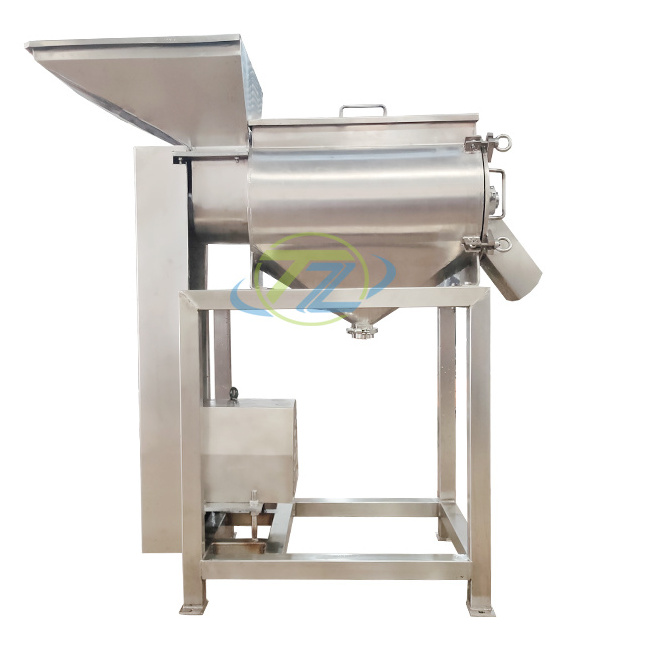

Introduction of Pulping machine for avocado
Fruit pulper is mainly used to crush and press fruit and vegetable to pulp,DJ type is single channel usually not Denucleated,MDJ type mainly has function of denucleated.According to different fruit,the pulp machine choose can be different,so if any requirement please tell me.
Application of Pulping machine for avocado
Tomato, kiwi, strawberry, apple, orange flesh, haw, jujube, grape, macaque peach, mulberry notes,wax berry, etc, and after precooking softening of haw, jujube,etc.Pulp machine can seperate fruit skin,core,seeds,also can cut vegetable,celery,etc.Seperate vegetable fiber from juice,also adapt mango and peach,coring and pulping.
Working principle of Pulping machine for avocado
when put fruit or vegetable in to the mouth,the fruit convey to the beating bar, with the beat ,material being crushed.Because of the centrifugal f orce ,juice and flesh through the screen hole in to next beating
(Screen hole according to core size),core being discharged by slag bade,so core and pulp being
seperated.Fruit pulp machine has single channel beater and double channel beater
When use to make tomato pulp ,just put in the tomato,it will crushed and blender it in the chamber,the pulp will discharge under and the residues will discharge at the end of fruit pulp machine.
When used to mango pulp making, if choose single channel beater,skin and flesh flow into buffer
tank,core discharge. If choose double channel denucleation beater ,first channel for removing core,second core for making pulp,full automatic seperate skin,core,residue;except the transmission part,are adopt 304stainless steel,sealer is food standard rubber.
Technical data of Pulping machine for avocado
|
Model |
Name |
Capacity(T/H) |
Power(KW) |
Dimension(mm) |
|
DJ - 0.5 |
Single beater |
0.12 (for tomato) |
4 |
1200 *80 0 *120 0 mm |
|
DJ - 2.5 |
Single beater |
2.5 (for tomato) |
5.5 |
1450*770*1523 mm |
|
DJ - 5 |
Single beater |
5 (for tomato) |
11 |
1 550 * 77 0 * 1530 mm |
|
DJ2- 0.24 |
Double beater |
0.24 (for tomato) |
6 |
820 * 1000 * 1350 mm |
|
DJ2-4.0 |
Double beater |
4.0 (for tomato) |
7.5 |
1535*1420*1533 |
|
MDJ2.5 |
Denucleated single beater |
1.5 (for mango) 2.5 (for tomato) |
4.0 |
1450*770*1650 |
|
MDJ2-4.0 |
Denucleated double beater |
1.8 (for mango) 4 (for tomato) |
7.5 |
1 370 * 1370 * 1800 mm |
|
MDJ2-5.0 |
Denucleated double beater |
3 (for mango) 5 (for tomato) |
15.0 |
1935*1650*1900 |
1.Fruit juice machine 2.Fruit juice machine with crusher
Other commercial and industrial reducer drive,slow speed fruit juice machine
Warmly welcome to visit our factory to see and test our Tomato pulp make machine.
In order to quote you more accuracy and effciency
1.Please tell us which model Fruit pulp extractor machine do you needed?
2.Which kind of material are you dealing with?
3.Do you need fruit crusher or just need screw press machine?
