Quick Details
-
Brand Name:
-
Yugong
-
Weight:
-
8000 kg
-
Dimension(L*W*H):
-
7900mm*2260mm*3100mm
-
Product Name:
-
Pile Driving Machine
-
Type:
-
Hydrualic
-
Application:
-
Pile Drilling
-
Usage:
-
Hydraulic Drilling Rig
-
Keywords:
-
Pile Driver
-
Advantages:
-
Fast Pile Driving Speed
Quick Details
-
Efficiency:
-
High Efficiency
-
Piling Speed(m/min):
-
3-6m/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong
-
Weight:
-
8000 kg
-
Dimension(L*W*H):
-
7900mm*2260mm*3100mm
-
Product Name:
-
Pile Driving Machine
-
Type:
-
Hydrualic
-
Application:
-
Pile Drilling
-
Usage:
-
Hydraulic Drilling Rig
-
Keywords:
-
Pile Driver
-
Advantages:
-
Fast Pile Driving Speed

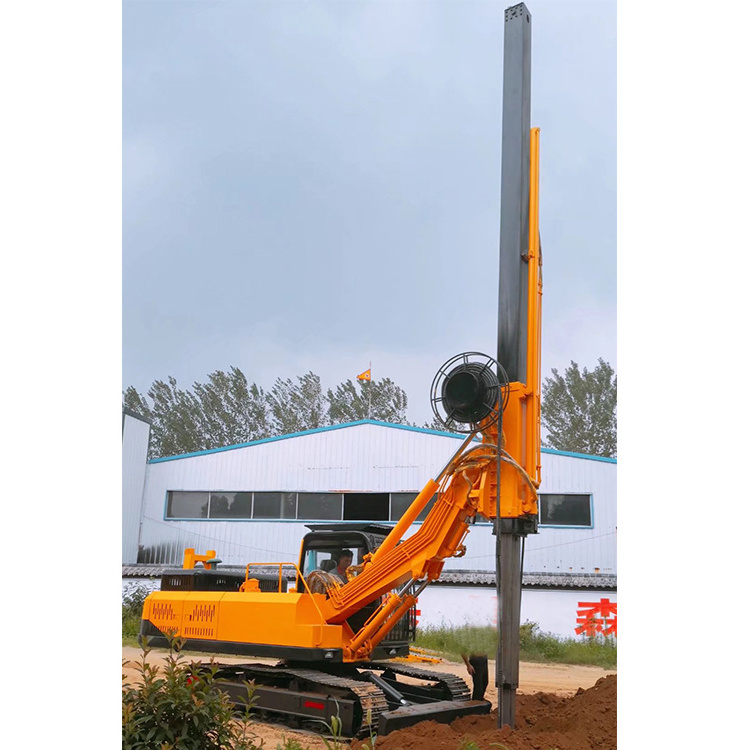

Rotary Drilling Rig
Rotary drilling rig has the advantages of flexible maneuverability, small tonnage, simple operation, 360-degree free rotation, wide application range, high construction efficiency, stable performance, ultra-fast piling speed, fast movement, convenient special field, small investment and fast return.
| Dimensions (mm) | 7900*2260*3100 |
| Vehicle mass (kg) | 8000 |
| Wheelbase (mm) | 3150 |
| Wheel base (mm) | Front 1400 After 1060 |
| Drilling depth (m) | 13 |
| Drilling diameter (mm) | 600-1600 |
| Rotation angle | 180 degree |
| Walking speed (km/h) | 50 |
| Gear pump model | CBJT2080 |
| Hydraulic system working pressure (mpa) | 20-25 |
| Hydraulic system displacement (ml/r) | 80 |
| engine model | 4108 |
| Engine power (kw) | 88 |
Feature:
1.Energy-efficient diesel engine.
2.Low vibration, low noise, low emissions.
3.Excellent fuel system.
4.Advanced cooling system.
5.Reliable hydraulic system.
6.Superior performance, easy maintenance.
1. Packaging:
Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
