Quick Details
-
Brand Name:
-
h3c
-
Model Number:
-

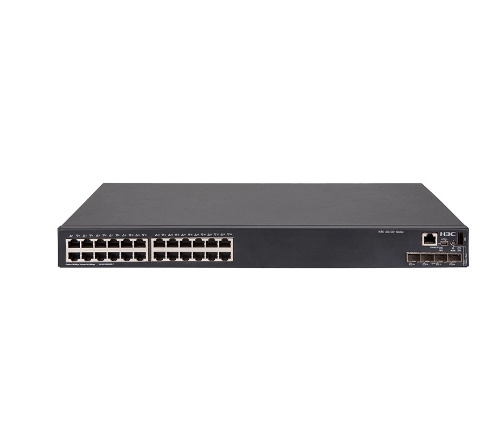

H3C S5130-30S-HI
-
Place of Origin:
-
Zhejiang, China
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
598Gbps/5.98Tbps
-
Brand Name:
-
h3c
-
Model Number:
-
H3C S5130-30S-HI
-
Place of Origin:
-
Zhejiang, China
Product Description
Specification
|
item
|
value
|
|
Private Mold
|
Yes
|
|
Products Status
|
Stock
|
|
Ports
|
2
|
|
Transmission Rate
|
10/100/1000Mbps
|
|
Function
|
LACP, POE, QoS, SNMP, VLAN Support
|
|
Communication Mode
|
Full-Duplex & Half-Duplex
|
|
Switch Capacity
|
598Gbps/5.98Tbps
|
|
Brand Name
|
h3c
|
|
Model Number
|
H3C S5130-30S-HI
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
|
|
In large and medium-sized enterprise park networks, the S5130-HI series Ethernet switches can serve as access switches, providing high-performance and high-capacity switching services, and supporting 10GE/40GE uplink interfaces, providing higher bandwidth for access devices. In addition, the core layer, aggregation layer, and high-performance access layer of the entire network all adopt H3C's innovative IRF2 (Intelligent Elastic Architecture) technology. While the original network topology remains unchanged, by virtualizing multiple devices into a unified logical device, the network topology, business, and management are simplified, the reliability of 1: N is doubled, and the network operation performance is greatly improved.
|
Support Features
|
S5130-30S-HI
|
S5130-54S-HI
|
S5130-54QS-HI
|
|
exchange capacity
|
598Gbps/5.98Tbps
|
598Gbps/5.98Tbps
|
598Gbps/5.98Tbps
|
|
Packet forwarding rate
|
216Mpps
|
252Mpps
|
252Mpps
|
|
Overall dimensions (width × deep × Height (in mm)
|
440×260×43.6
|
440×260×43.6
|
440×360×43.6
|
|
weight
|
≤5kg
|
≤5kg
|
≤7.5kg
|
|
Port Description
|
24 10/100/1000Base-T adaptive Ethernet ports, 4 10 Gigabit SFP+ports, 2 QSFP+stacking ports
|
48 10/100/1000Base-T adaptive Ethernet ports, 4 10 Gigabit SFP+ports, and 2 QSFP+stacking ports
|
48 10/100/1000Base-T adaptive Ethernet ports, 4 10 Gigabit SFP+ports, and 2 QSFP+stacking ports
|
|
power consumption
|
35-52W
|
45-64W
|
58-90W
|
|
Voltage
|
AC: Rated voltage range: 100V~240V AC, 50/60Hz
|
AC: Rated voltage range: 100V~240V AC, 50/60Hz
|
AC: Rated voltage range: 100V~240V AC, 50/60Hz
|
|
Working environment temperature
|
-5 ℃~45 ℃
|
-5 ℃~45 ℃
|
-5 ℃~45 ℃
|
|
Relative humidity of working environment (non condensing)
|
5% to 95%
|
5% to 95%
|
5% to 95%
|
