YDWS 300-500kg/hr good quality stainless steel dust-free pin mill powder making grinding pulverizer ginger grinder machine

YDWS 300-500kg/hr good quality stainless steel dust-free pin mill powder making grinding pulverizer ginger grinder machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $7500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power (kW):: 12.25

Range of Spindle Speed(r.p.m):: 3800 - 4000 r.p.m

Place of Origin:: China (Mainland)

Brand Name:: Yinda

Voltage:: 110V220V/380V/440V

Dimension(L*W*H):: 1300*750*1850

Weight (KG):: 1100 KG

Marketing Type:: Hot-selling

Product name:: dust-free pin mill powder making grinding pulverizer machine

Machine Type:: Grinder Mill

Production capacity:: 200-500 kg/h

Function:: Make Dry Powder

Spindle Speed:: 3800 (r/min)

package:: Wooden Packing

MOQ:: 1 Set

Fineness:: 20-120 mesh

Suitable for:: dry powder making

Quick Details

Output (kg/h):: 200 - 400 kg/h

Feeding Size (mm):: 10 - 15 mm

Output Size (mesh):: 60 - 120 mesh

Power (kW):: 12.25

Range of Spindle Speed(r.p.m):: 3800 - 4000 r.p.m

Place of Origin:: China (Mainland)

Brand Name:: Yinda

Voltage:: 110V220V/380V/440V

Dimension(L*W*H):: 1300*750*1850

Weight (KG):: 1100 KG

Marketing Type:: Hot-selling

Product name:: dust-free pin mill powder making grinding pulverizer machine

Machine Type:: Grinder Mill

Production capacity:: 200-500 kg/h

Function:: Make Dry Powder

Spindle Speed:: 3800 (r/min)

package:: Wooden Packing

MOQ:: 1 Set

Fineness:: 20-120 mesh

Suitable for:: dry powder making

Welcome to visit Yinda Machinery Factory!

Why Choose Us:

1. Your Expert Powder Handling Systems Manufacturer for 15 years
2 . 2 Years Warranty, Factory Price, Own R&D Team
3. GMP Validation Certification : IQ, OQ, PQ and FAT
4. Provide alibaba quality and delivery guarantee services.
5. Offsite&onsite quality control and quality assurance services

YDWS 300-500kg/hr good quality stainless steel dust-free pin mill powder making grinding pulverizer ginger grinder machine

Product Description

Benefits of Pin mill:

1- Changeable filter screen to help regulate a specific final powder size, and the sieve is easy to take down so as to clean easily.

2- interchangeable grinding rotor, this equipment has wide production adaptability

3- Designed according to GMP standard and wholly made of stainless steel.

4- With high speed rotation of knives,materials are crushed by the impact and cut force.

5-the product fineness is achieved by adjusting the speed of the needle disc

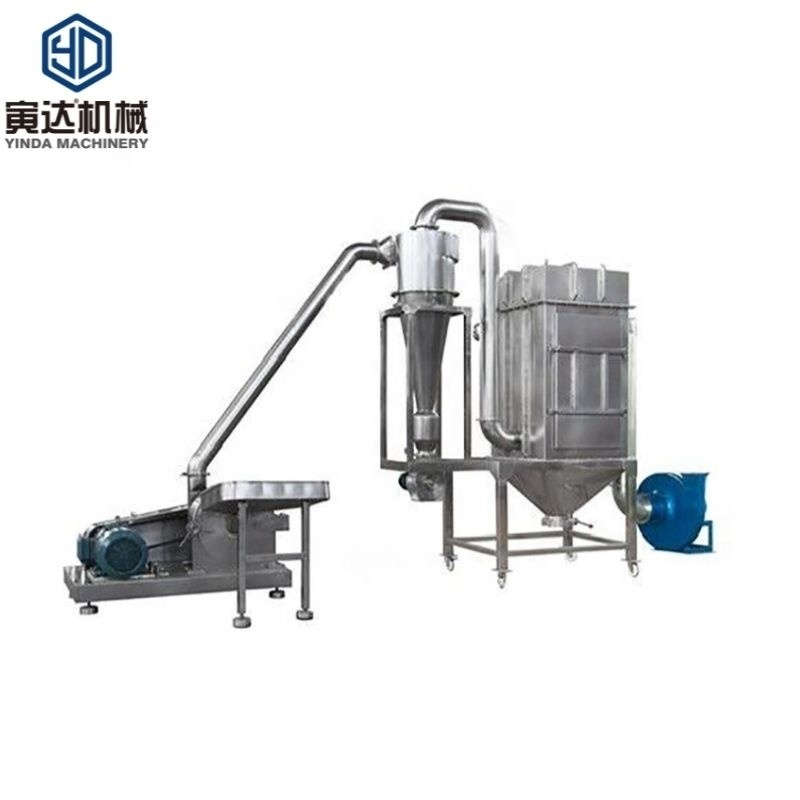

High efficiency bag filter with automatic pulse dust separation

Rotary discharge valve for air sealing and discharge from bag filters

YDWS 300-500kg/hr good quality stainless steel dust-free pin mill powder making grinding pulverizer ginger grinder machine is commonly made of stainless steel SUS 304 with polishing treatment.

YDWS 300-500kg/hr good quality stainless steel dust-free pin mill powder making grinding pulverizer ginger grinder machine is a multi-functional grinder, and is also widely known as pin mill, impact mill and powder grinding machine, which is extensively used in chemical, food and pesticide industries for pulverizing dry brittle materials.
With high speed rotation of knives,materials are crushed by the impact and cut force, the materials are pulverized into powder and then discharged through sieve mesh.

The fineness of powder can be controlled by changing sieve mesh in different aperture.

Model	YDWS-30	YDWS-40	YDWS-60	YDWS-80	YDWS-100	YDWS-1200
Capacity(kg/hr)	100-300	200-400	400-600	500-800	600-1200	800-1500
Input Size	10-15 MM
Output Size	20-120 Mesh
Speed of Principal Axis(r/min)	4500	3800	2600	2000	1600	1400
Motor(kw)	9.25	12.25	25.5	52.15	68.5	83.5
Machine Size(mm)	13007001650	13507001920	15007502000	22009802000	220011002340	200013001700
Weight(kgs)	980	1150	1450	1780	1890	2100
