Impact Stone Crusher Primary Impact Crusher Impact Crusher

Impact Stone Crusher Primary Impact Crusher Impact Crusher

FOB Reference Price: Get Latest Price

≥1 Sets

US $42000

≥2 Sets

US $36000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Xinhai

Dimension(L*W*H):: 2690*2688*2890

Weight:: 18.6 KG

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: impact crusher

Input Size:: 400mm--1520mm

Applications:: Aggregates Shaping, Mechanism sand

Processed Materials:: Limestone, Granite, Gabbro, Basalt, River Stone, Ore

Capacity:: 30-250TPH

Max feeding size:: 200-1020mm

The Machines classification:: Mining Machinery

Color:: White

Product name:: impact crusher

Quick Details

Application:: Aggregates Shaping, Mining

Capacity(t/h):: 130-180

Place of Origin:: Henan, China

Brand Name:: Xinhai

Dimension(L*W*H):: 2690*2688*2890

Weight:: 18.6 KG

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: impact crusher

Input Size:: 400mm--1520mm

Applications:: Aggregates Shaping, Mechanism sand

Processed Materials:: Limestone, Granite, Gabbro, Basalt, River Stone, Ore

Capacity:: 30-250TPH

Max feeding size:: 200-1020mm

The Machines classification:: Mining Machinery

Color:: White

Product name:: impact crusher

Product Description

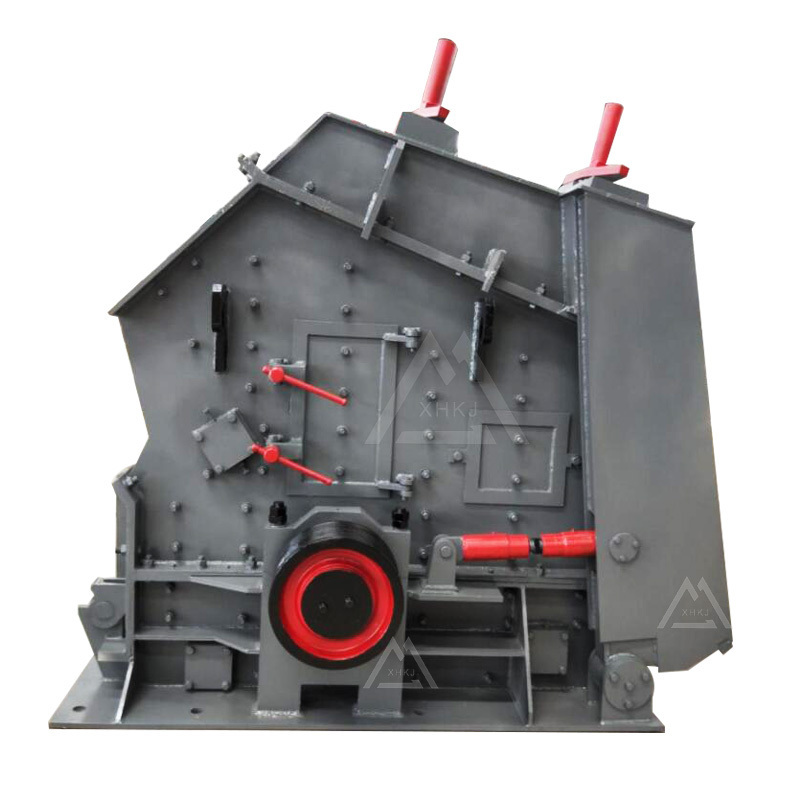

impact crusher description:

By adopting the developed technology and unique structural design, finished products processed by impact crusher boasts cubic shape without tension and cracks. It can crush stone smaller than 500mm with compression strength lower than 350MPA, such as granite, limestone, concrete, etc.
Impact crusher is widely used in all kinds of ore crushing, railway, highway, energy, cement, chemical industry, construction, etc. The output size can be adjusted.

Product Features

Impact crusher feature:

1,Many cavities to crush, suitable for crushing hard rock
2,Reasonable design of leveling plate making charge finer and cubic without interior cracks
3,Low and big feed opening makes the production line easy to arrange and increase the size of feeding material
4,Use the hydraulic to open, easy to maintain and change wear-parts
5,New anti-abrasive material makes longer service life of impact bar, impact plate and liner.

Packaging & Shipping

Impact crusher:

Wooden case packing, nude packing

FPB Qingdao port or Shanghai port

CIF at any port overseas

Specifications

Impact crusher Specification:

Model	Rotor Spec (mm)	Feed opening size (mm)	Max Feed edge(mm)	Capacity (t/h)	Motor Power(kw)	Weight(t)	Overall Dimension(LWH)mm
PF-1007	1000*700	400*730	300	30-50	37-55	9.5	2400×1558×2660
PF-1010	1000*1050	400*1080	350	50-80	55-75	12.2	2400×2250×2620
PF-1210	1250*1050	400*1080	350	70-120	110-132	14.9	2690×2338×2890
PF-1214	1250*1400	400*1430	350	130-180	132-160	18.6	2690×2688×2890
PF-1310	1300*1050	490*1170	400	80-140	110-160	16.2	2780×2478×2855
PF-1315	1320*1500	860*1520	500	160-250	180-260	19.3	3096×3273×2667

Our Services

1.) This quotation also includes the price of motor, electric cabinet; all structural parts will have rust-proof treatment before finish machining.

2.) This quotation is valid for 30 days.

3.) Payment Terms: T/T, 30% advance, 70% balance T/T before shipment.

4.) Delivery Time: 15-25 working days after receiving advanced payment.

5.) Guarantee period: 1 year.

6.) If the buyer requires, the seller can send technician to guide the equipment installation and commissioning. All travelling, hotel and meal expenses and salary of the technician shall be paid by the buyer. Technician’s salary is 60 USD per day .

Production capacity
