Act as a good adviser and assistant of clients,enable them to get rich and competitive from the returns of their investment.
1.Select suitable equipment model.
2.Design and manufacture products according to clients special requirements.
3.Train technical personnel for clients.
4.Professional suggestion for customer.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
22kw
-
Dimension(L*W*H):
-
types
-
Weight:
-
450kg
-
Certification:
-
ISO9001
-
Name:
-
Wood Crusher Machine
-
Application:
-
Wood Processing
-
Raw material:
-
Straw Grass Wood Branches
-
Product name:
-
stick grinding coconut shell charcoal wood crusher machine
-
Usage:
-
Wood Mill Crusher Machine
-
Type:
-
Multifunctional Crusher
-
Color:
-
Green, white, blue
-
Capacity:
-
1-6t/h
-
Item:
-
Wood Grinding Grinder Crusher
-
Keywords:
-
Wood Crusher Machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Mingxin
-
Voltage:
-
220V/380V
-
Power:
-
22kw
-
Dimension(L*W*H):
-
types
-
Weight:
-
450kg
-
Certification:
-
ISO9001
-
Name:
-
Wood Crusher Machine
-
Application:
-
Wood Processing
-
Raw material:
-
Straw Grass Wood Branches
-
Product name:
-
stick grinding coconut shell charcoal wood crusher machine
-
Usage:
-
Wood Mill Crusher Machine
-
Type:
-
Multifunctional Crusher
-
Color:
-
Green, white, blue
-
Capacity:
-
1-6t/h
-
Item:
-
Wood Grinding Grinder Crusher
-
Keywords:
-
Wood Crusher Machine
Product Description

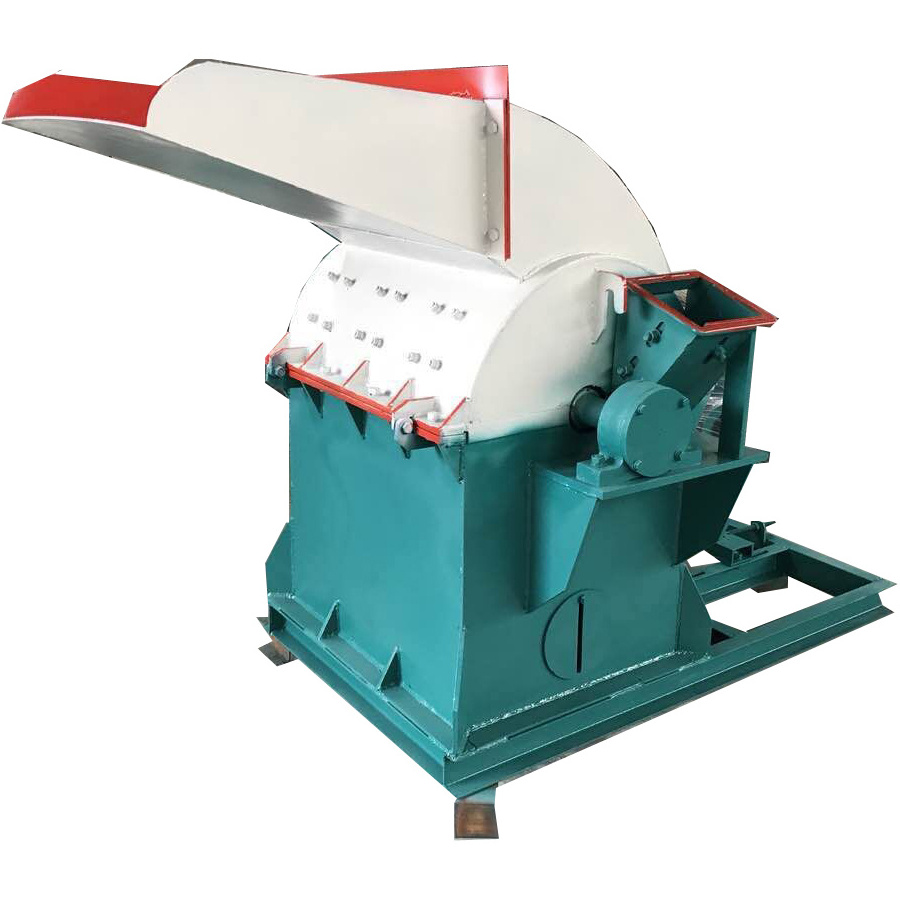

Stick grinding coconut shell charcoal wood crusher machine
Wood crusher is a new type of ideal mechanical equipment for the production of wood powder. The wood crusher can process raw materials such as wood and branch into wood powder.
The wood crusher mainly consists of a chip removal device, a crushing device, and a fan.After the wood chips are cut by the chip removal device, the wood chips have a small grain size and can be sent to the crushing device for further smashing without drying. The crushed pieces of wood chips are sent to the gathering place by the fan.
The whole set of equipment is driven by only one motor. Simple structure, compact layout, cheap price, stable work, low energy consumption , high output, good quality of wood chips and low processing cost. The wood crusher can also be used for chips of fibrous stalks, such as bamboo, thatch, corn stalks and sorghum stalks.
Working Principle of stick grinding coconut shell charcoal wood crusher machine
Drived by the motor and pulley, the main spindle rotates rapidly, and then hammerheads on the shaft collide with materials and crush them.
1) Since hammers are cross and non-overlapping arrangement, and their width is greater than hammer frame and contour, they are ensured to participate in crushing by the full length of the rotor. And due to the hammerheads being arranged inactively, the energy consumption will reduce when the hammerheads crush materials, to improve the crushing efficiency.
2) Structure designing principle of this device is "stone to stone" coarse-crushing chamber, fine crushing chamber, impact chamber(composed of wedge adjustable impact plate and circular plate), and three discharging channels.
3) In the coarse crushing chamber, this crusher adopts the designing principle of "stone to stone". That greatly reduces the hammer wearing. Besides, whether newly entering materials or ones in coarse and fine crushing chambers, they both can be discharged in time. That can greatly improve production capacity and reduce energy consumption.
1) Since hammers are cross and non-overlapping arrangement, and their width is greater than hammer frame and contour, they are ensured to participate in crushing by the full length of the rotor. And due to the hammerheads being arranged inactively, the energy consumption will reduce when the hammerheads crush materials, to improve the crushing efficiency.
2) Structure designing principle of this device is "stone to stone" coarse-crushing chamber, fine crushing chamber, impact chamber(composed of wedge adjustable impact plate and circular plate), and three discharging channels.
3) In the coarse crushing chamber, this crusher adopts the designing principle of "stone to stone". That greatly reduces the hammer wearing. Besides, whether newly entering materials or ones in coarse and fine crushing chambers, they both can be discharged in time. That can greatly improve production capacity and reduce energy consumption.
Technical Parameters
|
Model
|
Power(kw)
|
Number of blades
|
Rotating speed(r/min)
|
Capacity(t/h)
|
|
500
|
22
|
4
|
2800
|
1-2
|
|
600
|
30-37
|
4
|
2400
|
1.5-2.5
|
|
800
|
45
|
4-6
|
2400
|
2.5-3.5
|
|
1000
|
55+5.5
|
4-6
|
2000
|
3-4
|
|
1200
|
75+5.5
|
9
|
2000
|
3-5
|
|
1500
|
90+5.5
|
12
|
2000
|
4-6
|
Detailed Image
Main Features of stick grinding coconut shell charcoal wood crusher machine
* To ensure security, the feed inlet of this machine adopts self-suction design to avoid serious damage to operators.
* Low investment and energy consumption,
* High output
* High-quality finished products
* With reasonable structure,compact and durable .
* Spare parts all adopt high-quality materials,safe and reliable .
* Simple operation, with small vibration .
Application
1. The small wood crusher is kind of special equipment in making superior quality wood powder (edible mushrooms), widely used for preparation department of paper-making , mushrooms, mechanism charcoal, chipboard, wood particle board, HDF, MDF. The raw materials are usually be logs,and tree branches. Moreover ,it is also can process a variety of materials, such as fodder, etc.
2. Wood crushers can also be used for fiber stalks such as bamboo, thatch, corn stalks, sorghum stalks, pine, wood, twigs, fir, bamboo, plant roots, stems, rice husks, corn cobs, bark and any other raw material. Material material.
3. The small wood crusher also can be used for the development of producing some raw materials, such as mushroom wood, shaving board, high density board, charcoal, etc.
Packing & Delivery
|
Packing
|
The normal package is wooden box. We will use pe film for packing or pack it according to customers special request.
|
|
|
|
|||
|
|
|
|
|
|
|||
|
Delivery
|
Delivery within 15 days after receipt of deposit.
|
|
|
|
|||
|
|
|
|
|
|
|||
Our Service
Pre-Sales:
After-sales service :
Provide considerate service to minimize clients worries.
1.Provide civil engineering drawings of the equipment.
2.Free training(including installation, maintaince) to every customer.
3.Install and debug the equipment,ensure the dryer running smoothly.
4.Examine the equipment regularly.
FAQ
Q: How about the quality of your products?
A:We put the quality in the first place based on the honesty. Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before the delivery. You can also use Trade Assurance by Alibaba for product quality protection, punctual shipment protection and payment protection.
Q: How about the price?
A: We pursue small profits but quick turnover, and we can give you lower price than other trading companies. Besides, customers from Alibaba can get a discount. If the product is really suitable and can benefit you, the price is negotiable.
Q: When do you deliver the goods?
A:We usually deliver the goods within 10 days depending on detailed product. We will advise the detailed delivery time according to your specific inquiry.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to solve your problems promptly and thoroughly.
