Square tube welding, heavy-duty bed, and finishing table make the work operation more stable.
- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT, laser engraving machine
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LXSHOW
-
Dimension(L*W*H):
-
3305*2180*1250mm
-
Weight (KG):
-
970 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Power:
-
2600W
-
Color:
-
Customer Requirement
-
After-sales Service Provided:
-
7*24
-
After Warranty Service:
-
Online
-
Keyword:
-
Hydraulic Press Break
-
Voltage:
-
220v/50HZ can be customized
-
Laser tube type:
-
CO2 Sealed Glass Laser Table
-
Working table:
-
Worktable(optional)
-
Cooling system:
-
Water Cooling System
Quick Details
-
Engraving Area:
-
1300mm*2500mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
1000mm/s
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT, laser engraving machine
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LXSHOW
-
Dimension(L*W*H):
-
3305*2180*1250mm
-
Weight (KG):
-
970 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Power:
-
2600W
-
Color:
-
Customer Requirement
-
After-sales Service Provided:
-
7*24
-
After Warranty Service:
-
Online
-
Keyword:
-
Hydraulic Press Break
-
Voltage:
-
220v/50HZ can be customized
-
Laser tube type:
-
CO2 Sealed Glass Laser Table
-
Working table:
-
Worktable(optional)
-
Cooling system:
-
Water Cooling System

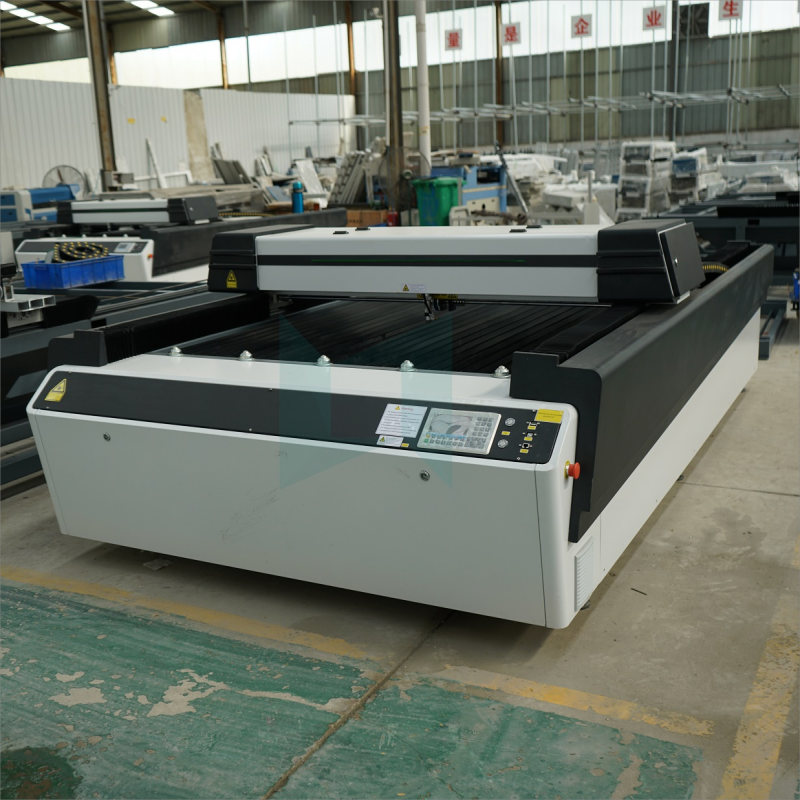

Product Overview
Advantages
The guide rail surface is precision milled for higher plane accuracy; the guide rail is installed with a reference surface for higher linear accuracy.
Integrated beam (no deformation, stable and durable)
Precision milling platform, higher plane precision, large format to ensure cutting effect
The motors are installed vertically (they belong to the same vibration point, reducing vibration and increasing cutting effect)
The machine bed is welded with triangular fixed points to prevent machine tool deformation and increase stability.
Product Description
Techical parameters
|
Model
|
|
1325-M6
|
|
|
|||
|
Laser tube power
|
|
130-150W
|
|
|
|||
|
Laser tube type
|
|
Sealed carbon dioxide glass laser tube
|
|
|
|||
|
Processing format
|
|
1300×2500mm
|
|
|
|||
|
Processing platform
|
|
Knife strip/honeycomb/flat plate (optional depending on the situation)
|
|
|
|||
|
Cutting thickness
|
|
30mm
|
|
|
|||
|
Engraving speed
|
|
1000mm/s
|
|
|
|||
|
Positioning accuracy
|
|
0.01mm
|
|
|
|||
|
Memory
|
|
128MB
|
|
|
|||
|
Motion Control System
|
|
Stepper Motor Stepper Drive/Hybrid Servo Motor Hybrid Servo Drive
|
|
|
|||
|
Processing technology
|
|
Engraving relief painting line cutting
|
|
|
|||
|
Supported formats
|
|
JPG PNG BMP DXF PLT DSP DWG
|
|
|
|||
|
Minimum engraving size
|
|
1mm*1mm
|
|
|
|||
|
Dimensions
|
|
3305*2180*1250mm
|
|
|
|||
|
Equipment power consumption
|
|
2600W
|
|
|
|||
|
Weight
|
|
970KG
|
|
|
|||
Application & Samples
Since the carbon dioxide laser machine works on a wide range of materials, it can be used for non-metallic and metallic materials such as acrylic, wood, leather, cloth, cardboard, rubber, two-color boards, glass, marble, etc. Therefore, its application industries are also very rich, including the advertising industry, kitchenware industry, leather and cloth industries, etc.
Carbon dioxide laser machines have many functions. They can be used not only for cutting and engraving, but also for embossing and line drawing. The working materials are also very wide, and can be used on acrylic, wood, leather, cloth, cardboard, rubber, two-color plates, glass, marble and other non-metallic and metallic materials. The following are some sample displays of carbon dioxide laser machines
Our Company
Jinan Lxshow Laser Manufacture Co., Ltd. is established in July 2004, owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries and areas,and supply OEM service for more than 30 manufactures. Now, we have owned four International brand, UNICHCNC,MYST,JNLINK, LXSHOW.
The company attaches great importance to the personal development and team building of employees. Not only do they help each other and make progress together during the work process, but they are also good friends who can play together after work. The company organizes various activities every year to enhance the cohesion of employees and inject more energy into the development of the enterprise.
Exhibition & Visit
Since the establishment of the company, Leader Laser Equipment Co., Ltd. has never stopped moving forward. Through unremitting efforts, it has expanded the laser equipment market to foreign countries. For several years, we have participated in exhibitions all over the world, including but not limited to Russia, South Korea, Vietnam and other countries.
We will also invite customers from all over the world to visit our factories and offices. The countries that came include: Russia, South Korea, Kosovo, Jordan, Saudi Arabia and many other countries.
Honor Certificate
Services
Professional After -sale Team
You don't have to worry about not having skilled workers,we'll teach you.We have a professional after-sales team responsible for product installation, inspection and maintenance.We support door-to-door maintenance when there is anything wrong with the machine that you can't solve.
Door-to-door Service
In order to help customers better and faster master the use of the machine, solve faults faster and assist production, we provide professional after-sales personnel for on-site training and after-sales service.The picture shows after-sales personnel going to South Korea, Tver, Brazil, Qatar, Russia, Moscow and other places for on-site training
FAQ
Q1. Before send me an inquiry on our cnc laser, it is better for you to provide me the following information:
1) Your metal or non-metal material size. Because in our factory, we have different models according to working area.
2) Your materials. Metal/Acrylic/Plywood/MDF?
3)You want to engrave or cut? If cut,could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
Q2. If we don't know how to use the machine, can you teach us?
Yes. We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online helpsoftware. Or we can talk by phone,email or Whats app
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The complete machine will be stested to make sure they can work very well before being out of factory. Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q5. Do you arrange shipment for the machines?
Yes. For FOB or CIF price,we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
