Quick Details
-
Model Number:
-
HL-5030
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-25 ~+70
-
Max. Current:
-
15A
-
Certificate:
-
TUV CCC CE RoHS
-
Warranty Period:
-
5 years
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ODOELEC
-
Model Number:
-
HL-5030
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-25 ~+70
-
Max. Current:
-
15A
-
Certificate:
-
TUV CCC CE RoHS
-
Warranty Period:
-
5 years
-
Certification:
-
CE
Product Description

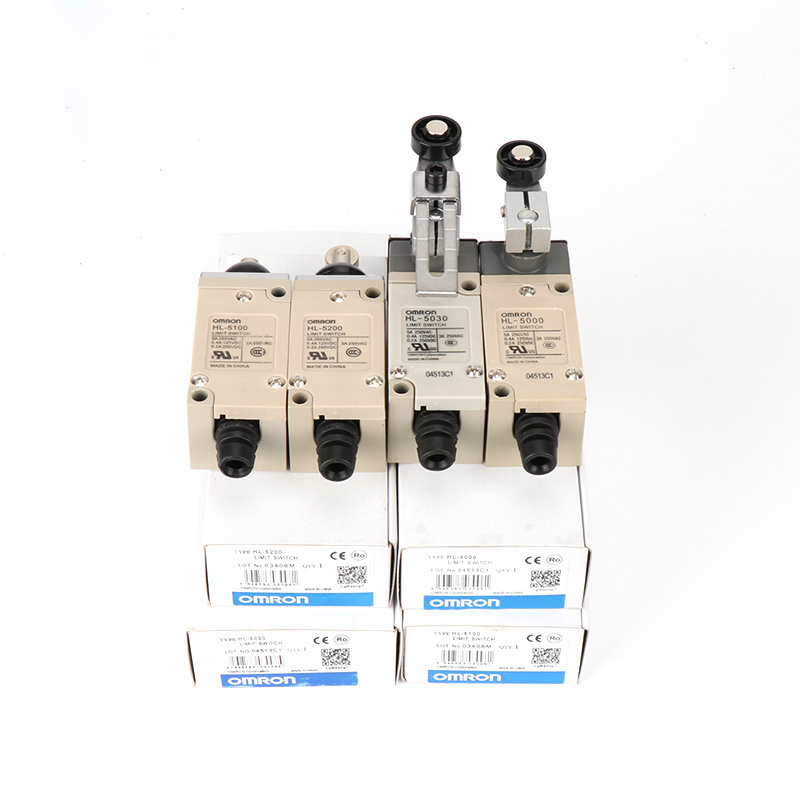

HL-5030 12V DC Adjustable Roller Arm Type High Temperature Limit Switch
Feature
Metallic bottom shell
Stainless steel roller, punch and spring
Strong electric proporty 10A 250V for 500.000 times
Characterstics
|
Protection
|
|
IP67
|
|
|
Mechanical
|
Ten milion times above
|
|
|
Electrical
|
Electric life curve 5mm~0.5m /sl
|
|
Operation speed
|
|
5mm~0.5m/sl
|
|
|
Mechanical
|
120 times/m
|
|
|
Electrical
|
30 times/m
|
|
Insulation resistance
|
|
100mΩ DC500V
|
|
Contact resistance
|
|
<25mΩ
|
|
Withstand voltage (50/60HZ 1min)
|
Between the terminals of same pole
|
AC 1000V
|
|
|
Between charged metal parts
|
AC 1500V
|
|
|
Between charged metal parts each terminal
|
AC 1000V
|
|
Vibration
|
Misoperation
|
10~15Hz amplitude 1.5mm
|
|
Load
|
|
AC 250V 5A
|
|
|
|
AC 380V 5A
|
|
|
|
AC 125V 3A
|
|
|
|
AC 250V 3A
|
Operating Characteristics
|
Model
|
HL-5000
|
HL-5030
|
HL-5050
|
HL-5100
|
HL-5200
|
|
OF (Max)
|
750g-cm
|
750g-cm
|
750g-cm
|
750g-cm
|
900g-cm
|
|
RF (Min)
|
100g-cm
|
100g-cm
|
100g-cm
|
200g
|
200g
|
|
PT(Max)
|
20°
|
20°
|
20°
|
1.8mm
|
1.8mm
|
|
OT (Min)
|
22.5°
|
22.5°
|
22.5°
|
2.0mm
|
2.0mm
|
|
MD (Max)
|
10°
|
10°
|
10°
|
1.2mm
|
1.2mm
|
|
EP (Max)
|
75°
|
75°
|
75°
|
4.0mm
|
4.0mm
|
|
OP (mm)
|
95°
|
95°
|
95°
|
5.8mm
|
5.8mm
|
|
Model
|
HL-5220
|
HL-5300
|
HL-5330
|
HL-5381
|
HL-5391
|
|
OF (Max)
|
900g-cm
|
150g
|
150g
|
150g
|
550g-cm
|
|
RF (Min)
|
200g
|
30g
|
30g
|
30g
|
100g-cm
|
|
PT(Max)
|
1.8mm
|
30mm
|
30mm
|
30mm
|
20°
|
|
OT (Min)
|
2.0mm
|
22.5°
|
22.5°
|
22.5°
|
22.5°
|
|
MD (Max)
|
1.2mm
|
14°
|
14°
|
14°
|
14°
|
|
EP (Max)
|
4.0mm
|
20mm
|
20mm
|
20mm
|
75°
|
|
OP (mm)
|
5.8mm
|
50mm
|
50mm
|
50mm
|
95°
|
