Quick Details
-
Cable construction:
-
Twin Conducter
-
Conductor:
-
Solid Heating Core
-
Insulation:
-
Fluoropolymer
-
Shield:
-
Al foil and Cu wire
-
Protective jacket:
-
PVC
-
Connector:
-
Out splice
-
Outside diameter:
-
5.0-5.8mm
-
Rated voltage:
-
230 VAC
-
Power output:
-
20W/M
-
Resistance tolerance:
-
+10/-5%
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TYCO
-
Model Number:
-
TYCO-HM003
-
Cable construction:
-
Twin Conducter
-
Conductor:
-
Solid Heating Core
-
Insulation:
-
Fluoropolymer
-
Shield:
-
Al foil and Cu wire
-
Protective jacket:
-
PVC
-
Connector:
-
Out splice
-
Outside diameter:
-
5.0-5.8mm
-
Rated voltage:
-
230 VAC
-
Power output:
-
20W/M
-
Resistance tolerance:
-
+10/-5%

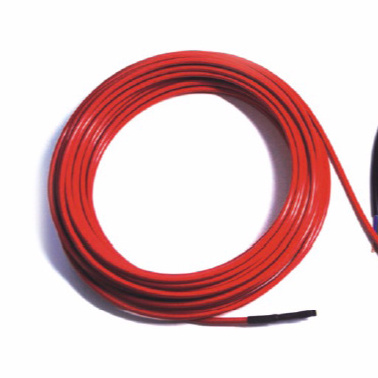

Twin conductor Underfloor heating mat carbon heat for driveway keep snow
is a twin conductor heating cable for easy of installation and vry low EMF.It is a cable for in screed heating for new buildings and suitable for use for all kind of rooms and all kinds of coverings.
Twin conductor Underfloor heating mat carbon heat for driveway keep snow
is a heating cable designed for new buildings applications or any other circumstances where screed is going to be laid.
This system is usually installed on top of a lyer of insulation beneath a 50-70mm screed and the output can be varied when being installed to accommodated your specific circumstances.
If an output of 160W/m^2 is choosed then any floor covering can be laid on top of the screed, making this a suitable system to install when final floor coverings have not been applied.
|
Cable construction
|
Twin conductor
|
|
Conductor
|
Solid heating core
|
|
Insulation
|
Fluoropolymer
|
|
Shield
|
Al foil and Cu wire
|
|
Protective jacket
|
PVC
|
|
Connector
|
Out splice
|
|
Outside diameter
|
5.0-5.8mm
|
|
Rated voltage
|
230 VAC
|
|
Power output
|
20W/m
|
|
Resistasnce tolerance
|
+10/-5%
|
Twin conductor Underfloor heating mat carbon heat for driveway keep snow
● 20W/m
● Twin conductor heating cable
● Very low EMF
● Only one cold tair for easy of installation
● Diameter 5.0-5.8mm
● 2.5 meters cold lead
● 100% screened
Twin conductor Underfloor heating mat carbon heat for driveway keep snow
