Ultra thin high density 420led/m 35W flex LED panel sheet Flexible Backlight led sheet light for stone
Ultra thin high density 420led/m 35W flex LED panel sheet Flexible Backlight led sheet light for stone
Ultra thin high density 420led/m 35W flex LED panel sheet Flexible Backlight led sheet light for stone
Ultra thin high density 420led/m 35W flex LED panel sheet Flexible Backlight led sheet light for stone
Ultra thin high density 420led/m 35W flex LED panel sheet Flexible Backlight led sheet light for stone
Ultra thin high density 420led/m 35W flex LED panel sheet Flexible Backlight led sheet light for stone
Ultra thin high density 420led/m 35W flex LED panel sheet Flexible Backlight led sheet light for stone
Ultra thin high density 420led/m 35W flex LED panel sheet Flexible Backlight led sheet light for stone

Ultra thin high density 420led/m 35W flex LED panel sheet Flexible Backlight led sheet light for stone

FOB Reference Price: Get Latest Price
≥5 Pieces
US $21.3
≥500 Pieces
US $19.7
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty(Year):
3-Year
Product Weight（kg）:
0.2
Lamp Luminous Flux(lm):
3000
CRI (Ra>):
80
Working Temperature(℃):
-20 - 60
Working Lifetime(Hour):
50000
Place of Origin:
Guangdong, China
Brand Name:
PERFECT
Model Number:
PSB602C-225
Product Name:
HIgh brightness led strip light sheet
LED Type:
Smd 2835 Led Chip
LED Quantity:
420-led/sheet
3M Tape:
300LSE
Operating Curren:
1.5A
Dimension:
503*235*6.5mm
Material:
Copper Wire PCB Circuit
Packing:
Anti-static Aluminum Foil Bag

Quick Details

Lamp Luminous Efficiency(lm/w):
100
Application:
Kitchen
Lamp Body Material:
Aluminum
Warranty(Year):
3-Year
Product Weight（kg）:
0.2
Lamp Luminous Flux(lm):
3000
CRI (Ra>):
80
Working Temperature(℃):
-20 - 60
Working Lifetime(Hour):
50000
Place of Origin:
Guangdong, China
Brand Name:
PERFECT
Model Number:
PSB602C-225
Product Name:
HIgh brightness led strip light sheet
LED Type:
Smd 2835 Led Chip
LED Quantity:
420-led/sheet
3M Tape:
300LSE
Operating Curren:
1.5A
Dimension:
503*235*6.5mm
Material:
Copper Wire PCB Circuit
Packing:
Anti-static Aluminum Foil Bag
Ultra thin high density 420led/m 35W flex LED panel sheet Flexible Backlight led sheet light for stone
Flexible LED Strip Sheet

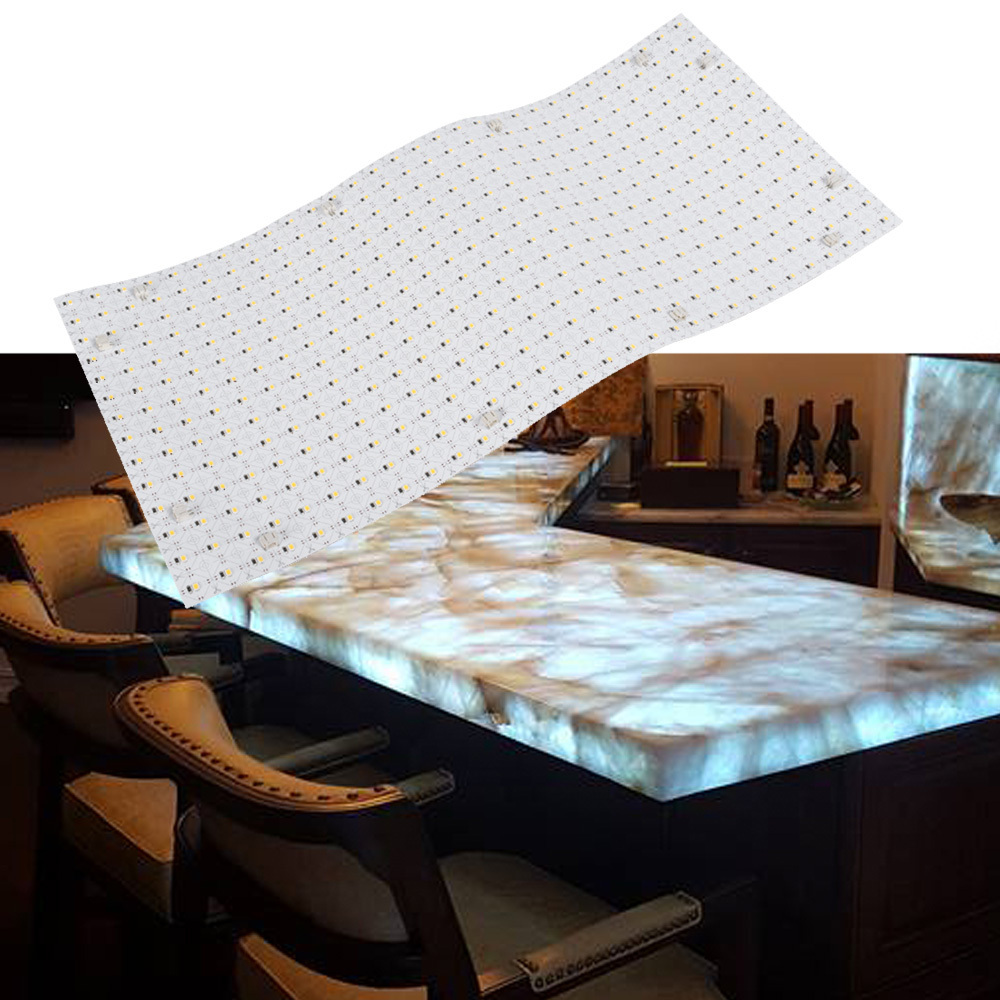

Flex LED Sheet is ideally suited for counter and bar tops, curved surfaces, low clearance applications and situations where exact measurements are not known or likely to change. With high density LED, Light Sheets are specifically engineered to be a dimmable, field customizable solution for backlighting translucent materials. Cut LEDs from any part of the sheet to avoid obstacles without interrupting power to the rest of the sheet. Perfect for back lighting advertisements or translucent panels like onyx, stone and resin panels, our Flexible Backlight can be bent and cut into virtually any shape.
Product Details

LED Sheet light
flex led sheet
led sheet lighting
led sheets

* 1LED/2LEDs/4LEDs per cut,Any shape are available.
* Widely used in light box, bar, large area lighting,led panel light and marble stone.
* A led steep can be folded into two sides lighting, three sides lighting, and full coverage lighting.
* DC24 Safe voltage, the human body can touch directly.
* Use 18V SMD2835 led chips, high Brightness.
* 3M Double-sided adhesive tape at the back allows for easy installation.
* Can punch hole on the PCB hole.

Part No.
PSB602C-420LED-Single Color
LED Type
SMD2835
LED QTY
420LEDs / SHEET
Dimension
503x235x6.5mm (19.8x9.25x0.26 inch)
Color
2700K/3000K/4000K/6500K
Working Voltage
DC24V
Current
1.5A
Wattage
35W/SHEET
CRI
80 / 90 / 95 Ra
Lumen
2800-3700lm/sheet
IP Rank
IP20 / IP50 /IP65
Beam  Angle
120°
SDCM
<3
Working Hours
50000hours
Certification
UL / CUL / CE / ROHS / ISO9001

flexible LED sheet Dimension &Connction

How to use flex led sheet

Led sheet light
.
