Cr12 hydraulic shear.
Dislocation shear.
No scraps.
- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
0.3-0.6mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VIGOR
-
Voltage:
-
380v 50Hz customized
-
Dimension(L*W*H):
-
5800*1500*1300mm
-
Weight:
-
3.5 kg
-
Name:
-
trapezoid roof roll forming machin corrugated roll forming machine
-
Keywords:
-
south africa ibr roll forming machine
-
Keyword:
-
trapezoid roof panel roll forming machine
-
Raw material:
-
Color steel coil
-
Roller material:
-
45#steel Chrome Plated
-
Shaft material:
-
45# Steel Outer Diameter: 70mm
-
Main frame:
-
300 H steel
-
KW:
-
roof panel roll forming machine
-
Key words:
-
corrugated roll forming machine
-
Product name:
-
double layer roll forming machine
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Glaze
-
Production Capacity:
-
10 m/min
-
Rolling thinckness:
-
0.3-0.6mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
VIGOR
-
Voltage:
-
380v 50Hz customized
-
Dimension(L*W*H):
-
5800*1500*1300mm
-
Weight:
-
3.5 kg
-
Name:
-
trapezoid roof roll forming machin corrugated roll forming machine
-
Keywords:
-
south africa ibr roll forming machine
-
Keyword:
-
trapezoid roof panel roll forming machine
-
Raw material:
-
Color steel coil
-
Roller material:
-
45#steel Chrome Plated
-
Shaft material:
-
45# Steel Outer Diameter: 70mm
-
Main frame:
-
300 H steel
-
KW:
-
roof panel roll forming machine
-
Key words:
-
corrugated roll forming machine
-
Product name:
-
double layer roll forming machine

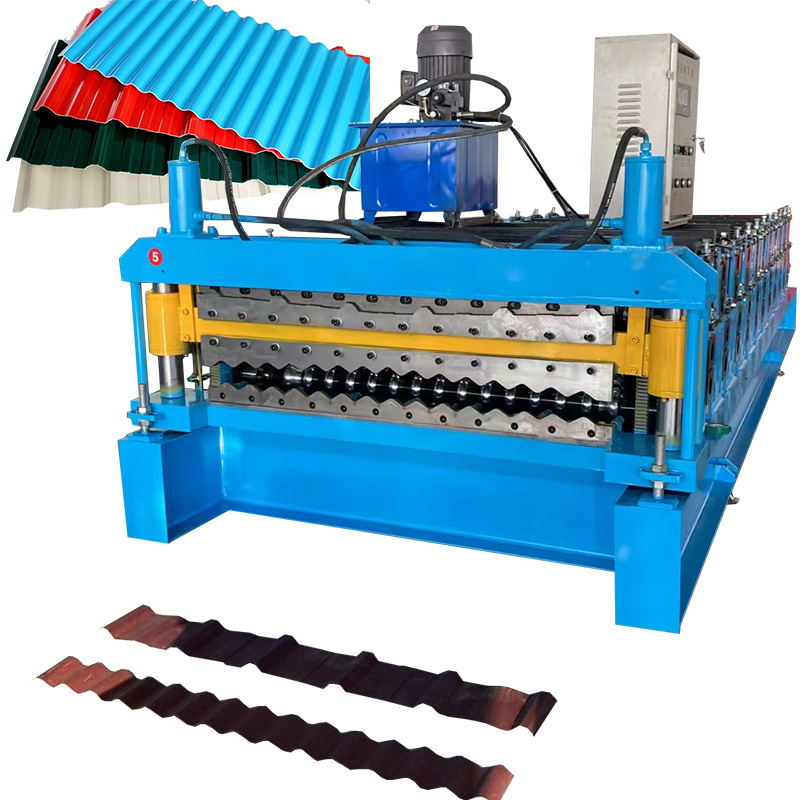

This is the double layers roof sheet roll forming machine. It can make two different designs products on one machine.The final product shape and size can be customized as your request. You just need send the final designs or real picture is enough. we can also recommend as your need. Trapezoidal and c
orrugated tile are the most popular seen in the market.
|
Model
|
DRYWJ-SC
|
|
Voltage
|
380v,50hz, 3 phases(customizable)
|
|
Feeding width
|
1000MM
|
|
Effective width
|
840MM/760MM(customizable)
|
|
Thickness
|
0.3-0.6MM
|
|
Roller material
|
45# steel plated with chrome
|
|
Diameter of shaft
|
70MM
|
|
Middle plate thickness
|
14mm
|
|
Main motor power
|
4kw
|
|
Hydraulic station power
|
3kw
|
|
Control system
|
PLC
|
|
Number of rolling molding rows
|
11-13 rows(According to different types request different)
|
|
Weight
|
3500kgs
|
|
Dimension
|
5800*1500*1300mm
|
This part is hydraulic cutting system.
Suitable for 0.2-0.6mm thickness.
Galvanized sheet material, aluminum, copper
Hard chrome plated surface.
The role of chromium: increase the hardness, rust prevention 10 -20 years, increase the surface smoothness of the roller.
Rows 12-14.(according to the different product, rows different)
The surface of the plate is flat without wrinkles and scratches.
The forming effect is good.
Chains Driving
Chain default external.
Customer request can be built-in.
1 inch sprocket chain gear drive can use long time.
heat-treated.
The machine is fitted with a detector and tracker. The shape is accurate and the effect is perfect. It has a very good auxiliary effect.
3 kW pumping station.
The pressure of hydraulic station is 1-12mpa.
Plus standard 46 hydraulic fluid.
Supply enough power for machine.
More designs available.
