Quick Details
-
Minimum Flashover Voltage Wet:
-
15 kv
-
Weight:
-
0.5 Kg
-
Standard:
-
BS
-
Feature:
-
low voltage insulators
-
Size:
-
Customers Request
-
Color Glaze:
-
Brown , Customers Request
-
Usage:
-
Insulation Protection
-
Sample:
-
Sample Avaliable
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Mechanical Failing Load:
-
13 kn
-
Minimum Flashover Voltage Dry:
-
25 kv
-
Minimum Flashover Voltage Wet:
-
15 kv
-
Weight:
-
0.5 Kg
-
Standard:
-
BS
-
Feature:
-
low voltage insulators
-
Size:
-
Customers Request
-
Color Glaze:
-
Brown , Customers Request
-
Usage:
-
Insulation Protection
-
Sample:
-
Sample Avaliable

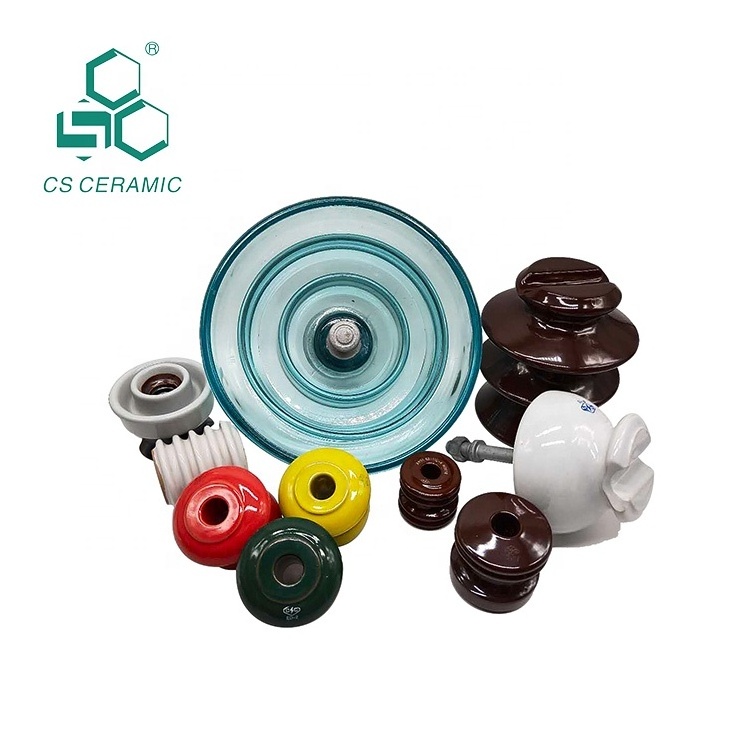

China wholesale overhead line low voltage electrical 11kv 20kv ED-2B ED-2C disc spool shackle Porcelain ceramic insulator
MAIN DIMENSIONS AND STANDARD PARTICULARS:
| Class BS | Main Dimensions(mm) | Mechanical Failing Load(kn) | Minimum Flashover Voltage | Weight(kg) | ||||||||
| Power-frequency | ||||||||||||
| H | h | D | d | d1 | d2 | R | Dry(kv) | Wet(kv) | ||||
| Upright | Level | |||||||||||
| ED-2(C) | 80 | - | 80 | 50 | 22 | - | 6 | 13 | 25 | 15 | 0.50 | |
| ED-2(B) | 76 | - | 89 | 48 | 21 | - | 10 | 12 | 25 | 12 | 0.50 | |
| ED-2(B)1 | 76 | - | 89 | 48 | 17.5 | - | 10 | 12 | 25 | 12 | 0.50 | |
| 1617 | 65 | - | 76 | 46 | 17.6 | - | 9 | 9 | 20 | 9 | 0.40 | |
| 1618-1 | 75 | - | 89 | 55 | 17 | - | 12.5 | 10 | 20 | 9 | - | |
| 1618-2 | 75 | - | 89 | 55 | 17 | - | 12.5 | 13 | 25 | 12 | - | |
| 53-1 | 54 | 27 | 57 | 45 | 18 | 22 | 11 | 907 | 20 | 8 | 10 | 0.22 |
| 53-2 | 76 | 38 | 79 | 45 | 18 | 24 | 18 | 1360 | 25 | 12 | 15 | 0.55 |
| 53-3 | 81 | 40.5 | 76 | 45 | 18 | 24 | 11 | 1814 | 25 | 12 | 15 | 0.60 |
| 53-4 | 76 | 38 | 105 | 73 | 18 | 24 | 16 | 2041 | 25 | 12 | 15 | 1.15 |
| 105 | 52.5 | 102 | 73 | 18 | 24 | 11 | 2722 | 35 | 18 | 25 | 25 | 1.20 |
1. What standards do you have?
Our products meet the stand
ards, such as
ANSI
,
BS
, AMS, DIN,
IEO
etc.
The third party testing is all available for us.
2. How can you control your quality?
For each production processing, we have complete QC system for the chemical composition and Physical properties. After production, all the goods will be tested, and the quality certificate will be shipped along with goods.
3. Does your company accept customization?
We accept OEM service.
4. What is your lead time?
It usually needs about 15- 20 days after receiving the PO.
5. What's the payment term that u can accept?
T/T or L/C
6. Are u the factory or trading company?
We are factory who was founded on 2002's with 61.58 million(Chinese Yuan)registered capital.
7. Can we visit your company?
Yes, for sure, you are welcome to visit our company.
8. Do you supply samples?
Yes, we would like to send the samples for your to check the quality.
Please feel free to contact us if you have any questions if you are interested.
ATTN: MS. LISA PAN
TEL: +86 799 7889368
MOBILE: +86 166 0799 9988
QQ: 471364220
