Quick Details
-
Model Number:
-
GR
-
Tex Count:
-
100-3600TEX
-
Product name:
-

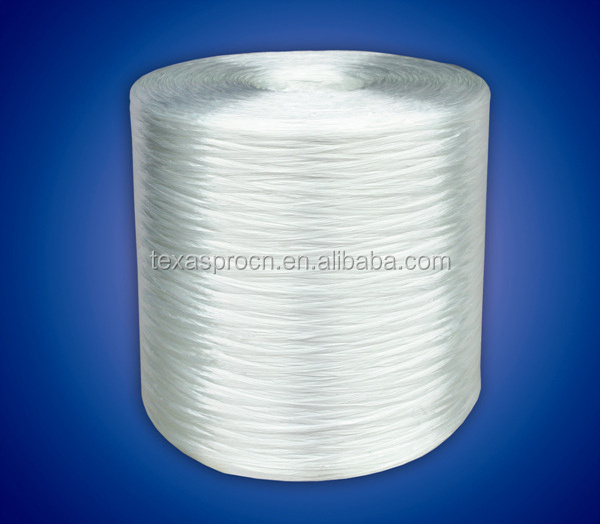

Fiberglass Spray Gun Roving
-
Filament Diameter:
-
12-14um
-
Linear Density:
-
2400Tex
-
LOI:
-
0.95-1.25%
-
Application:
-
spray up FRP production
Quick Details
-
Type:
-
E-glass
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TEX
-
Model Number:
-
GR
-
Tex Count:
-
100-3600TEX
-
Product name:
-
Fiberglass Spray Gun Roving
-
Filament Diameter:
-
12-14um
-
Linear Density:
-
2400Tex
-
LOI:
-
0.95-1.25%
-
Application:
-
spray up FRP production
Identification of product code
ER= E-Glass roving
101A= Sizing code
2400= Roving density
Description
ER101A roving is continuous and muliti-end roving made of E-glass. Mainly utilized in FRP pipe by spray-up process.
-
Stable roving density, low deviation;
-
High stiffness;
-
High strands integrity, low fuzz, low static electricity;
-
Flat lay-down, fast wet-out; and
-
Silane sizing.
Technical Characteristics
|
Product code (g/km)
|
Roving density (yds/lb)
|
Filament (diam.ùm,symbol)
|
Loss on ignition
|
|
ER101A-2400
|
206
|
12 (J)
|
1.2
|
Carton Packing
PE-shrinkage packing, plastic bag, then in single corruagted carton, roll weight:18 ± 0.5kg, cartons can't be stacked higher than 5 tiers.
Pallet Packing
-
Each roll is wrapped by PE shringkage and put into PE bag, then put into cartons.
-
Pallet size: 1100 x 1100mm
-
Special attention: Pallets can't be stacked higher than 2 tiers.
-
Please keep noted, if any special requirements
Detailed Parameter
|
Roll weight
|
Roll size (mm)
|
Rolls/pallet
|
Pallet size (mm)
|
Average net weight of each pallet
|
||
|
ER101A-2400
|
Exter diam
|
Inter diam
|
length
|
48
|
1100 x 1100 x 940
|
864kgs
|
|
270
|
76
|
260
|
64
|
1100 x 1100 x 1180
|
1152kgs
|
|
