Quick Details
-
Model Number:
-
Q614F-16P Pneumatic Ball Valve
-
Brand Name:
-
YIRUITE
-
Media:
-
Base, Water, Air, Gas, Oil, Liquid, Steam
-
Item:
-
Pneumatic 3 Way Screw Ball Valve
-
Material:
-
cf8m, cf8, wcb, SS304/316
-
Air Supply Pressure:
-
2.5 to 8bar
-
Acting Mode:
-
Double Acting, Single Acting (Spring Return)
-
Sealing Material:
-
NBR, EPDM, PTFE
-
Pressure:
-
1.0-1.6MPa
-
End Connection:
-
socket, flange, threaded/screw
-
Body structure:
-
3 way ball valve (T port or L port)
-
Type:
-
Pneumatic Ball Valve, BALL VALVES
Quick Details
-
Port Size:
-
1/2" to 4", DN15 to DN100
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Q614F-16P Pneumatic Ball Valve
-
Brand Name:
-
YIRUITE
-
Media:
-
Base, Water, Air, Gas, Oil, Liquid, Steam
-
Item:
-
Pneumatic 3 Way Screw Ball Valve
-
Material:
-
cf8m, cf8, wcb, SS304/316
-
Air Supply Pressure:
-
2.5 to 8bar
-
Acting Mode:
-
Double Acting, Single Acting (Spring Return)
-
Sealing Material:
-
NBR, EPDM, PTFE
-
Pressure:
-
1.0-1.6MPa
-
End Connection:
-
socket, flange, threaded/screw
-
Body structure:
-
3 way ball valve (T port or L port)
-
Type:
-
Pneumatic Ball Valve, BALL VALVES
|
Item
|

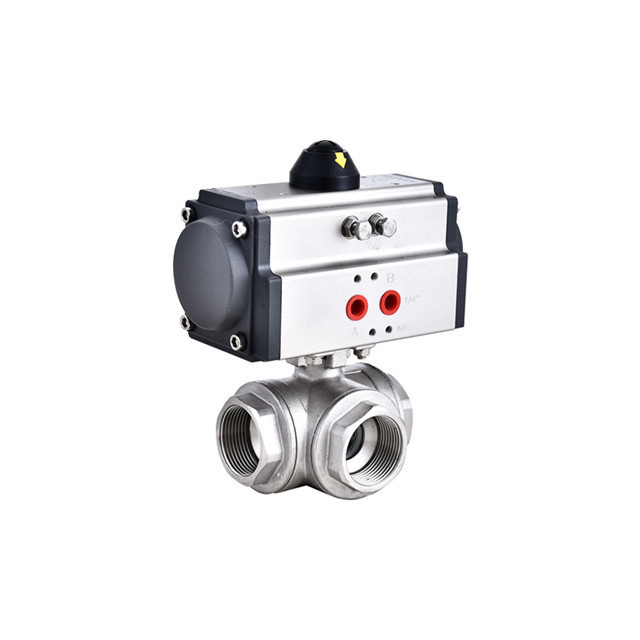

YIRUITE Air Actuated Valve Pneumatically Control 1/2 Inch Three Way Female Threaded Screw Ball Valve
|
|
|
||
|
Applicable Standards
|
GB, DIN, ANSI, ASME, JIS, API
|
|
|
||
|
Size Range
|
DN15 to DN100, 1/2" to 4"
|
|
|
||
|
Acting Mode
|
Double Acting, Sping Return (Single Acting) are Available
|
|
|
||
|
Air Supply Pressure
|
2.5 to 8bar
|
|
|
||
|
Operating Pressure
|
PN1.0 to 6.4MPa
|
|
|
||
|
Output Torque
|
14 to 1170Nm
|
|
|
||
|
Lifespan
|
1,000,000 (1 Million) Times
|
|
|
||
|
Angle of Rotation
|
90° ±4°
|
|
|
||
|
Shell Material
|
Aluminum Alloy Extruded
|
|
|
||
|
Body Material
|
Stainless Steel
|
|
|
||
|
Sealing Material
|
NBR, EPDM, FKM (VITON), PTFE
|
|
|
||
|
Core Material
|
Stainless Steel
|
|
|
||
|
Structure
|
3 way, L Type or T Type
|
|
|
||
|
End Connection
|
Female Thread, Butt Welding
|
|
|
||
|
Applicable Media
|
Control of Water, Air, Gas, Oil, Liquid, Steam
|
|
|
||
|
Temp. of Media
|
Range from -10 to +80°C (14 to 176°F) with NBR Sealing
|
|
|
||
|
Ambient Temp.
|
-20 to +180°C (Reinforced PTFE), -20 to +300°C (PPL)
|
|
|
||
|
Optional Accessories
|
Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
|
|
|
||
|
Application
|
Food & Beverage, Refining, Desalination, Petrochemical, Chemical, Pharmaceutical, Textile, Pulp & Paper, Mining, Marine and Power Industries
|
|
|
||
|
Lubrication
|
There is no need for lubrication for standard type under normal operating conditions. Special lubricants should be used under low or high temperature operating conditions
|
|
|
||
FAQ
Q1. Is the sample order acceptable?
A: Yes, of course.
Q2. What is your MOQ?
A: 1 PCS.
Q3. What is the delivery time?
A: It is about 5-7 days after we receive the payment.
Q4. How to make the payment?
A: We accept T/T, Paypal, Ali Trade Assurance.
Q5. Do you have products in stock?
Yes, some stock can be shipped out within 3 days.
Q6. Do you test all your goods before delivery?
A: Yes, all products are fully inspected before delivery.
Q7. What is the warranty?
A: Our warranty is one year. After you receive the goods, if you find defect products, just take pics or videos to send us. We will re-make it for re-fund them to customers once we confirm it is our responsibilities.
Q8. What is the size of your factory?
A: We have 150 employees 100 CNC lathes and 30 employees responsible for quality inspection, so please rest assured of our quality and delivery date
