Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MWK
-
Voltage:
-
380V, 50Hz
-
Power (kW):
-
350
-
Weight:
-
15000 KG
-
Type:
-
Pipe Production Line
-
Pipe Material:
-
UPVC/CPVC
-
Certification:
-
CE ISO
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
U PVC/C PVC Pipe Production Line
-
After Warranty Service:
-
Video technical support,Online support,Spare parts
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
28:1
-
Screw Speed (rpm):
-
95 rpm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MWK
-
Voltage:
-
380V, 50Hz
-
Power (kW):
-
350
-
Weight:
-
15000 KG
-
Type:
-
Pipe Production Line
-
Pipe Material:
-
UPVC/CPVC
-
Certification:
-
CE ISO
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
U PVC/C PVC Pipe Production Line
-
After Warranty Service:
-
Video technical support,Online support,Spare parts
-
Marketing Type:
-
Ordinary Product
Product Description
Specification
U PVC/C PVC Pipe Production Line
Application & Features:

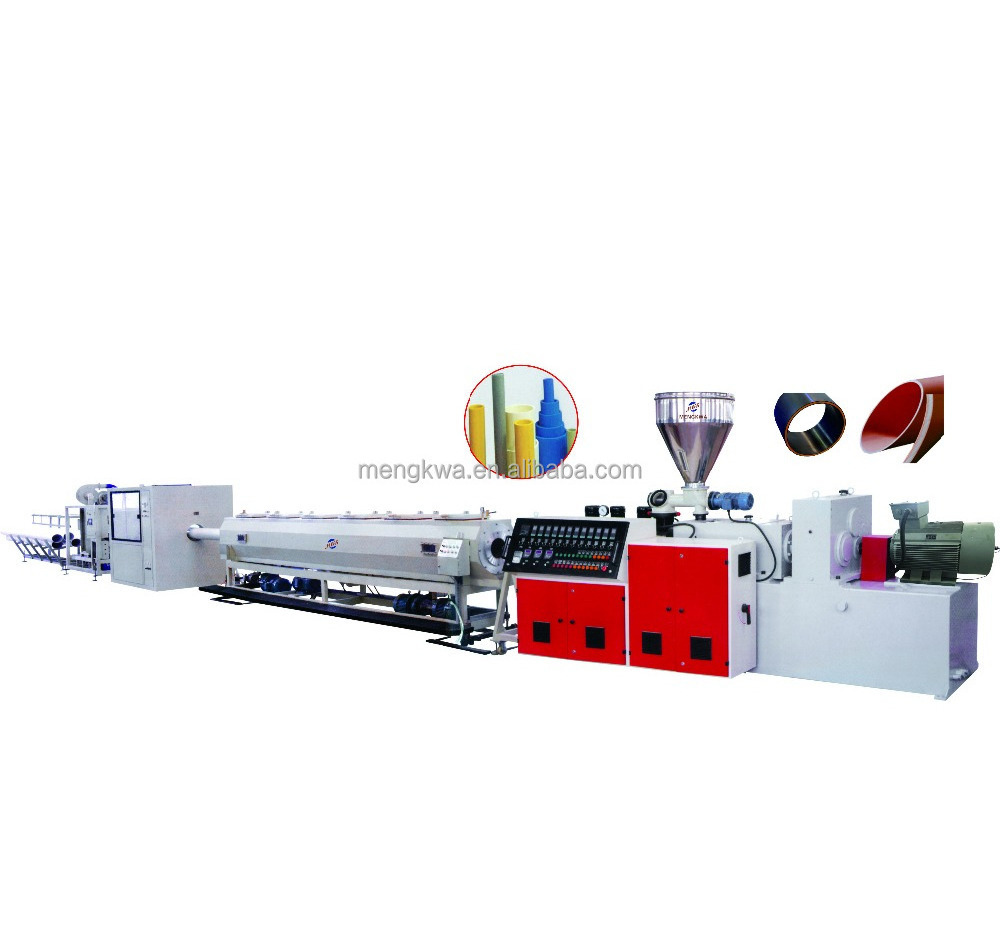

Plastic pipe production line is mainly used in the area of agricultural,architectural irrigation and drainage system,cable pavement,etc.Total line consist of plastic extruder,mould,vacuum calibrating tank,haul-off unit,cutting unit,stacker,etc.According to different size of pipe,the haul-off unit can be two claws,three claws,four claws,six claws,eight claws,etc.The cutting machine can be saw cutting or planetary cutting.
Main Technical Parament:
|
Type
|
Diameter
|
Extruder
|
Capacity
|
Power(kw)
|
|
GF63S(double pipe)
|
16-40
|
SJSZ65/132
|
180-250
|
105
|
|
GF160
|
63-160
|
SJSZ65/132
|
180-250
|
100
|
|
GF250
|
90-250
|
SJSZ65/132
|
180-250
|
170
|
|
GF315
|
110-315
|
SJSZ80/156
|
250-350
|
198
|
|
GF450
|
200-450
|
SJSZ92/188
|
650-750
|
290
|
|
GF630
|
315-630
|
SJSZ92/188
|
650-750
|
350
|
