Quick Details
-
Size(mm):
-
240x240x980m
-
Unlock time:
-
0.2s
-
Pass rate:
-
35 person /min
-
Pass width:
-
>550mm
-
Driving voltage:
-
100V~240V
-
Motor voltage:
-
24v
-
Environment:
-
-25~+70
-
Power consumption:
-
35w
-
input:
-
12v dry contact
-
Optional:
-
Access control
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XIMI
-
Model Number:
-
ST102B
-
Size(mm):
-
240x240x980m
-
Unlock time:
-
0.2s
-
Pass rate:
-
35 person /min
-
Pass width:
-
>550mm
-
Driving voltage:
-
100V~240V
-
Motor voltage:
-
24v
-
Environment:
-
-25~+70
-
Power consumption:
-
35w
-
input:
-
12v dry contact
-
Optional:
-
Access control
Product Description

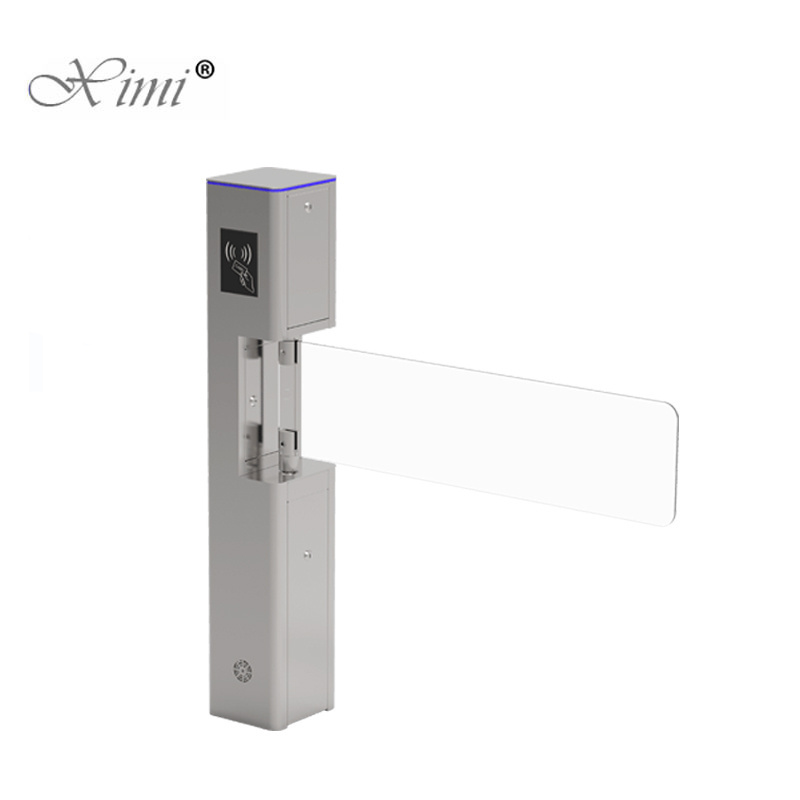

ST Serious is a swing barrier with a modular design that realizes fast switching between different readers. And reader
installation can be completed by merely pull-out and plug-in. After installing the corresponding readers, ST Serious can support multiple verification methods, including RFID, fingerprint, QR code, palm verification and visible light facial recognition.
Especially, palm verification and visible light facial recognition can realize touchless entrance control that avoids hands
exposing to bacteria and boost public hygienic security.
installation can be completed by merely pull-out and plug-in. After installing the corresponding readers, ST Serious can support multiple verification methods, including RFID, fingerprint, QR code, palm verification and visible light facial recognition.
Especially, palm verification and visible light facial recognition can realize touchless entrance control that avoids hands
exposing to bacteria and boost public hygienic security.
Features:
1. Problem-self-checking function.
2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel
this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, swing barrier will alarm untill passenger get back from the swing
barrier and then take a valid card to be read for passing.
7. Swing barrier is with 485 interface for long-distrance control concern.
8. Anti-rush function: If there is no open single, arm will be holding tightly.
9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force.Also it will alarm.
10. Swing barrier is with standard electrical interface for the integration of various readers and writers.
11. Swing barrier can count how many passenger has passed and will show it in the LED display (Optional).
12. Direction display to guide passenger which direction is to go.
13. Card-reading with memory or without memory function.
14. Swing barrier can control the population inside in the control of software
2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel
this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, swing barrier will alarm untill passenger get back from the swing
barrier and then take a valid card to be read for passing.
7. Swing barrier is with 485 interface for long-distrance control concern.
8. Anti-rush function: If there is no open single, arm will be holding tightly.
9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force.Also it will alarm.
10. Swing barrier is with standard electrical interface for the integration of various readers and writers.
11. Swing barrier can count how many passenger has passed and will show it in the LED display (Optional).
12. Direction display to guide passenger which direction is to go.
13. Card-reading with memory or without memory function.
14. Swing barrier can control the population inside in the control of software
Specification
|
Power Requirements
|
AC 100 ~ 120V / 200 ~ 240V, 50 / 60Hz
|
|
Working Temperature
|
-28°C ~ 80°C
|
|
Working Humidity
|
20% ~ 95% (non-condensing)
|
|
Working Environment
|
Indoor / Outdoor (if sheltered)
|
|
Lane Width (mm)
|
550 (Customized)
|
|
Infrared Sensor
|
None
|
|
Dimension (L*W*H)
|
240 * 240 * 980 (mm)/420*480*980(mm)/168*980(mm)
|
|
Dimension with Packing (L*W*H)
|
320* 320 * 1170 (mm)
|
|
Weight with Packing (kg)
|
50KG
|
|
LED Indicator
|
Support
|
|
Cabinet Material
|
SUS304 Stainless Steel
|
|
Lid Material
|
SUS304 Stainless Steel + Acrylic
|
|
Barrier Material
|
Acrylic/SUS304 Stainless Steel
|
|
Barrier Movement
|
Swing
|
