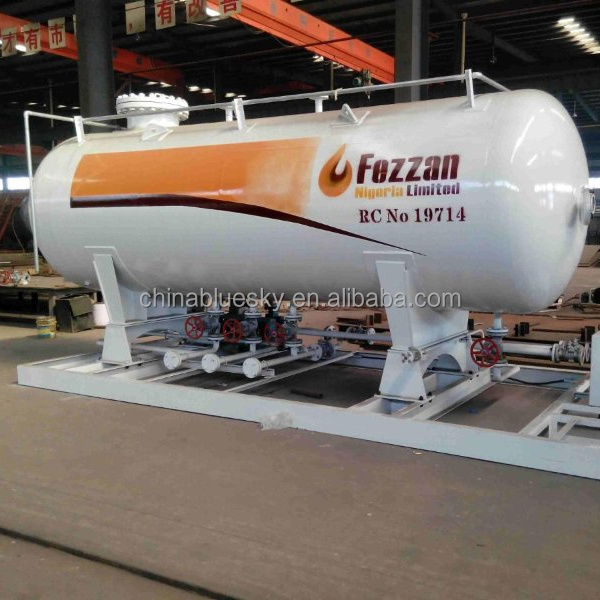

Quick Details
-
Material:
-
Q345R
-
Thickness:
-
10mm
Quick Details
-
Max Working Pressure(MPa):
-
2.65 MPa
-
Place of Origin:
-
China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Material:
-
Q345R
-
Thickness:
-
10mm
|
CAPACITY
m3 |
DN | Thickness | WEIGHT(kg) | SIZE |
Distance between the saddle
(L2) |
Level gauge spacing
(L3) |
Straight length
(L1) |
Saddle mounting holes distance
(L4) |
Saddle plate L*W
(L4) |
|||
| barrel | Double elliptic head | BODY | filling amount | L*W*H(mm) | ||||||||
| 5 | 1200 | 8 | 8 | 1560 | 2520 | 4803*1216*1810 | 3200 | 1400 | 3980 | 720 | 880*170 | |
| 6 | 1600 | 10 | 10 | 2030 | 1995 | 4300*1620*2210 | 1380 | 1840 | 2200 | 960 | 1120*200 | |
| 10 | 1600 | 10 | 10 | 2895 | 3990 | 5285*1620*2200 | 3400 | 1800 | 4400 | 960 | 1120*200 | |
| 15 | 1800 | 12 | 12 | 4190 | 5985 | 6307*1824*2400 | 4300 | 2000 | 5250 | 1120 | 1280*220 | |
| 20 | 2000 | 12 | 12 | 4930 | 7980 | 6837*2024*2600 | 4730 | 2200 | 5650 | 1260 | 1420*220 | |
| 25 | 2200 | 12 | 14 | 6020 | 9975 | 7008*2224*2814 | 4600 | 2440 | 5800 | 1380 | 1580*240 | |
| 30 | 2200 | 12 | 14 | 6670 | 15120 | 8504*2224*2800 | 5900 | 2400 | 7100 | 1380 | 1580*240 | |
| 40 | 2600 | 14 | 16 | 8890 | 20160 | 8106*2628*3200 | 5200 | 2900 | 6600 | 1640 | 1880*300 | |
| 45 | 2600 | 14 | 16 | 8890 | 15960 | 9106*2628*3200 | 6700 | 2900 | 6600 | 1640 | 1880*300 | |
| 50 | 2600 | 14 | 16 | 10640 | 25200 | 10000*2628*3200 | 7100 | 2900 | 8500 | 1640 | 1880*300 | |
| 55 | 2600 | 14 | 16 | 11472 | 27720 | 27720 10382*2624*3200 | 2900 | 9420 | 1640 | 1880*300 | ||
| 60 | 2700 | 14 | 16 | 12750 | 23940 | 11857*2832*3370 | 7000 | 2940 | 9500 | 1720 | 1960*300 | |
| 70 | 2800 | 16 | 16 | 14631 | 37800 | 12050*2832*3400 | 3000 | 11170 | 1800 | 2040*300 | ||
| 80 | 3100 | 16 | 18 | 17000 | 31920 | 11166*3132*3722 | 7000 | 3340 | 9500 | 1970 | 2260*360 | |
| 100 | 3200 | 18 | 18 | 21800 | 39900 | 13016*3236*3826 | 8800 | 3440 | 11300 | 2100 | 2340*360 | |
| 120 | 3400 | 18 | 20 | 24960 | 47880 | 13820*3436*4026 | 9500 | 3640 | 12000 | 2200 | 2480*380 | |
| 200 | 3800 | 22 | 22 | 41530 | 100000 | 18512*3844*4400 | 14400 | 4000 | 16300 | 2500 | 2780*380 | |
