Quick Details
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated-need CPU support
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Support LGA1151 and Intel 6th and 7th i3-i5-i7/Pentium/Celeron CPU
-
chipset:
-
H110/H170 high speed Chipset
-
Memory:
-
1 *DDR4 SODIMM 260 Socket
-
Internet:
-
1*RTL8111E gigabit Lan Port
-
Input /output Port:
-
3*USB3.0, 3*USB2.0, 1*RS-232,
-
Expansion wires:
-
1*Mini-PCIe slot for PCIe and USB device
-
Storage:
-
1* standard SATAIII interface, 1*SATA_HDD Port
-
power type:
-
Single input DC power supply, DC12-19V
-
Power consumption:
-
35W
-
Size:
-
170*190mm
Quick Details
-
Maximum Ram Capacity:
-
8GB
-
Application:
-
Server/Workstation
-
Form Factor:
-
X86
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated-need CPU support
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Support LGA1151 and Intel 6th and 7th i3-i5-i7/Pentium/Celeron CPU
-
chipset:
-
H110/H170 high speed Chipset
-
Memory:
-
1 *DDR4 SODIMM 260 Socket
-
Internet:
-
1*RTL8111E gigabit Lan Port
-
Input /output Port:
-
3*USB3.0, 3*USB2.0, 1*RS-232,
-
Expansion wires:
-
1*Mini-PCIe slot for PCIe and USB device
-
Storage:
-
1* standard SATAIII interface, 1*SATA_HDD Port
-
power type:
-
Single input DC power supply, DC12-19V
-
Power consumption:
-
35W
-
Size:
-
170*190mm

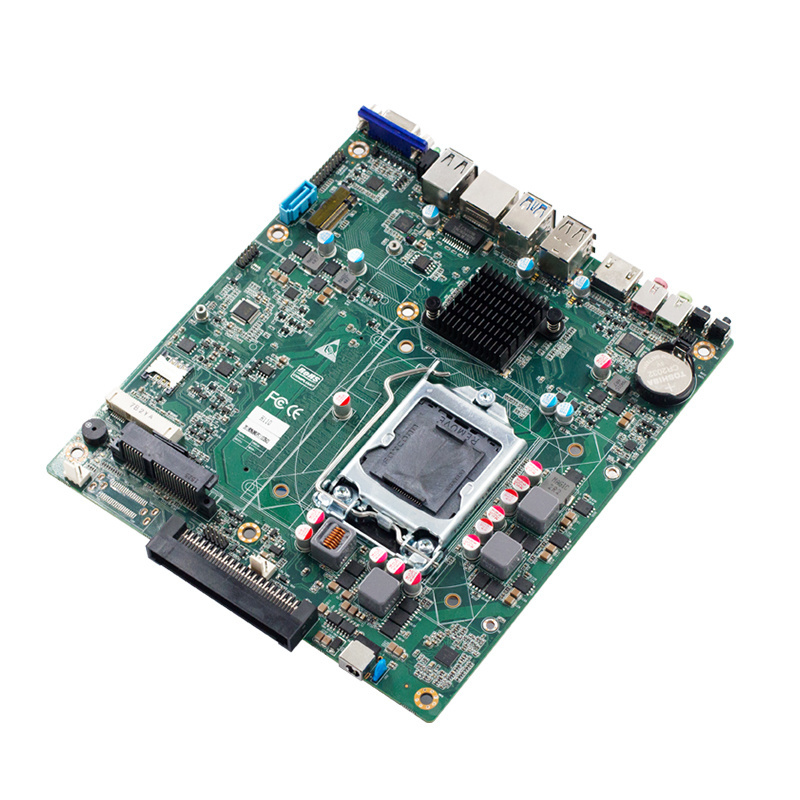

OPS Intel LGA1151 Pentium/Celeron I3/I5/I7 processor motherboard H110 chipset max 8GB DDR4 socket laptop motherboards
Mainfeatures:
1. Support LGA1151 socket Intel 6 th and 7 th i3-i5-i7/Pentium/Celeron CPU
2. H110/H170 high-speed chipset
3. 1 *DDR4 SODIMM 260 Socket
4. 1*VGA 1*HDMI
5. 1*RS232 Com
6. 1*NGFF High speed data transmission interface(support 42*22mm)
7. Support OPS-C+ expansion
8. Single input DC power supply, DC12-19V power supply
Specification
|
Processor |
CPU |
Support LGA1151 and Intel 6 th and 7 th i3-i5-i7/Pentium/Celeron CPU |
|
|
CPU package |
LGA1151 |
|
|
chipset |
H110/H170 high speed Chipset |
|
|
BIOS |
EFI BIOS |
|
Memory |
Technology architecture |
Single channel DDR4 2133/2400MHz |
|
|
Sokcet |
1 * DDR 4 SODIMM 260 Socket |
|
Video |
Graphics controller |
Intel HD Graphics 610 (G4560 Graphic card ); Graphics card model is related to CPU |
|
|
VGA |
VGA support max resolution 2048x1536 |
|
|
HDMI |
support max resolution ( HDMI1.4 ) 4096*2304 support 4k display |
|
I/O back panel |
Port |
1*VGA, 1*HDMI, 1*LAN, 3*USB3.0 3*USB2.0 1*LINE_OUT 1*MIC IN 1*Fast Switch Button 1*Reset Button 1*Power LED 1*HDD LED |
|
Internet |
controller |
1 *RTL8111E gigabit Lan Port |
|
Audio |
controller |
Raychem HD ALC662 audio decoding (LINE-OUT+MIC_IN+LINE-IN) |
|
Super I/O |
controller |
ITE 8613 |
|
Hardware controller |
Watchdog timer |
0-255 seconds, providing a watchdog routine |
|
Input /output Port |
USB |
3*USB3.0 compatible with USB2.0 / 1.1, 3*USB2.0, maximum support +5V/1.5 |
|
|
Com |
1* RS-232, |
|
Expansion wires |
Mini-PCle |
1*Mini-PCIe slot for PCIe and USB devices |
|
|
NGFF |
1 * NGFF Port ( KEY E ) |
|
Storage |
SATA |
1* standard SATAIII interface, maximum transmission rate 6Gb/s |
|
|
SATA_HDD |
1*SATA_HDD Port |
|
|
NGFF |
1 * NGFF Port |
|
Power supply |
Power type |
Single input DC power supply, DC12-19V, + / - 5% |
|
Working temperature |
Power consumption |
35W |
|
|
Working temperature |
-20℃ ~ +60 ℃ |
|
|
Storage temperature |
-40℃ ~ +85 ℃ |
|
|
Working humidity |
0% ~ 90%Relative humidity, no condensation |
|
Size |
Storage humidity |
0% ~ 90%Relative humidity, no condensation |
|
|
Size |
170 * 190 mm |
|
certifications |
|
CE,R o HS,FCC |
