Quick Details
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FSNOAH
-
Model Number:
-
S11-800/35
-
Rated capacity:
-
800KVA
-
High Voltage:
-
35kV
-
Low Voltage:
-
0.4kV
-
No load loss:
-
980W
-
On load loss:
-
940W
-
Material:
-
Copper/Aluminum
-
Insulation level:
-
Class F
-
Cooling:
-
ONAN/ONAF
-
Application:
-
Industrial Power Supplies
-
Warranty:
-
1 Year
Quick Details
-
Usage:
-
Power
-
Phase:
-
Three
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FSNOAH
-
Model Number:
-
S11-800/35
-
Rated capacity:
-
800KVA
-
High Voltage:
-
35kV
-
Low Voltage:
-
0.4kV
-
No load loss:
-
980W
-
On load loss:
-
940W
-
Material:
-
Copper/Aluminum
-
Insulation level:
-
Class F
-
Cooling:
-
ONAN/ONAF
-
Application:
-
Industrial Power Supplies
-
Warranty:
-
1 Year
Products Description
Voltage Available: 10kV, 11kV, 15kV, 20kV, 33kV, 35kV... ...to110kV. Voltage can be customized.
Use new structure, with reasonable design. Optimize the insulation technology, improve the mechanical strength and anti short circuit ability. The core is made of high quality cold rolled silicon steel, the surface coating paint, with low loss and noise. The appearance is fancy, with easy and reliable operation.
Product Features
▶
using the corrugated tank sealing structure, enclosure, to prevent contact with air, water in contact with the transformer, reducing the degree of aging of the oil, to extend the service life of the transformer; Through the elastic deformation of corrugated to adjust the volume change of transformer oil heat bilges cold shrink.
▶
the product structure for the outdoor type, oil-free pillow,anti-fouling high level; ensure safe operation and reliability of the grid.
▶
the transformer has a pressure release safety devices, when a transformer failure pressure is too high. It can be safely released reliably through the pressure relief valve to prevent the expansion of the accident.
Technical Parameter
|
S11 Series 35kV 50~2500kVA Oil-Immersed Transformer
Technical Specification Data
|
|
|
|
|
|
|
|
|
||||||||
|
Rated
Capacity
|
Voltage Composition
|
|
|
Vector
Group
|
No-load
power
（W）
|
Load Loss
(75℃)
(W)
|
Current
(%)
|
(%)
|
||||||||
|
|
High
Voltage
(kV)
|
Tapping Range
|
Low Voltage
(kV)
|
|
|
|
|
|
||||||||
|
50kVA
|
35
38.5
|
±5％
or
±2×2.5％
|
0.4
|
Dyn11
or
Yyn0
|
160
|
1200/1140
|
1.3
|
|
||||||||
|
100kVA
|
|
|
|
|
230
|
2010/1910
|
1.1
|
|
||||||||
|
125kVA
|
|
|
|
|
270
|
2370/2260
|
1.1
|
|
||||||||
|
160kVA
|
|
|
|
|
280
|
2820/2680
|
1.0
|
|
||||||||
|
200kVA
|
|
|
|
|
340
|
3320/3160
|
1.0
|
|
||||||||
|
250kVA
|
|
|
|
|
400
|
3950/3760
|
0.95
|
|
||||||||
|
315kVA
|
35
38.5
|
|
|
|
480
|
4750/4530
|
0.95
|
|
||||||||
|
400kVA
|
|
|
|
|
580
|
5740/5470
|
0.85
|
|
||||||||
|
500kVA
|
|
|
|
|
680
|
6910/6580
|
0.85
|
|
||||||||
|
630kVA
|
|
|
|
|
830
|
7860
|
0.65
|
|
||||||||
|
800kVA
|
|
|
|
|
980
|
9400
|
0.65
|
|
||||||||
|
1000kVA
|
|
|
|
|
1150
|
11500
|
0.65
|
|
||||||||
|
1250kVA
|
|
|
|
|
1400
|
13900
|
0.6
|
|
||||||||
|
1600kVA
|
|
|
|
|
1690
|
16600
|
0.6
|
|
||||||||
|
2000kVA
|
|
|
|
|
1990
|
19700
|
0.55
|
|
||||||||
|
2500kVA
|
|
|
|
|
2360
|
23200
|
0.55
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
||||||||
Product Details

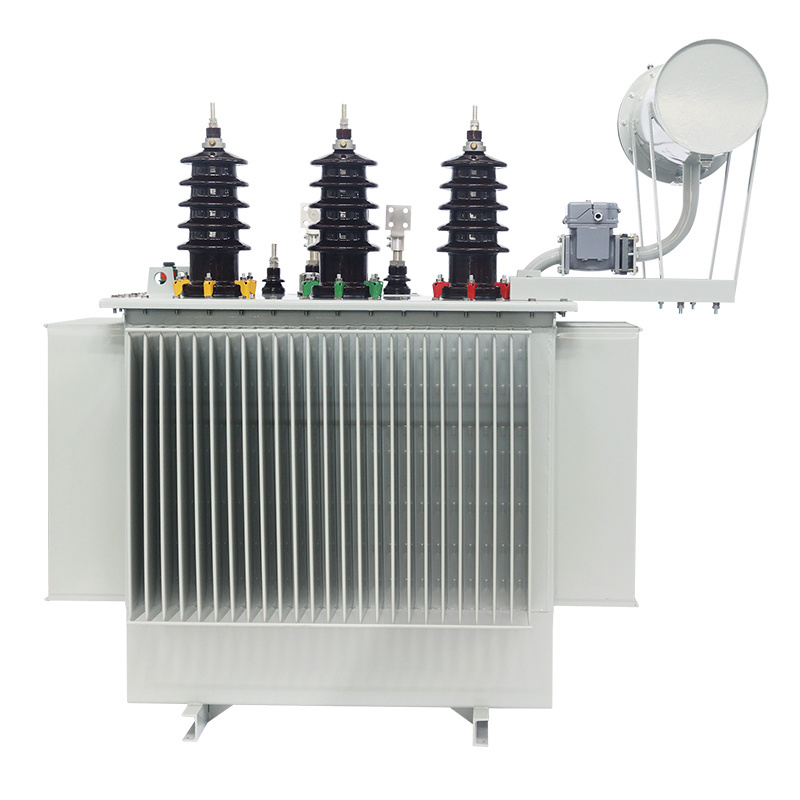

Oil-immersed transformer body
Oil-immersed transformer core
High voltage terminal
Low voltage terminal
conservator tank
Oil-immersed transformer tank
Production Equipment
German
Georg
600 mm silicon steel sheet transverse shear line
600mm Georg line
600mm Georg line
Production workshop
Winding workshop
Italian LAE foil type winding machine
Foil machine
Epoxy pouring pot
Drying oven
Test Equipment
Lightning impulse test device
Test transformer for 250kV
Partial dischange coupling capacitor
Comprehensive performance test board
Multifunctional automatic oscillation instrument
Air generator
Chromatograph
Transformer voltage ratio tester
Automatic insulating oil dielectric strength tester
