SDCAD Brand unloading equipment gravel aggregate Bulk Truck Loading System Feeding mobile screw conveyor feeder

FOB Reference Price: Get Latest Price

≥1 Sets

US $3250

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: SDCAD

Voltage:: Local working voltage

Dimension(L*W*H):: Based on customization

Marketing Type:: Customized products

Weight (KG):: 8500 kg

Application:: Conveying

After-sales Service:: Engineer Site Service + Online Support

Capacity:: 10~160 T/h

Installation:: Engineer's Guide

Advantage:: 20 Years Production Experiences

Feature:: Simple Operation

Function:: Conving Equipment

Control System:: Automatically Control

Quick Details

Power:: 2.2 KW

Warranty:: 2 years

Width or Diameter:: Based on customization

Place of Origin:: Shandong, China

Brand Name:: SDCAD

Voltage:: Local working voltage

Dimension(L*W*H):: Based on customization

Marketing Type:: Customized products

Weight (KG):: 8500 kg

Application:: Conveying

After-sales Service:: Engineer Site Service + Online Support

Capacity:: 10~160 T/h

Installation:: Engineer's Guide

Advantage:: 20 Years Production Experiences

Feature:: Simple Operation

Function:: Conving Equipment

Control System:: Automatically Control

Product Overview

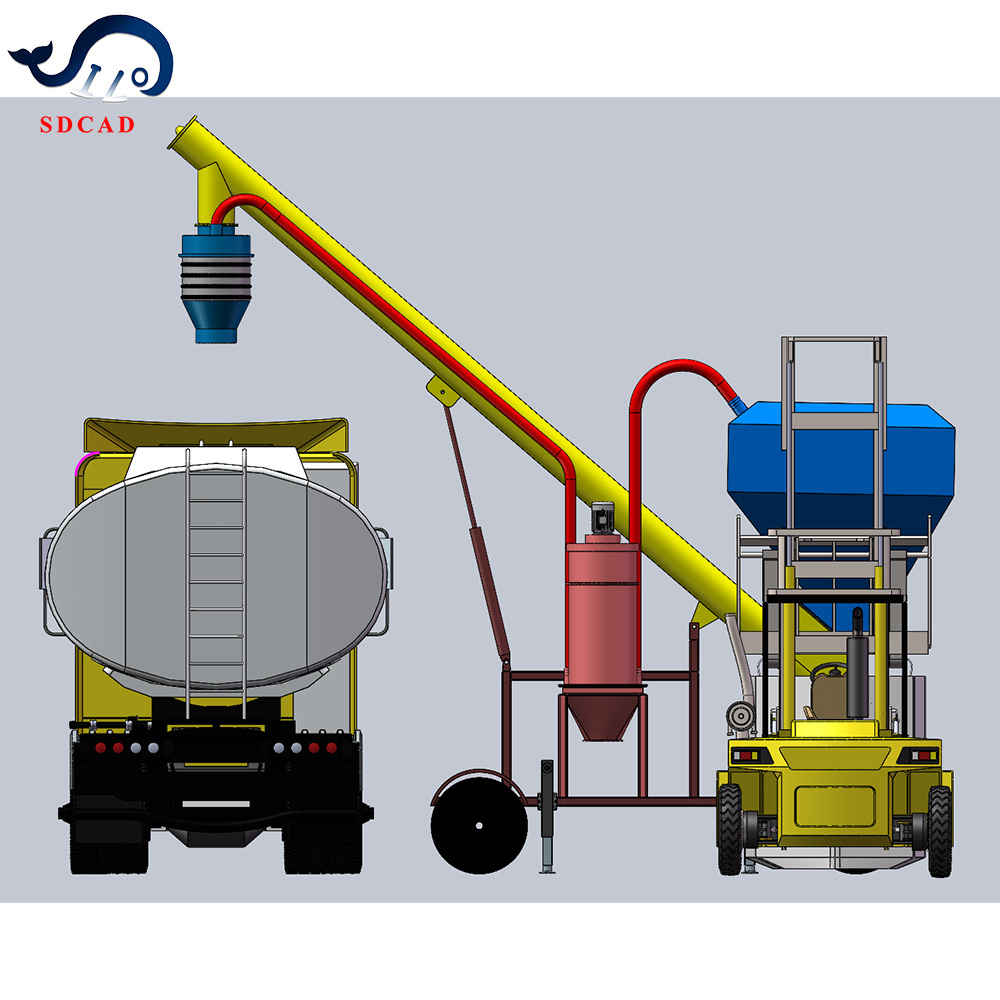

SDCAD MOBILE BULK TRUCK LOADER

Big bag discharging and bulk truck loading system-SDCAD

What is a bulk truck loader?
A bulk truck loader is a loading machine that allows automatic, dust-free packaging of products in 25kg bags, big bags and even loose bulk goods into silo trucks, rail wagons and even cargo ships.
Loading dry bulk goods in big bags
Do you want to load bulk goods packed in big bags? Or loose bulk goods that are loaded with a shovel? The Dino bulk truck loader can handle both, at a basic capacity of 45m³ per hour and a maximum capacity of 90m³ per hour. This means that, on average, you can fill a silo truck or container in 45 to 60 minutes. Even if these are products that have poor flow properties. Because the
mobile bulk truck loader is easy to move, loading in different locations is no problem.
Loading more in a shorter time
Greater loading capacity is within easy reach with a Dino bulk truck loader. As a loader or logistics service provider, you will attract (new) loading requests from customers. Will the investment pay for itself? From over 30 years’ experience, we can confirm That it definitely does! Soon after purchasing a loader, many of our customers wonder how they ever managed without one for so long. The most important benefits they talk about are the time savings and improved safety for their employees.

Bulk loding Machine

BENEFITS OF A MOBILE BIG BAG DISCHARGING AND BULK TRUCK LOADING SYSTEM SDCAD’s mobile big bag discharging and bulk truck loading system guarantees safe working practices and ensures large capacity deliverance of dry bulk materials within a short period.

Other benefits which our bulk truck loader offers are:

1:cost-effective;

2: low maintenance and easier to clean;

3: easy manoeuvrability within a plant;

4:adjustable loading spout for different heights;

5: environmental friendly as well as operator’s safety;

6:no dust emission and bulk material loss prevention;

7lproblem-free which allows it to be used for a long period without maintenance.

The Type : Mobile and Semi-Mobile

The speed: 10 -160t/h per machine

Application : Cement, fly ash, starch, sugar, salt, sand, plastic pellets, oats, polymers, lime, soda ash, plastic resin, plastic powder, dry milk, and feeds

Full Process Solution Provider SDCAD

Item	Specifications	item	Specifications
Hopper	3m3	Bulk cement loader flexible range	1.2m The length can be customized
Delivery capacity	50t/h	Dust collector	Configuration fan is 4KW
Screw conveyor	323*10m	Wheels	Enlarge the car tires and widen the brackets

MOBILE BULK TRUCK LOADER

DUST COLLECTOR WITH BLOWER information

Filtration area	24m2	Filtration efficiency	﹥99.9%
Wind capacity	2400m3/h	Compressed air	4-6 bar
Cleaning method	Pulse air-jet cleaning continuous working	Fan	4KW
Noise	﹤75dB	model	square type

FEATURES AT A GLANCE

Our loading bellows are your smart option

1.Efficient and reliable operation, easy to meet your dust-free and safety loading into tanks, trucks and carriers, or onto storage yard.

2.Modular product structure and serialization products may meet the most requirements about bulk and powder loading.
3.The whole assembly and painstaking factory inspection and test can make the field installation more convenient.
4.Freely providing the high performance methods and suggestion of bulk loading and dust collecting with reasonable cost.

Change work site

PRODUCT SPECIFICATIONS

Bulk Material Loading Bellows

1) Stop automatically when truck full. 2) Stop automatically when reach max length. 3) Support remote control. 4) Max/Min unloading height is customized. Standard: Max 4.5m. Min 3.3m 5) Low noise, Anti-rain. 6) With dust collecting system. Clean when unloading. 7) Stroke of feeding machine 1.2m.

Advantages of SDCAD Bulk Material Loading Bellows

he advantages of the mobile bulk truck loader:
* It is mobile. The whole system is connected to a wheeled mobile chassis that allows the transportation of the system to the desired location by tow bar, forklift or vehicle.
* It is functional. The screw conveyor can be brought to horizontal position when the system is moved to another location. With this compact form, it can be loaded in a truck and brought to any place you desire.
* It saves time. Efficient discharging of big bags and dust-free loading of bulk trucks at the same time. The system can transfer a big bag in only 1,5 – 2 minutes.
* It is easy to operate. One man can handle both discharging big bags and loading tanker at the same time. With the help of big bag cutting knives, the forklift operator does not have to get off the vehicle.
* It is remote. You can control the whole operation with a remote controller.
* It is problem-free. It can work a long time without any need for maintenance.
* It is suitable for uneven ground. The screw jack leveling legs can be adjusted for any uneven ground for safe operation.
* It is adjustable. The loading bellow can be extended and retracted concerning the height of the bulk truck.
* It is environmentally friendly. The system has a built-in dust collection system. In this way, the dust is not released to the
atmosphere, captured and transferred to the truck to prevent material loss.
