Quick Details
-
Model Number:
-
TWD11-32
-
Max. Current:
-
32A
-
Mechanical Life:
-
20000 times
-
model specification:
-
TWD11-4P
-
Rated insulation voltage:
-
690V
-
Given heating current:
-
32A
-
Rated work volt:
-
380V
-
AC-21B Icw-A Is:
-
384
-
Rated work current:
-
32A
-
Product Name:
-
YZTW TWD11
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YZTW
-
Model Number:
-
TWD11-32
-
Max. Current:
-
32A
-
Mechanical Life:
-
20000 times
-
model specification:
-
TWD11-4P
-
Rated insulation voltage:
-
690V
-
Given heating current:
-
32A
-
Rated work volt:
-
380V
-
AC-21B Icw-A Is:
-
384
-
Rated work current:
-
32A
-
Product Name:
-
YZTW TWD11
-
Certification:
-
CE
Product introduction

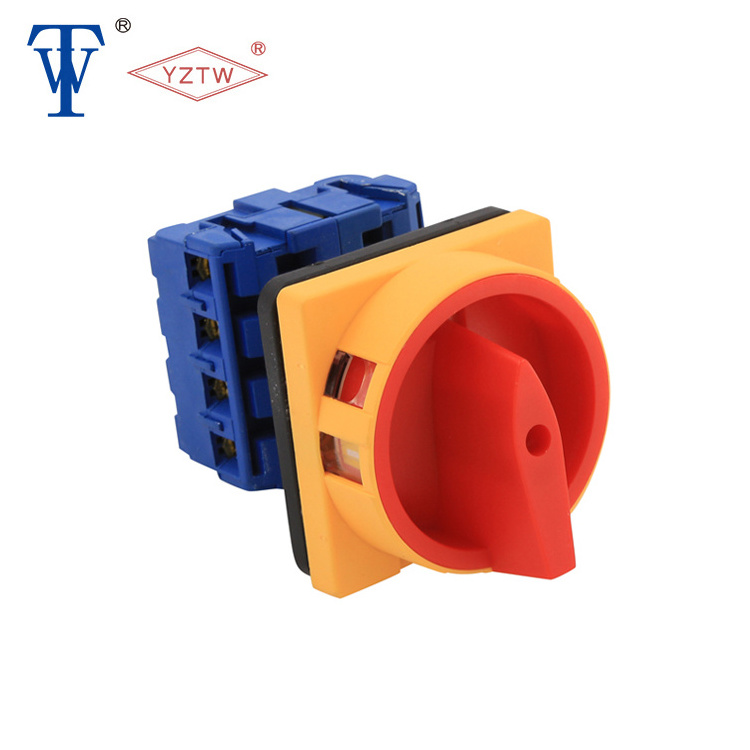

TWD11 series switch is mainly used in AC 50Hz,rated voltage 380V,rated current 20A electric circuit to l00A,used for ventilation,air conditioning water system,can also be used for industrial equipment safety isolation,can directly control the AC motor and electrical equipment circuit .
The product conforms to the standard GB14048.3.
Model and its meaning
Main technical parameters
| model specification | TWDl l-25 | TWDl 1-32 | TWDl 1-40 | TWDl 1-63 | TWDl 1-100 | |
| Rated insulation voltage | 690 | 690 | 690 | 690 | 690 | |
| Given heating current | 25 | 32 | 40 | 63 | 100 | |
| Rated work volt | 380 | 380 | 380 | 380 | 380 | |
| Rated work current | 25 | 32 | 40 | 63 | 100 | |
| AC-21B Icw-A Is | 300 | 384 | 480 | 756 | 1200 | |
Normal work condition
- The ambient air temperature shall not exceed+40°C, the lower limit shall not exceed-25°C, and the average temperature in the 24h shall not exceed+35°C.
- The installation location of the elevation of not more than 2000m; ambient pollution level is not greater than 3.
- When the maximum temperature is+40 °C, the relative humidity of the air is not more than 50%, and the relative humidity can be higher at lower temperature, for exam pie, reaching 90% at the temperature of 20%. Due to temperature change and occasionally produce special measures should be taken.
Outline and installation dimensions
On-off principle can be designed and manufactured according to user's requirements
