Quick Details
-
Coil Number:
-
ISOLATION TRANSFORMER
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Winlong
-
Model Number:
-
WEP35/15
-
Product name:
-
PCB MOUNT TRANSFORMER/POWER TRANSFORMER
-
Type:
-
EI Type
-
Material:
-
Copper or Aluminum windings
-
Application:
-
Power
-
Feature:
-
High Efficiency
-
Advantage:
-
Quickly Delivery Time
-
Keyword:
-
Open Type Isolation Transformer
-
Shape:
-
Squard
-
quality:
-
high
-
MOQ:
-
100pcs
Quick Details
-
Use:
-
Power
-
Phase:
-
Single
-
Coil Structure:
-
EI
-
Coil Number:
-
ISOLATION TRANSFORMER
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Winlong
-
Model Number:
-
WEP35/15
-
Product name:
-
PCB MOUNT TRANSFORMER/POWER TRANSFORMER
-
Type:
-
EI Type
-
Material:
-
Copper or Aluminum windings
-
Application:
-
Power
-
Feature:
-
High Efficiency
-
Advantage:
-
Quickly Delivery Time
-
Keyword:
-
Open Type Isolation Transformer
-
Shape:
-
Squard
-
quality:
-
high
-
MOQ:
-
100pcs
|

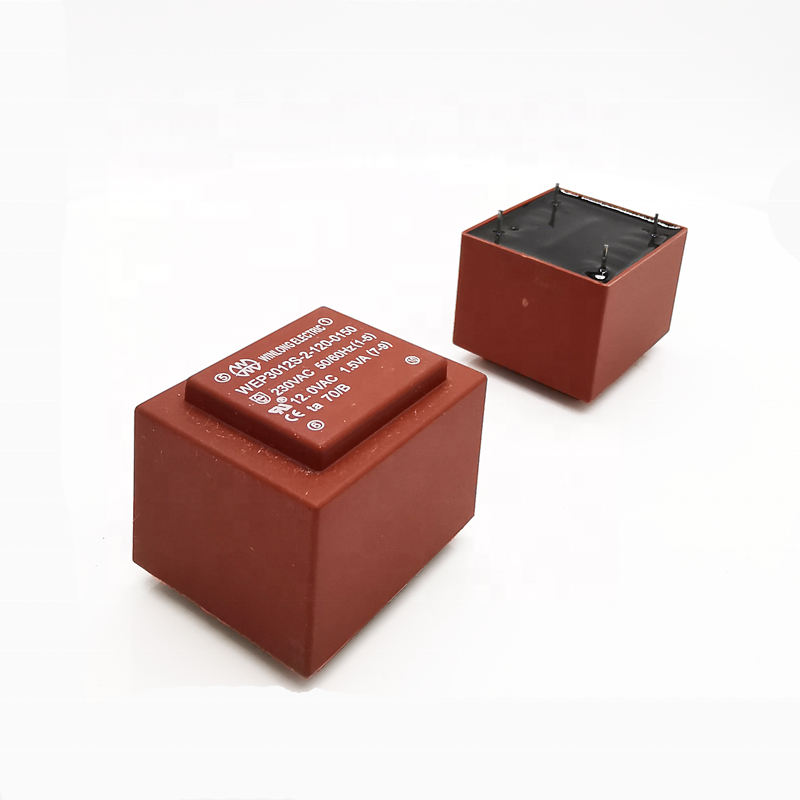

Product Name:
|
PCB Encapsulated Power Transformer
|
|
Model No.:
|
WEP35/15
|
|
Frequency:
|
50/60Hz
|
|
Input voltage:
|
AC 110V 115V 220V 230V CUSTOMIZED
|
|
Output voltage:
|
AC 4V 6V 9V 12V 15V 18V 24V 2X6V 2X9V 2X12V 2X18V 2X24V or CUSTOMIZED
|
|
Capacity:
|
3.5VA
|
|
Dimension:
|
L 38.2mm x W 33mm x H 34.1mm
|
|
Weight:
|
155g
|
|
Dielectric Strength:
|
4500V
|
|
Isolaton Class:
|
130℃/ Class B
|
|
Short-circuit protection:
|
(fuse , thermal switch )Optional
|
|
Phase:
|
Single Phase
|
|
Working Temperature:
|
-40℃ to 125℃
|
|
Test Items:
|
Turns Ratio
|
|
|
Inductance leakage
|
|
|
Phase Test
|
|
|
Inductance leakage
|
|
|
DC resistance test
|
|
|
Withstand voltage
|
|
|
Insulation resistance
|
|
Applications:
|
electric curtain, air conditioner,washing machine control panel,
emergency lighting,humidifier cold storage temperature
controller, remote control electricity, water meters,switching power supply industry,electrical equiptments industry,medical equipments industry,communication equipments industry, solar energy & inverter equipments industry,electric car charger industry,vehicle electronic equipment industry,etc.
|
|
Features:
|
Safety
|
|
|
Vacuum filled casting
|
|
|
Split bobbin design
|
|
|
Short circuit proof
|
|
Features:
|
Large transmission power
|
|
|
Low loss
|
|
|
Low temperature rise
|
|
|
Stable performance
|
