- Product Details
- {{item.text}}
Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Weight (KG):
-
65 KG
-
Core Components:
-
Laser
-
Product name:
-
laser fiber marking machine
-
Model:
-
PEDB-460 Pen Laser Marker
-
Marking Speed:
-
10000mm/s
-
Marking Size(can be customized):
-
100*100mm
-
Minimum character height:
-
0.2mm
-
Marking repeatability:
-
<24 μrad
-
Minimum line width:
-
0.06mm(depending on the machine)
-
Laser wavelength:
-
1064±4nm
-
Laser source:
-
USA IPG Technology
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Working Accuracy:
-
0.05mm/0.02mm
-
Graphic Format Supported:
-
BMP, Dst, Dwg, DXF, LAS, PLT
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Perfect Laser
-
Weight (KG):
-
65 KG
-
Core Components:
-
Laser
-
Product name:
-
laser fiber marking machine
-
Model:
-
PEDB-460 Pen Laser Marker
-
Marking Speed:
-
10000mm/s
-
Marking Size(can be customized):
-
100*100mm
-
Minimum character height:
-
0.2mm
-
Marking repeatability:
-
<24 μrad
-
Minimum line width:
-
0.06mm(depending on the machine)
-
Laser wavelength:
-
1064±4nm
-
Laser source:
-
USA IPG Technology
-
Marketing Type:
-
Ordinary Product

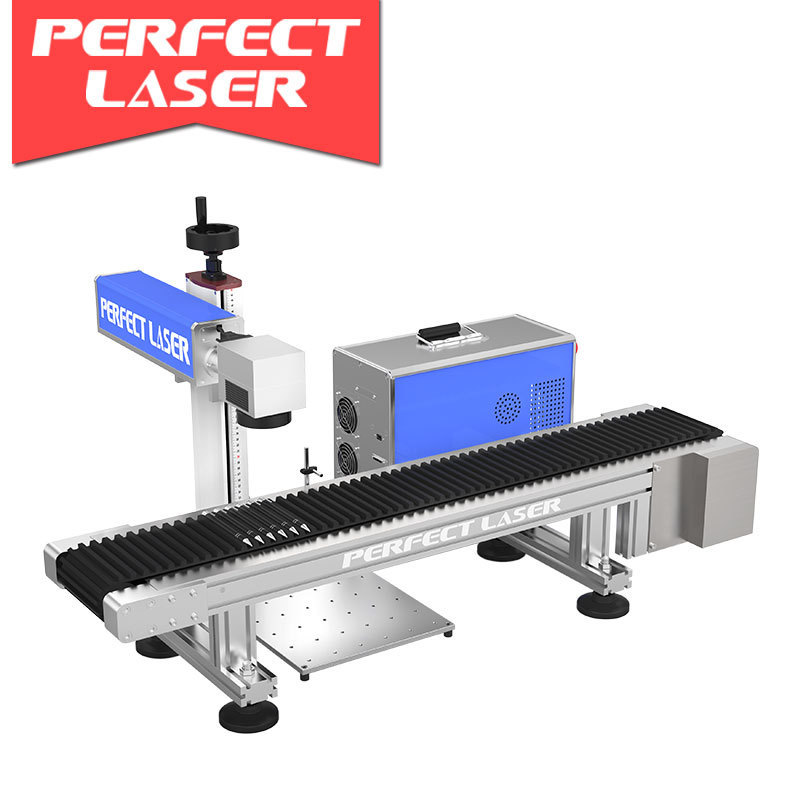

Pen engraving fiber laser marking machine for pens
(Model:PEDB-460)
This fiber laser engraving machine is especially designed for pens that need marking logos, numbers, code, designs and picutures. The marking content is permanet and personalized, with high quality and versatile.
This pen laser engraving machine is equipped with a customized pen conveyor belt. The speed and content can by set in software. There is a sensor to dectect the pen when it passing by and mark them one by one. The numbers of marking quantity also can be counted automatic.
1. Best marking effect of laser marker pen. World famous laser source can guranttee the best marking effect. Also you can choose the MOPA type for color marking.
2. Free maintenance of this laser marker pen. We will set all parameters before delivery. The small laser engraving machine for pens can work without any adjustment when you receive and no other consumptions.
3. 3 years laser source warranty of this pen engraving machine. Other company can only support 1 year or no.
4. Automatic and customized. The pen modules can be tailor- made by the pen size or the marked content. The small laser engraving machine for pens can greatly reduce the labor cost, tool cost, consumable cost.
5. Automatic counting function of the laser marker pen. You can quickly know how many pens have you marked already.
6. Easy for installation: We will supply the installation training video for our dear customers to install the best laser pen engraving machine.
|
Model NO
|
PEDB-460 Pen Laser Engraving Machine
|
|
|
|
|||
|
Type
|
10w
|
20w
|
30w
|
50w
|
|||
|
Marking Speed
|
≤7000mm/s
|
|
|
|
|||
|
Marking Size(can be customized)
|
300*400mm
|
|
|
|
|||
|
Minimum character height
|
0.2mm
|
|
|
|
|||
|
Marking repeatability
|
<24 μrad
|
|
|
|
|||
|
Marking depth
|
0.5mm(depending on the machine)
|
|
|
|
|||
|
Minimum line width
|
0.06mm(depending on the machine)
|
|
|
|
|||
|
power
|
AC 220V 50KHz
|
|
|
|
|||
|
Motor
|
Stepper motor / servo motor (optional)
|
|
|
|
|||
|
Displacement positioning accuracy
|
0.05mm/0.02mm
|
|
|
|
|||
|
Displacement repeat positioning accuracy
|
0.02mm/0.01mm
|
|
|
|
|||
|
Displacement speed
|
100mm/s--300mm/s
|
|
|
|
|||
The pen laser engraving machine is widely used in exquisite patterns, trademarks and text pen marking industry, Applicable materials: gold and silver, stainless steel, iron, aluminum, copper, plastic products and other materials.
