API 7K XQ29 teda sucker rod hydraulic power tong From DYQX petro

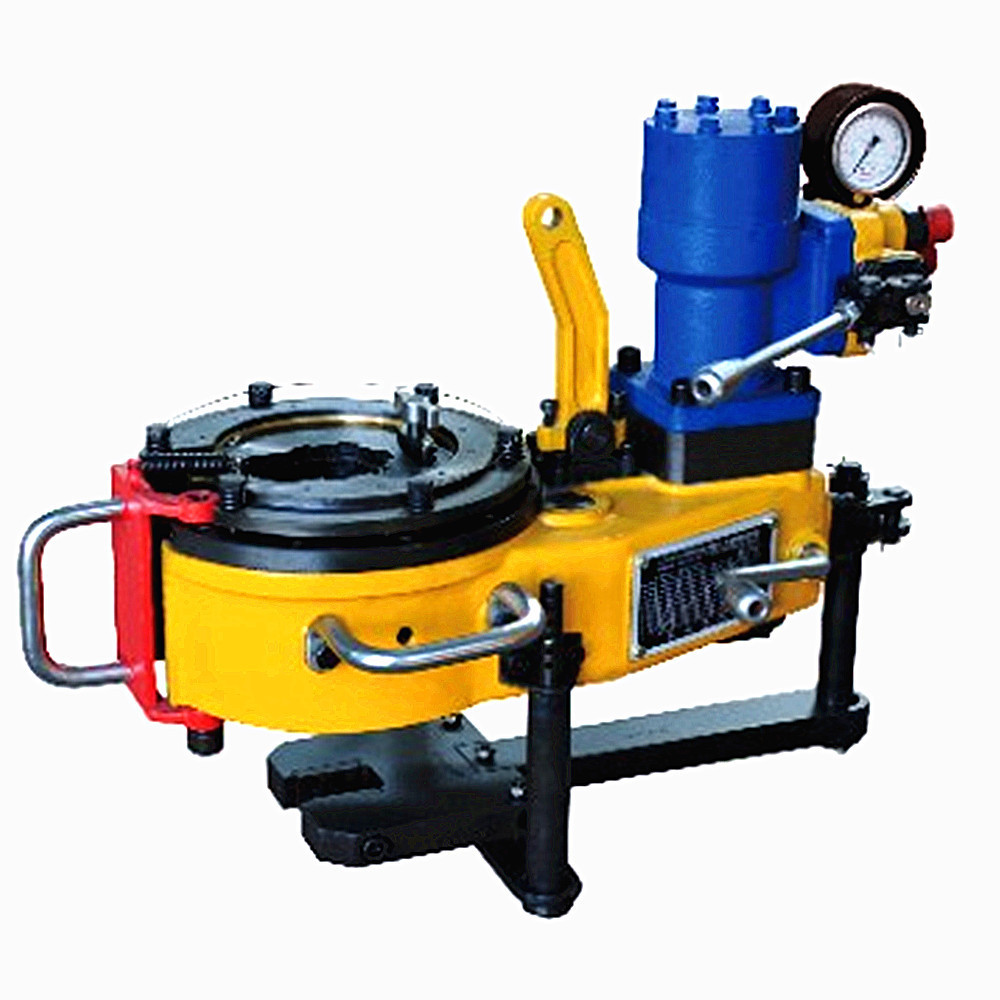

XQ29 teda sucker rod hydraulic power tong

1. Summary

Model XQ29 hydraulic power tong is an improved type of XYQ1.8 which is used to make up and break out sucker rod thread in Well Service. This product has the following features:

A. The structure is compact ,concise and light.Master tong is driven by low speed large torque hydraulic motor which matching with manual control valve. The backup tong just like a spanner. Total weight is approximately equal to XYQ1.8.

B. The operating is briefness and convenience with high efficiency. Put the respondence size jaw set into master tong and the respondence size glutting into backup tong , turning the reset knob in correct direction then can make up and break out sucker rod by operating manual control valve. Two speed,snapping at low speed, spinning at high speed .

C. Large low gear torque,especially suitable for the instance that is difficult to break out sucker rod thread.

2. Specification

3.Picture

Our main products:
Drill Equipment, Well control system,OCTG, Well head tools, camps,drill bit and spray head,drilling instruments, cementing, oil mining equipment, water well drilling rig  and petrochemical products,Electric oil-submersible pump unit, QYYEQ Submersible power cables and so on.
