Quick Details
-
Brand Name:
-
XF
-
Voltage:
-
110V/220V, 200~400V
-
Weight:
-
100 KG
-
Product name:
-
Pollen powder screening machine circular vibrating sieve with ball
-
Keyword:
-
circular vibrating sieve machine
-
Layer(s):
-
1-5 Layers
-
Function:
-
Screening\separation\sorting\sieving
-
Feature:
-
food level
-
Cleaning system:
-
Bouncing Ball
-
Mesh size:
-
0.025~10mm
-
Material:
-
304/316L Stainless Steel
Quick Details
-
Type:
-
Circular
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XF
-
Voltage:
-
110V/220V, 200~400V
-
Weight:
-
100 KG
-
Product name:
-
Pollen powder screening machine circular vibrating sieve with ball
-
Keyword:
-
circular vibrating sieve machine
-
Layer(s):
-
1-5 Layers
-
Function:
-
Screening\separation\sorting\sieving
-
Feature:
-
food level
-
Cleaning system:
-
Bouncing Ball
-
Mesh size:
-
0.025~10mm
-
Material:
-
304/316L Stainless Steel

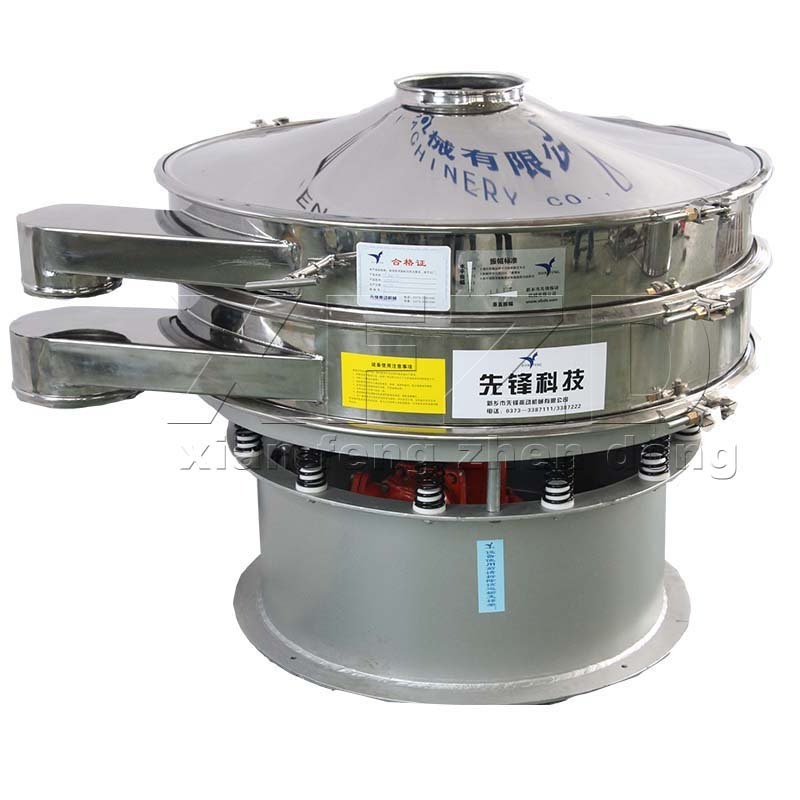

Pollen powder screening machine circular vibrating sieve with cleaning ball
|
Technical Parameter |
||||||||
|
Model |
Outside diameter (mm) |
Screen surface diameter(mm) |
Effective screening area(m 2 ) |
Maximum feeding size(mm) |
Screen mesh
|
Layer |
Vibration time |
Power (kw) |
|
XF-400 |
400 |
Φ360 |
0.09 |
<10 |
2-500 |
1-5 |
1500 |
0.22 |
|
XF-600 |
600 |
Φ560 |
0.22 |
<10 |
2-500 |
1-5 |
1500 |
0.25 |
|
XF-800 |
800 |
Φ760 |
0.4 |
<20 |
2-500 |
1-5 |
1500 |
0.55 |
|
XF-1000 |
1000 |
Φ930 |
0.63 |
<20 |
2-500 |
1-5 |
1500 |
0.75 |
|
XF-1200 |
1200 |
Φ1130 |
0.95 |
<20 |
2-500 |
1-5 |
1500 |
1.1 |
|
XF-1500 |
1500 |
Φ1430 |
1.5 |
<20 |
2-500 |
1-5 |
1500 |
2.2 |
|
XF-1800 |
1800 |
Φ1730 |
2.3 |
<30 |
2-500 |
1-3 |
1500 |
3.0 |
|
XF-2000 |
2000 |
Φ1930 |
2.86 |
<30 |
2-500 |
1-3 |
1500 |
4.5 |
ROTRAY VIBRATION SCREEN is a high precision fine powder screening machine, with low noise and high efficiency. It takes 3-5 minutes to quickly change the net.The rotary screen is made of an upright motor as the excitation source. The upper and lower ends of the motor are equipped with eccentric hammer.
The rotary motion of the motor is transformed into horizontal, vertical and inclined tridimensional motion, which is then transmitted to the screen surface.By adjusting the phase Angle of upper and lower ends, the movement track of materials on the screen surface can be changed.Materials can be fine screening, probability screening, etc.
WHY CHOOSE XF CLEANING SYSTERM? XIANFENG cleaning systerm guaranty more than 2 Years stability. Further, we use expreienced design: Optional generator mode Hign efficient tranfer Special mesh frame structure More than 70% rebound height................................
INSPECTION XF make strict inspections before producing, during producing, before shipment. Inspection item include mesh size, mesh cloth tension, motor temprature, dimesion, noisy, vibration amplitude ect. Inspection reach ISO 2194 Wire screens and plate screens for industrial purposes Nominal sizes of apertures.
Food industry:
sugar, spices, starch, soybeans, salt, instant potatoes, animal feed, powdered milk, cereals and grains, tobacco, teff, instant coffee granules, chocolate powder, soybean flour, broth concentrate, potato granules, sugar beets, ice cream, fruit juices, vegetable and pickle canneries, soybean oil.
Construction industry:
sand, glass beads, plaster, abrasives Grit/shot, borax.
Chemical industry:
fertilizer, rubber, polystyrene beads, paint, detergents, latex, catalyst, casein.
Recycle:
animal blood, paper effluent, brewer yeast, sewage, manure, brewery waste, laundry waste, potato peelings and waste, tallow.
