Quick Details
-
Weight:
-
800 KG, 800KG
-
Dimension(L*W*H):
-
290*110*100cm
-
Product Name:
-
Professional garden diesel lawn mower
-
Usage:
-
Backfill, Bulldozer, Fertilizer sowing
-
Power:
-
23KW/32HP
-
Engine:
-
Diesel engine
-
Fuel consumption:
-
5.5L/h
-
Transport size:
-
290*110*100cm
-
Rubber track size:
-
230*72*43cm
-
Ground clearance:
-
28cm
-
Diesel tank capacity:
-
24L
Quick Details
-
Use:
-
Farms,garden
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Aowei
-
Weight:
-
800 KG, 800KG
-
Dimension(L*W*H):
-
290*110*100cm
-
Product Name:
-
Professional garden diesel lawn mower
-
Usage:
-
Backfill, Bulldozer, Fertilizer sowing
-
Power:
-
23KW/32HP
-
Engine:
-
Diesel engine
-
Fuel consumption:
-
5.5L/h
-
Transport size:
-
290*110*100cm
-
Rubber track size:
-
230*72*43cm
-
Ground clearance:
-
28cm
-
Diesel tank capacity:
-
24L

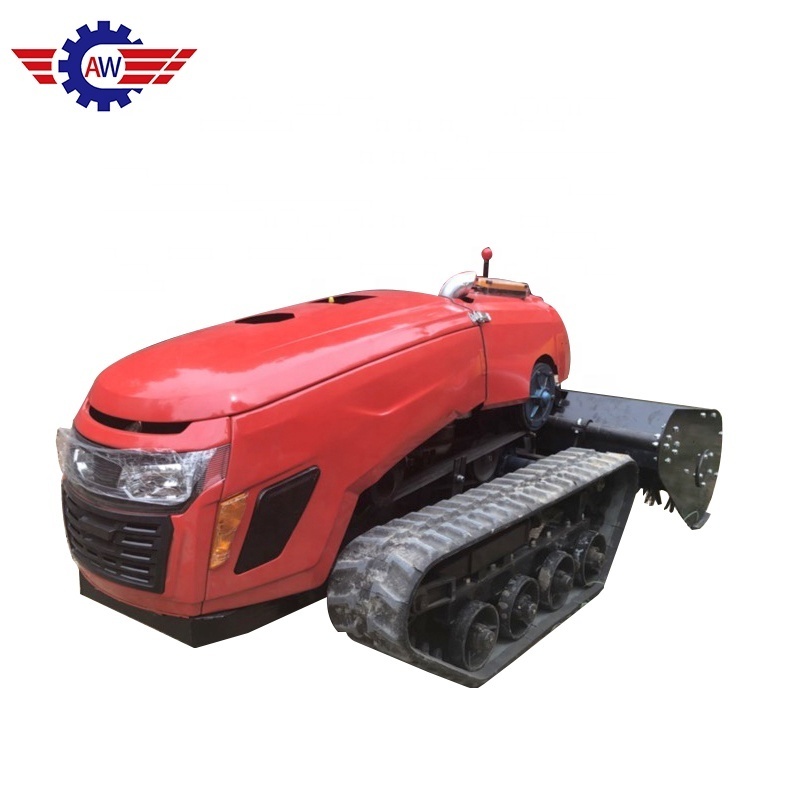

Automatic Farm Orchard Ridging Plough Tiller From China Factory
Mini crawler cultivator machine is a kind of easy-to-use and widely-used agricultural machinery. 3 + 1 walking gearbox, 230mm international engineering rubber track, one machine with nine functions. Only one host is needed to realize the functions of rotary ploughing, furrowing, weeding, fertilizing, pesticide application, backfilling, ridge, bulldozer and transportation platform by changing different attachments.
|
Product name |
Crawler Cultivator Main Machine |
|
Power |
23KW/32HP |
|
Gear |
3 forward gear 1 reverse gear |
|
Climbing |
30° |
|
Engine |
Diesel engine |
|
Fuel consumption |
5.5L/h |
|
Transport size |
290*110*100cm |
|
Weight |
800KG |
|
Rubber track size |
230*72*43cm |
|
Remote control distance |
≤200M |
|
Ground clearance |
28cm |
|
Diesel tank capacity |
24L |
|
Rotary cultivator |
|
|
Type |
Rotary knife type integral or split knife shaft |
|
Quantity of blades |
28 |
|
Rotating speed |
350 r/min |
|
Rotary tillage depth |
20-22cm |
|
Rotary tillage width |
1.2m |
|
Blade material |
65 Model manganese steel |
|
Sprayer |
|
|
Modus |
Air spray |
|
Spray radius |
10-12M |
|
Medicine box capacity |
320L( Two Medicine boxes) |
|
Nozzle quantity |
7 |
|
Trencher |
|
|
Blade material |
65 Model manganese steel |
|
Type |
Knife disc type |
|
Work efficiency |
800-1000 m/hour |
|
Ridging depth |
25cm-30cm |
|
Rotating speed |
550 r/min |
|
Bulldozer |
|
|
Width |
1.12m |
|
Height |
36cm |
|
Backfill |
|
|
Type |
Spiral type |
|
Rotating speed |
550 r/min |
|
Working width |
1m-1.2m(customizations) |
|
Lawn mower |
|
|
Type |
Vertical knife |
|
Stubble height |
3cm-5cm |
|
Mowing width |
120cm |
|
Knife disc rotating speed |
950 r/min |
|
Ridging |
|
|
Ridge height |
20cm |
|
Up ridge width |
40cm |
|
Down ridge width |
70cm |
|
Transportation platform |
|
|
Platform area |
120cm*124cm |
|
Driving load |
500kg |
|
Ground clearance |
180cm |
|
Fertilize |
|
|
fertilizer tank capacity |
150L |
|
Fertilization depth |
5-25cm |
Farm Trenching machine mainly has five major functions: one-time completion of automatic backfilling of trenching and fertilization (fertilizer + organic fertilizer), separate ditching and soil fertility, replacement of backfilling, rotary tillage, and weeding device for backfilling, rotary tillage and weeding operations.
|
Product name |
Multifunctional Farm crawler trenching machine |
|
Diesel engine power |
28HP |
|
Machine size |
2490*1000*750mm |
|
Ditch width |
30-40cm |
|
Ditch depth |
30-40cm |
|
Fertilization depth |
20-35cm |
|
Rotary tillage depth |
20-22cm |
|
Rotary tillage width |
90cm |
|
Backfill width |
100cm |
|
Weeding width |
90cm |
1. The fuselage is thick, compact, and crawler-type. The knives are thickened wear-resistant and durable, and work efficiently.
2. High-efficiency fertilization, organic fertilizer powder fertilizer can be adjusted to the minimum half a catty per meter of fertilization.
3. The speed of ditching is adjustable, and the walking speed during work can be controlled at 350 meters per hour and the fastest hour is 3000 meters per hour.
4. Gear link transmission transmission, strong power.
5. Electric start 28 horsepower single-cylinder water-cooled engine with reliable quality, abundant power and convenient maintenance.
6. Double track tank design, coupled with high-powered engine, makes the product have off-road climbing ability, adapt to all kinds of terrain.
7. The low fuselage, low center of gravity, stable stability, five functions of all kinds of tools, all hydraulic lifting, easy to operate.
8. Multifunction: Cultivation, fertilization, weeding, spraying and traction and so on.
Mainly used for orchard ditching, field management, park ditching, drainage operations. The machine is small in size and easy to operate, and can be turned in place. It is suitable for ditching and fertilizing operations of economic crops such as grapes, fruit trees, walnuts, alfalfa and blueberries.
