Name: Filling and capping
Material: Stainless steel
Original: Self made
Bottle conveyed to rotating disc plate, firstly filling stations, secondly loading cap station, then capping station, and lastly comes our to conveyor.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
≤±1%
-
Voltage:
-
AC380V/220V, Three or Single Phases
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HY
-
Dimension(L*W*H):
-
150x120x160cm
-
Weight:
-
500 KG
-
Product name:
-
Bottle Filling Capping Machine
-
Function:
-
Automatic Filling Capping
-
Sealing type:
-
Dropper Lid Screwing Method
-
Suitable for:
-
Dropper Essential Oil
-
Filling nozzles:
-
1/2/4Pcs
-
Filling range:
-
10-200ml Customized
-
Capacity:
-
1000-2000BPH
-
Machine material:
-
SUS304 Stainless steel
-
Operation:
-
Automatic Operation
Quick Details
-
Machinery Capacity:
-
1000-2000BPH
-
Packaging Material:
-
Plastic, Paper, Metal, Glass, Wood
-
Filling Material:
-
Sanitized Spray Alcohol
-
Filling Accuracy:
-
≤±1%
-
Voltage:
-
AC380V/220V, Three or Single Phases
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HY
-
Dimension(L*W*H):
-
150x120x160cm
-
Weight:
-
500 KG
-
Product name:
-
Bottle Filling Capping Machine
-
Function:
-
Automatic Filling Capping
-
Sealing type:
-
Dropper Lid Screwing Method
-
Suitable for:
-
Dropper Essential Oil
-
Filling nozzles:
-
1/2/4Pcs
-
Filling range:
-
10-200ml Customized
-
Capacity:
-
1000-2000BPH
-
Machine material:
-
SUS304 Stainless steel
-
Operation:
-
Automatic Operation

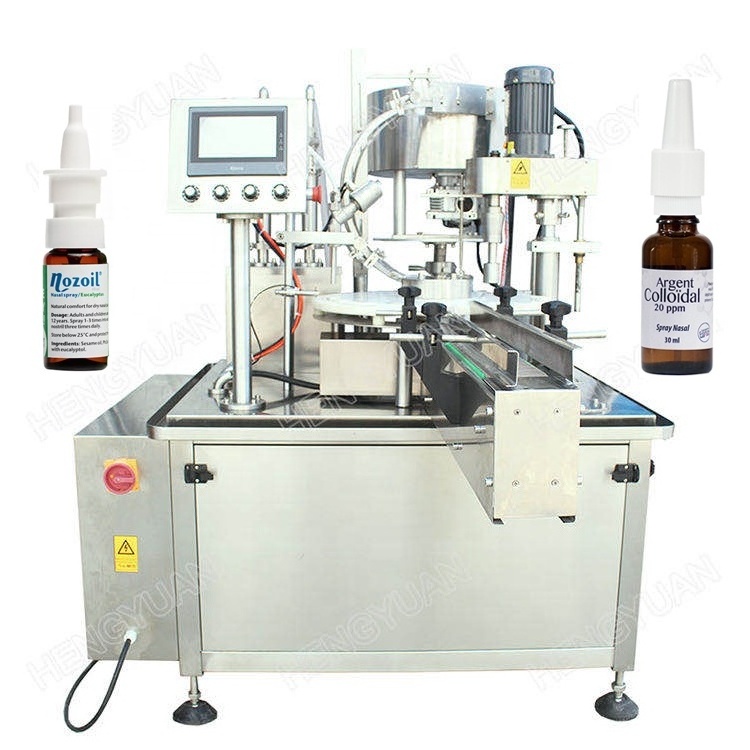

Automatic Star wheel Type Nasal Spray Bottle Dispenser Capper Liquid Filling Capping Machine
Product Description
Product Introduction
Rotating Disk Spray Medical Alcohol Filling and Capping Machine is a mono-block machine combines filling and capping, applicable
for various bottles and liquids, PLC computer system and touch screen controlling, filling part is driven by the servo motor,adopting the volumetric principle, which is helped to realize the high filling precision. Capping part consists of cap-feeder,cap-scratch, cap-clamping, bottle conveying and capping parts. The whole machine runs stably and reliably with high efficient and high adaptation. The above mentioned parts are made of stainless steel 304, totally matching GMP requirements.
Rotating Disk Filling and Capping Machine is mainly used for bottling of daily chemical, food, personal care and pharmaceutics industry.
Application
Spray Alcohol, 50ml Alcohol, 100ml Alcohol, 500ml Disinfectant Alcohol, Rubbing Alcohol
Antiseptic, Anti-bacterial Alcohol, Sanitized Spray Alcohol, 30ml Alcohol, 60ml Alcohol, 75ml Alcohol,100ml Alcohol, 1 FL OZ Alcohol, 2 FL OZ Alcohol, 70% Alcohol, 75% Alcohol, 99% Alcohol, Etc. Spray Lid Bottle Filling Capping Machine.
|
Technical Parameters
|
|
|
|
Production capacity
|
20-35 pcs/min(Adjustable)
|
|
|
Bottle size
|
Width: Φ20mm~Φ60mm, height: 50mm-150mm
|
|
|
Filling volume
|
10-250 ml customized
|
|
|
Filling accuracy
|
± 1%
|
|
|
Rejection rate
|
< 1%
|
|
|
Hot air power
|
3 KW
|
|
|
Compressed air
|
0.6-0.8 MPa
|
|
|
Air comsumption
|
200L/H
|
|
|
General power supply
|
AC 380/220V(Optional), Single or three phases, Globally customized
|
|
|
Dimension
|
150(L) x 120(W) x 160(H) cm
|
|
|
Net weight
|
Approx 500 KGS
|
|
Machine Display
Main Features
1) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts. Easy to operate, convenient and stable.
2) Each station can be adjusted by the height indicators, and the turntable cannot be adjusted to keep the table in the position. It is convenient, accurate and can protect the mandrill.
3) Use piston filling or peristaltic pump to be suitable for different liquid.
4) Cap sorting, loading and capping are customized accordingly, such as plastic flat top screw cap, twist-off metal cap, spray cap, pull cover, snap cap, dropper cap, etc.
5)
316L or 304 (optional)stainless steel is used in material contacting parts, The parts need to clean are made of quick-change device.
6) No bottle no filling or capping.
7) Meet GMP standard. Easy to be disassemble and clean.
Detailed Images
Working stations
Driving system
Name:
Splitter and transmission
Material:
Iron and stainless steel
Original:
China
Splitter is used to make rotating plate stop and start. Transmission devices are used to make the whole system works in order.
Electrical box
Name:
Wiring
Material:
Electronic
Original:
Word wide
It uses PLC to control the machine actions, times. Frequency inverter control the motor speed. Electricity low pressure powder supply to transform the AC power to be DC power. And uses other electric components.
HMI Touch Screen
Name:
Touch screen
Material:
Electronic
Original:
German, Taiwan, Japan
Operate on touch screen, matched with PLC, make machine smart and easy to learn. Multi-language can be customized to meet
different needs of user. Brand name can be chosen.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
Packaging
|
|
|
|
Size
|
160(L) *130(W) * 180 (H) CM
|
|
|
Weight
|
580KG
|
|
|
Packaging Details
|
1.The machine is packed by PE film first. Then packed in wooden box.
2. For full container load, we will use pallitizer. If container is too tight, we will use pe film for packing or pack it according to customers special request.
|
|
