Quick Details
-
Brand Name:
-
TOB
-
Voltage:
-
220V
-
Weight (KG):
-
130 KG
-
Applicable Industries:
-
Lithium Ion Battery
-
Marketing Type:
-
Lab Device
-
Core Components:
-
Vacuum tank
-
Product name:
-
High Speed Planetary Ball Mill
-
Power supply:
-
AC 110V/220V
-
Output material size:
-
< 100nm
-
Main disk speed:
-
10-400 r/min
-
Ball mill speed:
-
20-800 r/min
-
Total grinding speed:
-
1200 r/min
-
Speed ratio:
-
1:2
-
Protection grade:
-
IP60
-
Oil seal box size:
-
36*10CM
Quick Details
-
Output (kg/h):
-
0 - 0.005 kg/h
-
Range of Spindle Speed(r.p.m):
-
20 - 800 r.p.m
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TOB
-
Voltage:
-
220V
-
Weight (KG):
-
130 KG
-
Applicable Industries:
-
Lithium Ion Battery
-
Marketing Type:
-
Lab Device
-
Core Components:
-
Vacuum tank
-
Product name:
-
High Speed Planetary Ball Mill
-
Power supply:
-
AC 110V/220V
-
Output material size:
-
< 100nm
-
Main disk speed:
-
10-400 r/min
-
Ball mill speed:
-
20-800 r/min
-
Total grinding speed:
-
1200 r/min
-
Speed ratio:
-
1:2
-
Protection grade:
-
IP60
-
Oil seal box size:
-
36*10CM
Products Description

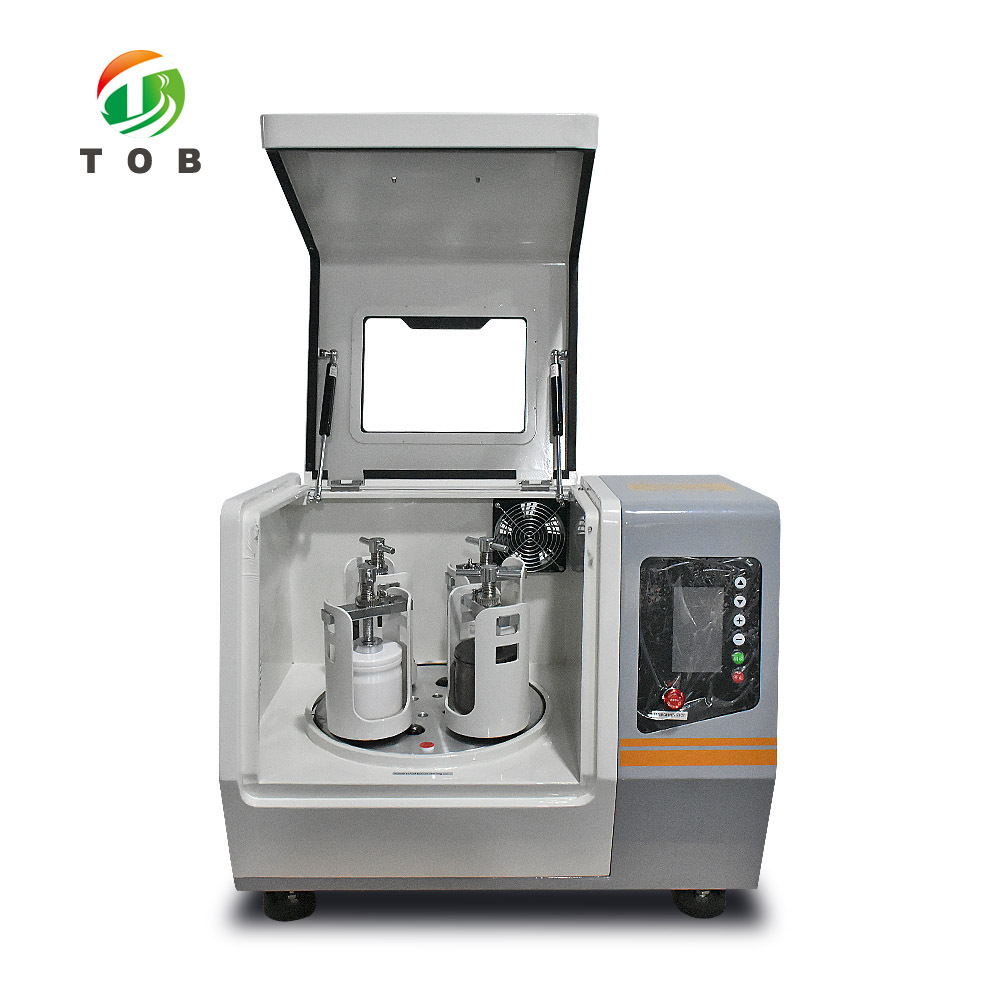

TOB 2L 4L High Speed Planetary Ball Mill Machine for Battery Material Fine Grinding
1. Product introduction
Planetary ball mill is a necessary equipment for mixing, fine grinding, small sample preparation, nano material dispersion, new product development and small batch production of high-tech materials. The product is small, full function, high efficiency and low noise. It is an ideal equipment for scientific research institutions, universities, and enterprise laboratories to get micro research samples (four samples can be obtained in one time). It can be equipped with vacuum ball milling tank, which can grind the samples in the vacuum state. Widely used in geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, environmental protection and other departments.
Planetary ball mill is suitable for wet and dry grinding of hard, medium hardness, brittleness and fiber materials. The sample fineness can be less than 100nm. It can also be used for grinding, mixing and homogenization of solids in suspension, etc., which can achieve perfect and outstanding results.
Four 50ml or 100ml ball milling tanks can be placed at the same time. There are more than ten choices of ball milling tank
materials, ZQM using the latest gear noise reduction technology and fully enclosed oil seal noise isolation patent technology to control the running noise, it is more stable than the ordinary planetary mill, and its service life is increased by more than 5 times, which effectively improves the comfort of the laboratory. The high-efficiency sample processing ability, unique outlook and structure design are well received by users.
Planetary ball mill is a necessary equipment for mixing, fine grinding, small sample preparation, nano material dispersion, new product development and small batch production of high-tech materials. The product is small, full function, high efficiency and low noise. It is an ideal equipment for scientific research institutions, universities, and enterprise laboratories to get micro research samples (four samples can be obtained in one time). It can be equipped with vacuum ball milling tank, which can grind the samples in the vacuum state. Widely used in geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, environmental protection and other departments.
Planetary ball mill is suitable for wet and dry grinding of hard, medium hardness, brittleness and fiber materials. The sample fineness can be less than 100nm. It can also be used for grinding, mixing and homogenization of solids in suspension, etc., which can achieve perfect and outstanding results.
Four 50ml or 100ml ball milling tanks can be placed at the same time. There are more than ten choices of ball milling tank
materials, ZQM using the latest gear noise reduction technology and fully enclosed oil seal noise isolation patent technology to control the running noise, it is more stable than the ordinary planetary mill, and its service life is increased by more than 5 times, which effectively improves the comfort of the laboratory. The high-efficiency sample processing ability, unique outlook and structure design are well received by users.
2. Specification
|
Product name
|
Planetary ball mill
(patented oil seal mute technology + intelligent operation panel) |
|
|
|
Model
|
TOB-ZQM-2
|
TOB-ZQM-4
|
|
|
Grinding tank volume
|
25/50/100/250/500ml
|
25/50/100/500/1000ml
|
|
|
Vacuum tank
|
50/100/250ml
|
50ml/100ml/250ml/500ml/1L
|
|
|
Material handling capacity
|
16ml-160ml
(according to tank volume) |
16ml-330ml
(according to tank volume) |
|
|
Bottom bracket (optional)
|
Bottom bracket available 50/100/250ml
|
Bottom bracket available 50/100/250/500ml
|
|
|
Power supply
|
AC 110V/220V
|
|
|
|
Loading capacity
|
Material ≤ 1/3, Balls ≤ 1/3, material and balls should be ≤ 2/3.
|
|
|
|
Application area
|
Food, geology, metallurgy, agriculture, glass, ceramics, aviation, chemical industry, biology, materials, lithium,electronics, plants, biology, etc.
|
|
|
|
Application sample characteristics
|
Hard, medium hardness, brittleness, fibrous and viscous materials
|
|
|
|
Processing principle
|
Impact force and friction force
|
|
|
|
Processing type
|
Grinding, grinding, mixing, homogenization and alloying
|
|
|
|
Main disk structure
|
Planetary main disc gear soaked with lubricating oil, noise oil seal treatment
|
|
|
|
Maximum feeding size
(different materials) |
< 5mm, soil < 10mm
|
|
|
|
Output material size
|
< 100nm
|
|
|
|
Main disk speed
|
10-400 r/min
|
|
|
|
Ball mill speed
|
20-800 r/min
|
|
|
|
Total grinding speed
|
1200 r/min
|
|
|
|
Safety protection
|
In operation, the door is automatically locked, and it needs to be removed after 5s of shutdown to ensure the safety of
personnel. |
|
|
|
Speed ratio
|
1:2
|
|
|
|
Grinding ball, optional
|
Configuration I: crushing stage
Configuration 2: grinding stage Configuration 3: nano dispersion |
|
|
|
Grinding tank material
|
Stainless steel, agate, zirconia, corundum, tungsten carbide, nylon, polyurethane, polytetrafluoroethylene, silicon carbide, etc.
|
|
|
|
Grinding ball material
|
Stainless steel, agate, zirconia, corundum, nylon, polytetrafluoroethylene, optional
|
|
|
|
Ball diameter
|
1/2/3/5/8/10/15/20/25/30mm
|
|
|
|
Dimension
|
70*50*60cm
|
|
|
|
Weight
|
115kg/130kg
|
|
|
|
Protection grade
|
IP60
|
|
|
|
Grinding method
|
Dry grinding / wet grinding / atmosphere protection grinding / low temperature grinding / high energy mechanical alloy grinding
(optional) |
|
|
|
Location of oil seal box
|
Bottom of planetary main disk
|
|
|
|
Oil seal box size
|
36*10CM
|
|
|
|
Oil seal quantity
|
220ml (must be configured before use)
|
|
|
|
Diameter of planetary disk
|
360mm
|
|
|
|
Storable operation mode
|
Program memory, power off memory
|
|
|
|
Forward and reverse operation
|
Yes
|
|
|
|
Time setting
|
00:01:00-99:59:59
|
|
|
|
Pause time setting
|
00:01:00-99:59:59
|
|
|
|
Emergency stop
|
Yes
|
|
|
|
Power off memory function
|
Yes
|
|
|
|
Noise
|
< 60dB (within 3m)
|
|
|
