Quick Details
-
Power (kW):
-
0.75
-
Range of Spindle Speed(r.p.m):
-
5 - 270 r.p.m
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
MITR
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
760*610*530MM
-
Weight (KG):
-
110 KG
-
product name:
-
Lab Roller Ball Mill
-
Feeding granularity:
-
1-5MM
-
Discharging granularity:
-
0.1-5UM
-
max speed of roller:
-
960rm
-
max speed of jar:
-
270rmin jar diameter:133mm
-
Transmission mode:
-
belt drive
-
Volume and numbers of ball milling jar:
-
0.5-5L 2 jars
-
material capacity:
-
13 capacity of ball milling jar
-
Roller layers:
-
1*3
-
Roller diameter * effective length:
-
50*220
Quick Details
-
Output (kg/h):
-
1 - 10 kg/h
-
Feeding Size (mm):
-
3 - 10 mm
-
Output Size (mesh):
-
300 - 1000 mesh
-
Power (kW):
-
0.75
-
Range of Spindle Speed(r.p.m):
-
5 - 270 r.p.m
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
MITR
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
760*610*530MM
-
Weight (KG):
-
110 KG
-
product name:
-
Lab Roller Ball Mill
-
Feeding granularity:
-
1-5MM
-
Discharging granularity:
-
0.1-5UM
-
max speed of roller:
-
960rm
-
max speed of jar:
-
270rmin jar diameter:133mm
-
Transmission mode:
-
belt drive
-
Volume and numbers of ball milling jar:
-
0.5-5L 2 jars
-
material capacity:
-
13 capacity of ball milling jar
-
Roller layers:
-
1*3
-
Roller diameter * effective length:
-
50*220
Product Paramenters

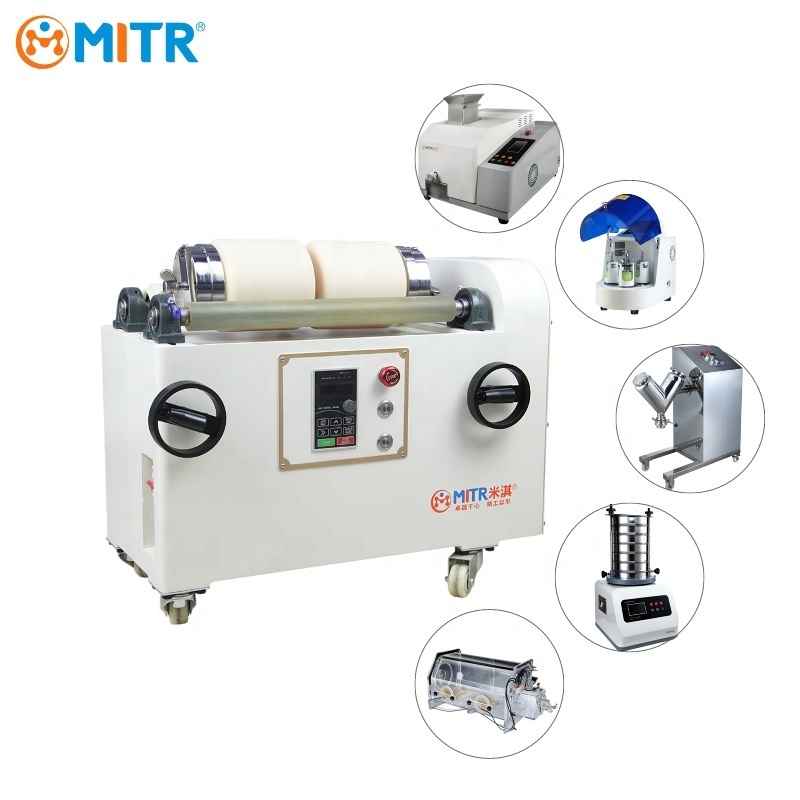

MITR OEM/ODM GMS5-2 Bench Top Roll Jar Mill 2 Positions Laboratory Scale Two Roll Mixing Mill
|
Model
|
Jar Valume*
Quantity
|
Roller
Layers
|
Roller
Piece
|
Roller Diameter*
Length*Part
|
Adjust Distance
With Handwheel
|
Frequency Conversion
Speed Range
|
Voltage
(V)
|
Power
(kw)
|
Driving Mode
|
|
GMS1-2
|
(0.5-1L)*2
|
1
|
2
|
Φ40*180
|
52~160
|
0~300
|
220V
|
0.75
|
Belt
|
|
GMS3-2
|
(0.5-3L)*2
|
1
|
2
|
Φ50*220
|
52~210
|
0~300
|
220V
|
0.75
|
Belt
|
|
JGMS3-2
|
(0.5-3L)*2
|
1
|
2
|
Φ58*200
|
76~225
|
0~300
|
220V
|
0.75
|
Belt
|
|
GMS5-2
|
(0.5-5L)*2
|
1
|
2
|
Φ60*390
|
67~280
|
0~270
|
220V
|
0.75
|
Belt
|
|
GMS10-2
|
(0.5-10L)*2
|
1
|
2
|
Φ70*390
|
67~230
|
0~220
|
220V
|
1.5
|
Synchronize Belt
|
|
GMS20-2
|
(0.5-20L)*2
|
1
|
2
|
Φ80*470
|
30~340
|
0~220
|
380V
|
2.2
|
Synchronize Belt
|
|
GMS30-2
|
(0.5-30L)*2
|
1
|
2
|
Φ80*(425*2)
|
35~290
|
0~200
|
380V
|
2.2
|
Synchronize Belt
|
|
GMS1-4
|
(0.5-1L)*4
|
1
|
3
|
Φ40*180
|
62~160
|
0~300
|
220V
|
0.75
|
Belt
|
|
GMS3-4
|
(0.5-3L)*4
|
1
|
3
|
Φ50*230
|
76~230
|
0~270
|
220V
|
0.75
|
Belt
|
|
GMS5-4
|
(0.5-5L)*4
|
1
|
3
|
Φ60*390
|
67~280
|
0~270
|
220V
|
1.5
|
Belt
|
|
GMS10-4
|
(0.5-10L)*4
|
1
|
3
|
Φ70*(390*2)
|
67~230
|
0~220
|
380V
|
2.2
|
Synchronize Belt
|
|
GMS10-4B
|
(0.5-10L)*4
|
2
|
2
|
Φ70*(390*2)
|
67~230
|
0~220
|
380V
|
2.2
|
Synchronize Belt
|
|
GMS20-4
|
(0.5-20L)*4
|
2
|
3
|
Φ80*(470*2)
|
30~340
|
0~220
|
380V
|
2.2
|
Chain Wheel
|
|
GMS30-4
|
(1-30L)*4
|
1
|
3
|
Φ80*(425*2)
|
35~290
|
0~200
|
380V
|
4
|
Synchronize Belt
|
|
GMS3-8
|
(0.5-3L)*8
|
2
|
3
|
Φ50*(230*2)
|
76~230
|
0~280
|
380V
|
1.1
|
Belt
|
|
GMS5-8
|
(0.5-5L)*8
|
2
|
3
|
Φ60*(310*2)
|
67~280
|
0~270
|
380V
|
2.2
|
Chain Wheel
|
|
GMS10-8
|
(0.5-10L)*8
|
2
|
4
|
Φ70*(410*2)
|
67~302
|
0~220
|
380V
|
3
|
Chain Wheel
|
|
GMS20-8
|
(0.5-20L)*8
|
2
|
4
|
Φ80*(470*2)
|
30~340
|
0~220
|
380V
|
3
|
Chain Wheel
|
Products Description
Features
1.Frequency conversion control speed, program control.
2.Adjusting the roller wheelbase by the hand wheel to prevent the jar movement.
3.The outer lining of the roller shaft with wear-resistant polyurethane to increase friction coefficient and prevent sliding jar
deformation.
4.Feeding granularity less than 3mm,soil <=10mm
2.Adjusting the roller wheelbase by the hand wheel to prevent the jar movement.
3.The outer lining of the roller shaft with wear-resistant polyurethane to increase friction coefficient and prevent sliding jar
deformation.
4.Feeding granularity less than 3mm,soil <=10mm
