- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OKEY
-
Model Number:
-
LW5D-16
-
Max. Current:
-
16a
-
Mechanical Life:
-
10,000,000times
-
IP level:
-
IP65
-
model number:
-
LW5D-16
-
panel:
-
OFF-ON
-
Color:
-
red/yellow
-
Have stock:
-
YES
-
service:
-
OEM/ODM
-
Warranty:
-
2 years
-
packing:
-
Standard exporting carton
-
Delivery Detail:
-
within one week
-
Certification:
-
CE ISO9001
-
Frequency:
-
50Hz
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
500V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OKEY
-
Model Number:
-
LW5D-16
-
Max. Current:
-
16a
-
Mechanical Life:
-
10,000,000times
-
IP level:
-
IP65
-
model number:
-
LW5D-16
-
panel:
-
OFF-ON
-
Color:
-
red/yellow
-
Have stock:
-
YES
-
service:
-
OEM/ODM
-
Warranty:
-
2 years
-
packing:
-
Standard exporting carton
-
Delivery Detail:
-
within one week
-
Certification:
-
CE ISO9001
-
Frequency:
-
50Hz
Product Description
Specification
Introduction
LW5D applied to change over of circuits,also for control of electrical measuring instruments and control of motors.
Technical parameters
LW5D applied to change over of circuits,also for control of electrical measuring instruments and control of motors.
Technical parameters
|
Uses
|
|
Master Control
|
Diredt control motor
|
|
|
|
|
|
|
||||||
|
Rated thermal current
|
ITH
|
A
|
16
|
|
|
|
|
|
|
||||||
|
Rated working voltage
|
Ue
|
V
|
125
|
220
|
250
|
380
|
440
|
500
|
380
|
||||||
|
Rated working current
|
Le
|
A
|
|
|
|
|
|
|
|
||||||
|
AC-15
|
|
A
|
|
4.6
|
|
2.6
|
|
2.0
|
|
||||||
|
DC-3
|
|
A
|
|
|
|
|
|
|
12
|
||||||
|
AC-4
|
|
A
|
|
|
|
|
|
|
3.5
|
||||||
|
DC-13Double breakpoint
|
|
A
|
0.55
|
|
0.27
|
|
|
0.14
|
|
||||||
|
DC-13four breakpoint
|
|
A
|
0.82
|
|
0.41
|
|
|
0.2
|
|
||||||
Mechanical life
Mechanical life without load:0.3×106times,operation frequency is 300 times/h..
Mechanical life with load:AC-15 DC-13 IS 0.01×104times operation frequency is 300 times/h.
AC-3 is 0.1×104times operation frequency is 120 times/h.
AC-4 is 0.1×104times operation frequency is 120 times/h.

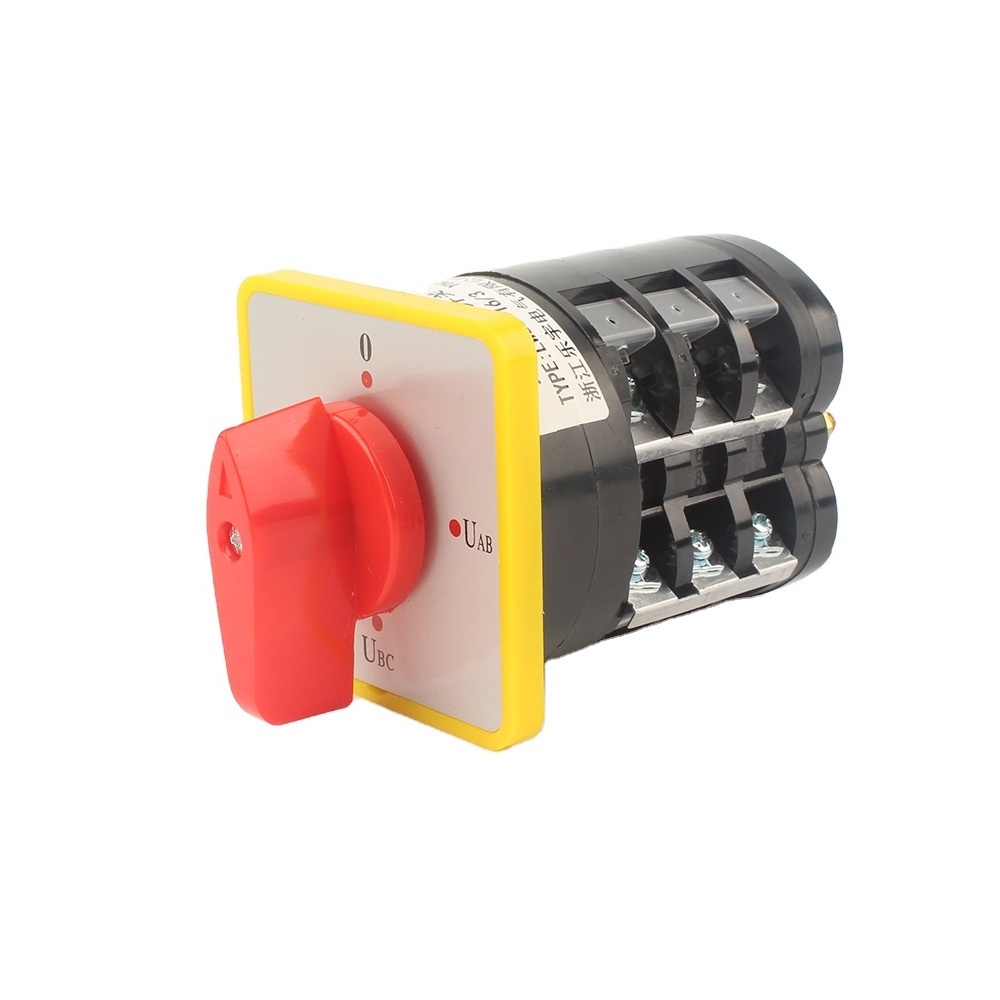

Details Images
