Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
2200
-
Function:
-
Wire Bending Forming
-
After Warranty Service:
-
Online
-
Power Supply:
-
21.9kw
-
Precision:
-
±0.1mm
-
Wire range:
-
2-12mm
-
Dimension:
-
3000*1500*1800mm
-
Number of axes:
-
5
-
Number of wire feed wheels:
-
4
-
MOQ:
-
1
-
Product name:
-
5 Axis Wire Rod Steel Bar Bending Machine
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Marketing Type:
-
New Product 2022
-
Brand Name:
-
bobo
-
Weight (KG):
-
2200
-
Function:
-
Wire Bending Forming
-
After Warranty Service:
-
Online
-
Power Supply:
-
21.9kw
-
Precision:
-
±0.1mm
-
Wire range:
-
2-12mm
-
Dimension:
-
3000*1500*1800mm
-
Number of axes:
-
5
-
Number of wire feed wheels:
-
4
-
MOQ:
-
1
-
Product name:
-
5 Axis Wire Rod Steel Bar Bending Machine

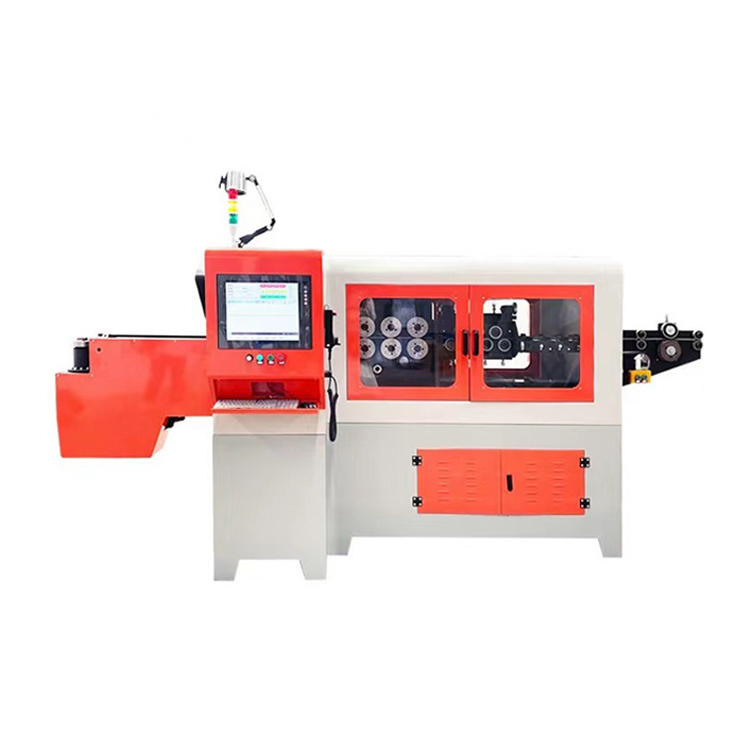

CNC Automatic 3D 2D 5 Axis Wire Rod Steel Bar
Bending Spring Forming Machine For 2-12mm
★ Description
3D wire forming machine is widely used for processing and producing hardware products, supermarket shelves, auto parts, garden tool parts, hair accessories, sports equipment, toys, instruments, pet cages, crafts and other types of high precision metal wire forming parts required. Used for complex workpiece processing, especially steel three-dimensional forming has outstanding effect, CNC operation is simple and easy to learn, eliminating the need for manual bending with hydraulic operation after the two-dimensional forming, more labor-saving.
★ Feature
1. The design concept of this equipment is to replace manual labor with machines, and it can be produced without straightening mechanism and mold opening, and various shapes of three-dimensional planes can be formed.
2. The servo motor is driven by a high-precision servo control system, and the mechanical transmission is connected by a precision gear, so that the wire feeding accuracy and wire feeding speed remain unchanged forever.
3. It is mainly used for bending and forming solid coil materials such as iron wire, stainless steel wire, copper wire, etc., and bending into various shapes such as circle, ellipse, angle, and right angle.
★ Details
★ Processing Effect Display
★ Main Technical Parameter
|
NO.
|
Item
|
Parameter
|
|
|
|
|||
|
1
|
Model
|
3D-308
|
3D-4010
|
3D-5012
|
3D-5014
|
|||
|
2
|
Hard wire
|
3-6mm
|
4-8mm
|
5-10mm
|
5-12mm
|
|||
|
3
|
Soft wire
|
3-8mm
|
4-10mm
|
5-12mm
|
5-14mm
|
|||
|
4
|
Number of axes
|
5
|
5
|
5
|
5
|
|||
|
5
|
Feeding wheel set
|
2
|
4
|
4
|
4
|
|||
|
6
|
Feeding accuracy
|
±0.1mm
|
±0.1mm
|
±0.1mm
|
±0.1mm
|
|||
|
7
|
Total power(kw)
|
12.3
|
15.2
|
21.9
|
23.6
|
|||
|
8
|
Dimension（mm)
|
2400*1100*1500
|
3000*1500*1800
|
3000*1500*1800
|
3000*1500*1800
|
|||
|
9
|
Weight(kg)
|
1650
|
2000
|
2200
|
2300
|
|||
Packaging:
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
