High Sensitive Locating Water Leak Alarm Controller For Data Center 4 Core Water Leak Sensor Cable Water Leakage Detector
High Sensitive Locating Water Leak Alarm Controller For Data Center 4 Core Water Leak Sensor Cable Water Leakage Detector
High Sensitive Locating Water Leak Alarm Controller For Data Center 4 Core Water Leak Sensor Cable Water Leakage Detector
High Sensitive Locating Water Leak Alarm Controller For Data Center 4 Core Water Leak Sensor Cable Water Leakage Detector
High Sensitive Locating Water Leak Alarm Controller For Data Center 4 Core Water Leak Sensor Cable Water Leakage Detector
High Sensitive Locating Water Leak Alarm Controller For Data Center 4 Core Water Leak Sensor Cable Water Leakage Detector
High Sensitive Locating Water Leak Alarm Controller For Data Center 4 Core Water Leak Sensor Cable Water Leakage Detector
High Sensitive Locating Water Leak Alarm Controller For Data Center 4 Core Water Leak Sensor Cable Water Leakage Detector

High Sensitive Locating Water Leak Alarm Controller For Data Center 4 Core Water Leak Sensor Cable Water Leakage Detector

FOB Reference Price: Get Latest Price
≥1 Pieces
US $260
≥50 Pieces
US $240
≥100 Pieces
US $220
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Description:
water leak controller, Locating water leak alarm controller
Model Number:
A-LLM1
Place of Origin:
Guangdong, China
Brand Name:
AnYing
Output:
2ch RS485, 1ch Relay
Item name 1:
water leak alarm lowes
Item name 2:
water leak testing
Item name 3:
water leak testing machine
compatibility:
A-LLM1 sensor cable and the same type tow line sensing cables
Sensor cables maximum length:
500m
Accuracy:
100%
Power supply:
12VDC,3W
Programming agreement:
MODBUS RTU
Relay contacts:
AC125V,0.5A,DC24V,1A,To often open, closed can be chosen

Quick Details

Type:
Water leakage detector
Usage:
Water leak detection
Mounting Type:
indoor or outdoor
Description:
water leak controller, Locating water leak alarm controller
Model Number:
A-LLM1
Place of Origin:
Guangdong, China
Brand Name:
AnYing
Output:
2ch RS485, 1ch Relay
Item name 1:
water leak alarm lowes
Item name 2:
water leak testing
Item name 3:
water leak testing machine
compatibility:
A-LLM1 sensor cable and the same type tow line sensing cables
Sensor cables maximum length:
500m
Accuracy:
100%
Power supply:
12VDC,3W
Programming agreement:
MODBUS RTU
Relay contacts:
AC125V,0.5A,DC24V,1A,To often open, closed can be chosen
Product Overview

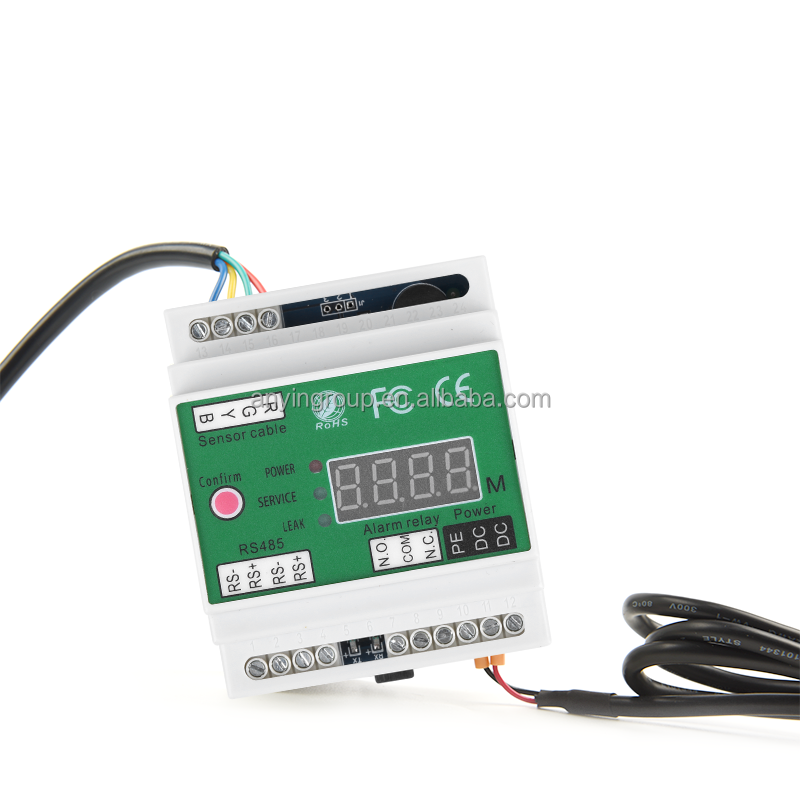

AnYing Addressable Water Leak Detector/Module A-LLM1


A-LLM1 can monitor 800m long water sensing cable A-LLW1000, it will alarm by flash and sound once there is a water leakage on the detection cable. The Leaking meter will be reported on the display,.
With RS485 MODBUS PROTOCOL , it makes A-LLM1 very easy to integrate with other monitoring system (host)
This water leak system wildly used in the data center, machine room, ware house etc any place where there will be a water leak.
FEATURES AT A GLANCE
RS485 MODBUS OUTPUT
RELAY OUTPUT
REAL-TIME DETECTION
REMOTE WATER LEAK MONITORING
LEAKAGE METER REPORTING
EASY INSTALLATION
Locating Water Leak Controlelr A-LLM1
4Pins Leading Wire A-LLW58
4Pins Water Sensor Cable A-LLW1000
PRODUCT SPECIFICATIONS
No
Item
Data
1
Power
DC12~24V
2
Output
RS485/Relay
3
Operating Temperature
0~50℃
4
Max. Cable Length
800meters
5
Cable Resistance
13Ω/Meter
6
Detection Zone
Single Zone
7
Remote Monitoring
Supported
8
Certificate
CE/ROHS/REACH/ISO9001
Details Images

DIN-Way Installation

Leading Wire Connection

.

Power Wire Connection

Successful Project
For Medical Room Project
Project For Data Center
For Ware House Application
SIMILAR PRODUCTS
4Pins Locating Water Leak Detection Cable A-LLW1000




Non-Locating Water Leak System A-LC1A And Leak Sensing Cable A-LC1B

Certifications
FAQ
Q1：What is the Longest Length of Cable A-LLM1 can Monitor ?
A1：A-LLM1 can monitor 800m cable in total

Q2: What is the power supply for this water leak controller ?
A2: The power supply could be DC12~24V

Q3: Can we order the cable in rolls ?
A3: Yes, one complete roll length is 300 meters in total

Q4: What the protocol this leak sensor support ?
A4：A-LLM1 support RS485 MODBUS PROTOCOL.
