Quick Details
-
Brand Name:
-
Yingding
-
Model Number:
-
Shaped insulating rod
-
Surface Treatment:
-
Smooth
-
Shape:
-
Round, square,Customized Shape
-
Diameter:
-
Customized
-
Material:
-
Fiberglass Reinforced Polymer
-
Resin type:
-
Epoxy
-
OEM:
-
Accepted
-
Color:
-
Green or light yellow
-
Product name:
-
Resin Reinforced Epoxy Flexible Solid Fiber Glass Insulating Rods
-
Quality:
-
High quality
Quick Details
-
Application:
-
High Voltage, Electric power industry
-
Technique:
-
Pultrusion, Pultrusion
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Yingding
-
Model Number:
-
Shaped insulating rod
-
Surface Treatment:
-
Smooth
-
Shape:
-
Round, square,Customized Shape
-
Diameter:
-
Customized
-
Material:
-
Fiberglass Reinforced Polymer
-
Resin type:
-
Epoxy
-
OEM:
-
Accepted
-
Color:
-
Green or light yellow
-
Product name:
-
Resin Reinforced Epoxy Flexible Solid Fiber Glass Insulating Rods
-
Quality:
-
High quality
Product Description
Epoxy rod has good electrical properties and mechanical strength, as well as high temperature resistance and corrosion resistance.
Epoxy fiberglass rod is widely used in composite insulator industry .No flaw,crack in the surface and interior, each bar color uniform(green or light yellow).Can withstand the sawing, milling, planning, drilling, lathe and other mechanical processing.It has good damping,creep resistance,fatigue resistance, fracture resistance, high temperature resistance,stress corrosionWe can produce insulating rod according to customer's requirement.
Epoxy fiberglass rod is widely used in composite insulator industry .No flaw,crack in the surface and interior, each bar color uniform(green or light yellow).Can withstand the sawing, milling, planning, drilling, lathe and other mechanical processing.It has good damping,creep resistance,fatigue resistance, fracture resistance, high temperature resistance,stress corrosionWe can produce insulating rod according to customer's requirement.
Specification
|
Model number
|
Shaped insulating rod
|
|
Brand
|
Yingding
|
|
Place of Origin
|
Xiangyang,China
|
|
Size
|
Customized
|
|
Colour
|
Green or light yellow
|
|
Technology
|
Pultrusion
|
|
Shape
|
Round, square,Customized Shape
|
|
Texture
|
Fiberglass Reinforced Polymer
|
|
Material
|
FiberGlass
|
|
surface treatment
|
Smooth
|
|
Application
|
High Voltage, Electric power industry
|
|
OEM
|
Accept
|
Specification of Epoxy Fiberglass Core
|
Diameter
|
Kg/m
|
Diameter
|
Kg/m
|
Diameter
|
Kg/m
|
|
18
|
0.55
|
38
|
2.5
|
65
|
7.3
|
|
19
|
0.63
|
40
|
2.8
|
70
|
8.5
|
|
20
|
0.69
|
42
|
3.05
|
75
|
9.8
|
|
22
|
0.84
|
44
|
3.35
|
78
|
10.51
|
|
24
|
0.98
|
45
|
3.5
|
80
|
11.1
|
|
25
|
1.08
|
46
|
3.6
|
90
|
14
|
|
26
|
1.17
|
48
|
3.98
|
100
|
17.3
|
|
28
|
1.36
|
50
|
4.32
|
110
|
21
|
|
30
|
1.6
|
52
|
4.7
|
120
|
24.9
|
|
31
|
1.66
|
53
|
4.9
|
130
|
29.2
|
|
32
|
1.8
|
55
|
5.3
|
140
|
33.9
|
|
34
|
2
|
60
|
6.2
|
150
|
38.9
|
|
35
|
2.04
|
63
|
6.9
|
160
|
44.3
|
|
36
|
2.24
|
63.5
|
7
|
220
|
81.1
|
Main Specifications of Epoxy Fiberglass Rod
|
Round rod:
|
18mm 24mm, 28mm, 30mm, 34mm, 38mm, 45mm, 50mm, 53mm, 55mm, 60mm, 63mm, 80mm, 90mm, 110mm，220mm
|
|
Square rod
|
34×54，42×62
|
|

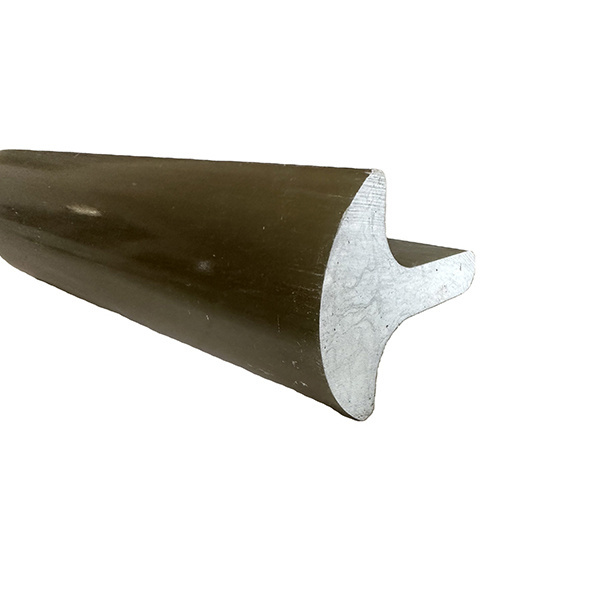

Customized Shape rod
|
R35×73
|
Main Parameters of Epoxy Fiberglass Rod
|
No.
|
Item
|
Units
|
Indicators
|
|
1
|
Density
|
g/cm3
|
≥2.1
|
|
2
|
Water absorption
|
%
|
≤0.05
|
|
3
|
Tensile strength
|
Mpa
|
≥1500
|
|
4
|
Siphon test
|
Min
|
≥15
|
|
5
|
Water diffusion test
|
MA
|
≤0.5
|
|
6
|
Stress corrosion resistance
|
h
|
≥96
|
|
7
|
Bending strength
|
Mpa
|
≥230
|
|
8
|
Volume resistivity
|
Ω.m
|
≥10^10
|
|
9
|
Fiber content
|
%
|
≥80
|
|
10
|
Power frequency voltage
|
Kv
|
≥50
|
|
11
|
Full wave impulse voltage
|
Kv
|
≥100
|
|
12
|
Flame restardant
|
-
|
V0
|
