Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Nylon yarn doubling and twisting machine
-
Dimension(L*W*H):
-
7.07x1.58x2.27m
-
Weight:
-
1000 KG
-
Power:
-
9~18kw
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Application:
-
Yarn Twisting
-
Production Capacity:
-
High Effective
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Nylon yarn doubling and twisting machine
-
Dimension(L*W*H):
-
7.07x1.58x2.27m
-
Weight:
-
1000 KG
-
Power:
-
9~18kw
-
After Warranty Service:
-
Video technical support
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE
Nylon Yarn Doubling And Twisting Machine
TZ628 high speed industrial two-for-one twisting machine is a Hi-Tech creature in our company. It features high spindle speed, wide twisting range and low energy consumption, etc. meets developing requirements of textile industry.
1. Technical features of fiber two-for-one twisting machine:
- Controlled by microcomputer, parametric design, friendly man-machine interface, easy to operate.
- Each spindle independent control, independent winding and traversing device, each spindle has one motor, each winder has one motor for winding one motor for traverse, wide application scope.
- Optimization design of spindle, the yield is higher, twisting quality is higher.
- Large capacity feeding, large capacity winding.
- Equipped with electronic yarn breakage detection device.
- Single spindle control, single spindle length counter, output statistics system.
- Suitable for yarns: Polypropylene, PA, Terylene, Arylon, BCF.
- Quantity of yarn for twisting: 1,2,3,4;
- Length of yarn per spindle for adjusting: each spindle can be different;
- Twist of yarn per: same twist for spindles in the same side;
- Suitable twist range: less than 150 twist/min.
2. Application of fiber two-for-one twisting machine:
l Filament yarn.
l Stretch yarn.
l Short fiber.
l Viscose.
l Aramid.
l BCF .
3. Technical specification of fiber two-for-one twisting machine:
| No. | Item | Specification |
| 1 | Spindle gauge | 700mm |
| 2 | Quantity of spindles | 96-152 spindles |
| 3 | Spindle speed | 10000r/min |
| 4 | Twist range | 20-150t/meter |
| 5 | Speed of yarn | Max. 300m/min |
| 6 | Traverse | 254mm |
| 7 | Usage scope | 500D-4200D (Can be Customization: 11000D) |
| Note: It works when the twist range is higher than 150t/m, but low efficiency. | ||
4. Layout drawing of two-for-one twisting machine:

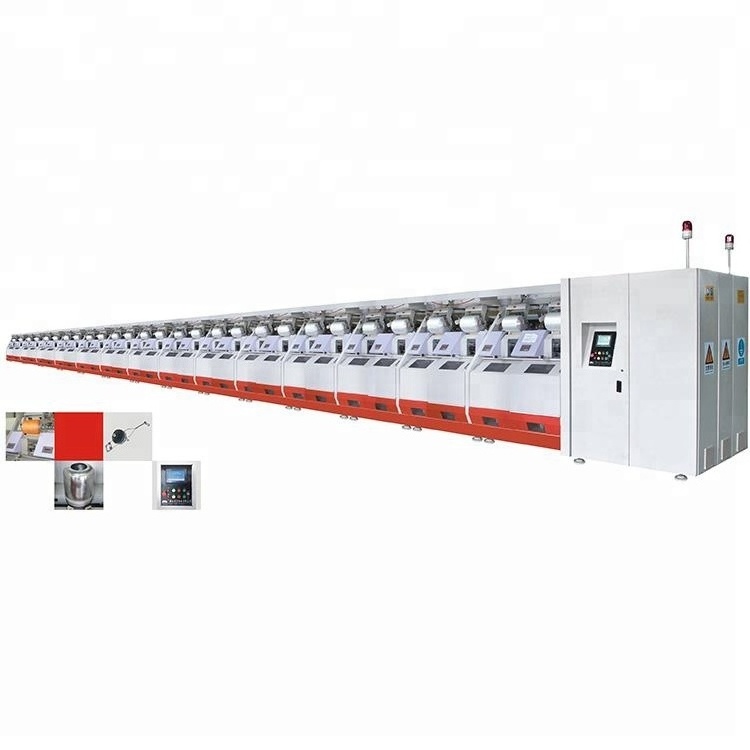

5. Pictures of two-for-one twisting machine:
• We design, engineer and manufacture and customized the production line for every customer.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
