Quick Details
-
Certificate:
-
CE / ISO9001:2008
-
Color:
-
Blue
-
Usage:
-
Supermarket, Port, Warehouse ect
-
Lifting Force:
-
300kg
-
Rated Power:
-
250W
-
Power Source:
-
220 V 50 HZ/60 HZ
-
Max Raising Weight(m):
-
6.0
-
Falling Weight (kg):
-
≤10
Quick Details
-
Place of Origin:
-
Fujian, China
-
Type:
-
Garage Door Openers
-
Name:
-
HAOHUA
-
Certificate:
-
CE / ISO9001:2008
-
Color:
-
Blue
-
Usage:
-
Supermarket, Port, Warehouse ect
-
Lifting Force:
-
300kg
-
Rated Power:
-
250W
-
Power Source:
-
220 V 50 HZ/60 HZ
-
Max Raising Weight(m):
-
6.0
-
Falling Weight (kg):
-
≤10
JMJ series rolling door motor(roller shutter door motor/garage door opener...) is develop base on the demand of market. it is widely used in supermarket, warehoue, garage,factory etc...It not only effects on anti-theft
but also has action of self-locking and drop protection. Meanwhile our company using advance technology ,it has the characteristics of security and stability. easy to consumption with unique design., strong overload capacity with elegant apperance.
MAIN TECHNICAL PARAMENT
| Type | Power Source |
Rated Power (W) |
Rated Current (A) |
Rated Load | Max Raising Height(m) | Falling Weight(kg) | Standar Barrel Dim(lnch) | Sproket Motor/Barrel | Control Way | ||
| Lifiting Force(kg) | Output Torque(N.m) | Output Rotate Speed(r/min) | |||||||||
| JMJ168/5.2-1P Ⅰ (300kg) | 220V 50HZ | 180 | 2.5 | 300 | 168 | 5.2 | 6.0 | ≤10 | 4 | 9T/55T |
ManualControl/ Remote Control
|
| JMJ168/5.2 1P-(300kg) | 220V 50HZ | 250 | 2.5 | 300 | 168 | 5.2 | 6.0 | ≤10 | 4 | 9T/55T | |
| JMJ168/5.2-3P-(300kg) | 380V 50HZ | 180 | 0.8 | 300 | 168 | 5.2 | 6.0 | ≤10 | 4 | 9T/55T | |
| JMJ345/6.2-1P-(500kg) | 220V 50HZ | 370 | 3.5 | 500 | 345 | 6.2 | 7.0 | ≤10 | 5 | 9T/47T | |
| JMJ345/6.2-3P-(500kg) | 380V 50HZ | 250 | 1.0 | 500 | 345 | 6.2 | 7.0 | ≤10 | 5 | 9T/47T | |
| JMJ412/5.2-1P-(600kg) | 220V 50HZ | 370 | 3.5 | 600 | 412 | 5.2 | 6.0 | ≤10 | 5 | 9T/54T | |
| JMJ412/5.2-3P-(600kg) | 380V 50HZ | 250 | 1.0 | 600 | 412 | 5.2 | 6.0 | ≤10 | 5 | 9T/54T | |
| JMJ650/3.4-1P-(800kg) | 220V 50HZ | 400 | 4.0 | 800 | 350 | 3.4 | 10.0 | ≤10 | 6 | 10T/54T | |
| JMJ650/3.4-3p-(800KG) | 380V 50HZ | 300 | 1.1 | 800 | 350 | 3.4 | 10.0 | ≤10 | 6 | 10T/54T | |
| JMJ810/4.2-1P(1000kg) | 280V 50HZ | 800 | 5.8 | 1000 | 810 | 4.2 | 10.0 | ≤16 | 6 | 9T/50T | |
| JMJ810/4.2-3P(1000kg) | 380V 50HZ | 400 | 1.5 | 1000 | 810 | 4.2 | 10.0 | ≤16 | 6 | 9T/50T | |
| JMJ1050/4.2-3P(1300kg) | 380V 50HZ | 600 | 2.0 | 1300 | 1050 | 4.2 | 13.0 | ≤21 | 6 | 9T/50T | |
| JMJ1220/3.8-1P(1500kg) | 280V 50HZ | 1200 | 7.5 | 1500 | 1220 | 3.8 | 13.0 | ≤24 | 6 | 9T/57T | |
| JMJ1220/3.6-3P(1500kg) | 380V 50HZ | 800 | 2.5 | 1500 | 1220 | 3.8 | 13.0 | ≤24 | 6 | 9T/57T | |
| JMJ2450/3.8-3P(2000kg) | 380V 50HZ | 1200 | 4.5 | 2000 | 2450 | 3.6 | 13.0 | ≤48 | 8 | 8T/51T | |

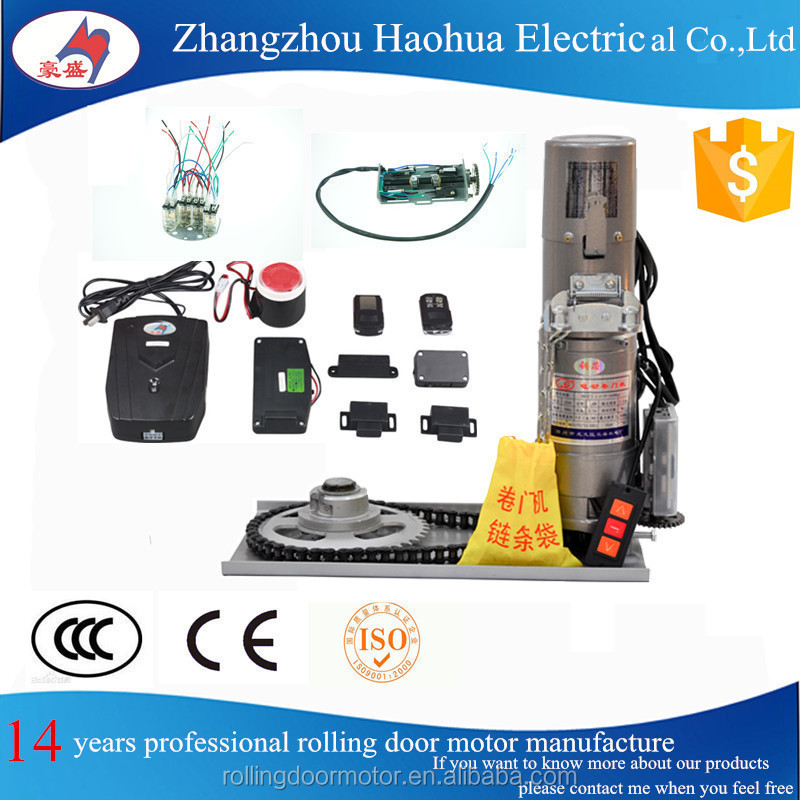

THE FOLLOWING ARE THE PICTURE OF ROLLING DOOR MOTOR DETAILS
Feature of product
•
Press the Rolling Door's
button operation
, power-driven make shut
ter
open and close safely
, positioning accurate and reliable.
•When the
power off
, the
hand chain elevating Rolling Door
, or hand lever gravity separstion by falling closed Rolling Door.
•Motor with
overheat protector
, the role is to prevent the motor overheating.
•Remate control adopts
button transmission mechanism
,It is easy to adjust.
Remote control range can reach up to 10 meters.
•Transmission mechanism using advance technologyand reasonable design.
the gear is easier to operate and not easy wear
.It also has the advantages of
low noise and small shaking .
•The brake organizations adpot hoof form production device, friciyon facings formulation adopts advanced friction materials, friction with large area,
the brake positioning accuracy error
is less
than 10 millimeter.
•
Anti-theft functions
well with using radio remote supporting.
Operational environment
•Temperature: -25°c~50°c
•Highest relative humidity: 95%(25°c)
•Power:single-phase 220V AC ±10%, 50~60HZ
•Operating :10 minutes continuous operation at most
Packaging & Shipping
Packing detail : Rolling door motor , braket and remote control are packed in separate cartons
Delivery detail : About 10-30 days after receiving deposit
