Quick Details
-
Brand Name:
-
MAGTOTO
-
Model Number:
-
MB-10D
-
Name:
-
strong permanent 100kg magnetic base holder with ON / OFF switch
-
Keyword:
-
strong permanent magnetic base
-
Material:
-
ferrite magnet ,A3 steel,plastic
-
Color:
-
Black,purplish red,red,reddish brown,or could be customized
-
Magnetic Force:
-
100kg
-
Packing:
-
1pc/box
-
MOQ:
-
1pc
-
Switch & Cover material:
-
metal or plastic
-
Usage:
-
as a measuring base,or magnetic lifter for removing small steel
-
Tapped Hole:
-
M8*1.25mm
Quick Details
-
Tolerance:
-
±10%
-
Grade:
-
ferrite magnet ,A3 steel,plastic
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MAGTOTO
-
Model Number:
-
MB-10D
-
Name:
-
strong permanent 100kg magnetic base holder with ON / OFF switch
-
Keyword:
-
strong permanent magnetic base
-
Material:
-
ferrite magnet ,A3 steel,plastic
-
Color:
-
Black,purplish red,red,reddish brown,or could be customized
-
Magnetic Force:
-
100kg
-
Packing:
-
1pc/box
-
MOQ:
-
1pc
-
Switch & Cover material:
-
metal or plastic
-
Usage:
-
as a measuring base,or magnetic lifter for removing small steel
-
Tapped Hole:
-
M8*1.25mm

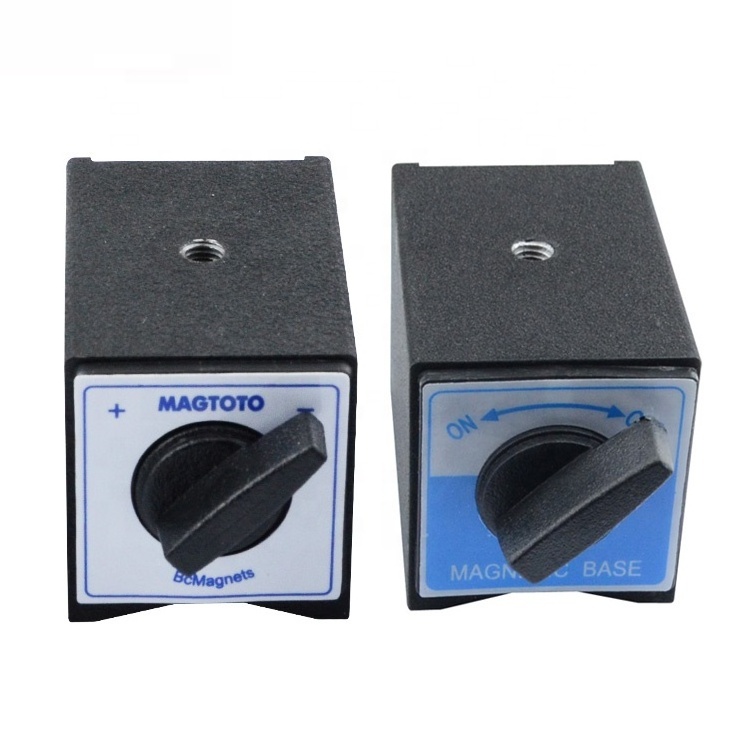

strong permanent 100kg magnetic base holder with ON / OFF switch
Features
With On/Off switch
The shadow material is used low carbon steel
Color & Material & tapped hole can be customized
Tapped hole: M8*1.25mm
Knowing This Tool
strong permanent 100kg magnetic base holder with ON / OFF switch
is available in a wide range of size from small and medium to large and different style.It can meet various application.Usable as a tacking base for equipment,or a measuring base for the machinery industry,or permanent magnetic lifter for removing the small steel.(By installing jigs in the screw holes,if necessary,with slight additional machining.)
Parameters
|
Model
|
Base Size (mm)
|
Magnet Material
|
Switch Material
|
Cover Material
|
Tapped Hole (mm)
|
Magnetic Force (kg)
|
Weight (kg)
|
|
NF-H (flat)
|
36*30*32
|
neodymium
|
plastic
|
metal
|
M5*0.8
|
25
|
0.19
|
|
NF-H
|
36*30*35
|
neodymium
|
plastic
|
metal
|
M5*0.8
|
30
|
0.19
|
|
NF-H
|
36*30*35
|
neodymium
|
plastic
|
metal
|
M5*0.8
|
40
|
0.19
|
|
MB-4D
|
44*50*55
|
ferrite
|
plastic/metal
|
plastic/metal
|
M8*1.25
|
40
|
0.63
|
|
MB-6D
|
60*50*55
|
ferrite
|
plastic/metal
|
plastic/metal
|
M8*1.25
|
60
|
0.95
|
|
MB-8D
|
60*50*55
|
ferrite
|
plastic/metal
|
plastic/metal
|
M8*1.25
|
80
|
0.98
|
|
MB-9D
|
63*50*55
|
neodymium
|
plastic
|
metal
|
M8*1.25
|
90
|
1.2
|
|
MB-10D
|
74*50*55
|
ferrite
|
plastic/metal
|
plastic/metal
|
M8*1.25
|
100
|
1.2
|
|
MB-12D
|
120*50*55
|
ferrite
|
plastic/metal
|
plastic/metal
|
M8*1.25
|
120
|
1.95
|
|
MB-14D (flat)
|
126*50*52
|
ferrite
|
plastic/metal
|
plastic/metal
|
M8*1.25
|
130
|
1.96
|
|
MB-20D
|
200*50*55
|
ferrite
|
metal
|
metal
|
M8*1.25
|
200
|
3.28
|
|
MB-25D
|
250*50*55
|
ferrite
|
metal
|
metal
|
M8*1.25
|
230
|
3.98
|
|
Packing
|
Sea Pallet / Air Carton / Express Packaging / Wooden Case / Shrink Package. Also we can pack strong permanent 100kg magnetic base holder with ON / OFF switch according to your request.
|
|
Delivery Terms
|
FOB, CFR, CIF, EXW, DDP, DDU, Express Delivery
|
|
Delivery Time
|
In 5 days if in stock or 25-30 days after receiving the deposit
|
|
Port
|
Ningbo or Shanghai
|
Q: How long will you give me the reply?
A: 7/24 service for you, all the question will be dealed within 24hours
Q: Could I get samples? Free or extra?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.Sorry samples extra,you should pay for the samples and the freight.
Q: How about your quality?
A: We focus on quality,controlling & service, remaining competitive price,to help our customer to be successful on their stage
Q: How is the price?
A: As we believe the quality is the most important,we will provide the best quality magnet we can with reasonable price.
Q: How to pay you?
A: T/T, Paypal or credit card
Q: Could you provide me the shortest lead time?
A: We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q: If I have paid,when will you help me to produce?
A: When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
