good price signal feedback explosion proof Rotary Mechanical Indicator Valve Monitor Limit Switch box

good price signal feedback explosion proof Rotary Mechanical Indicator Valve Monitor Limit Switch box

FOB Reference Price: Get Latest Price

≥1 Sets

US $19

≥100 Sets

US $15

≥1000 Sets

US $9

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: APL210

Brand Name:: HKC

Item Name:: limit switch box

item no.:: APL210

Certification:: Reach

Quick Details

Port Size:: 1/4" Quick connect fitting

Warranty:: 1 year

Place of Origin:: Zhejiang, China

Model Number:: APL210

Brand Name:: HKC

Item Name:: limit switch box

item no.:: APL210

Certification:: Reach

Product Specification

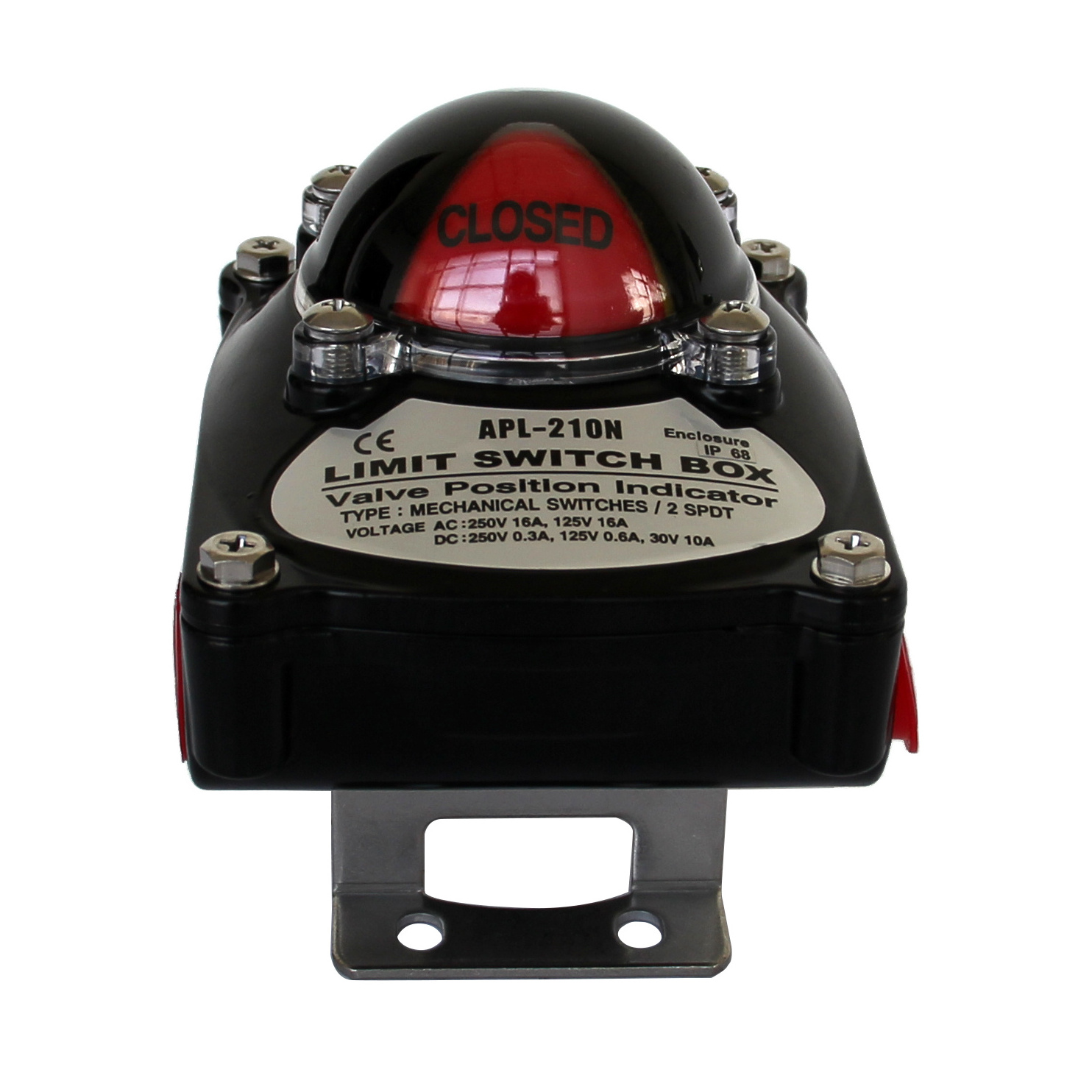

APL-210N Power Coated Aluminium Weather proof Limit Switch Box .

Description:
The APL-2N Series Limit Switch Box is a compact, weatherproof enclosure with internal adjustable position swithes and an external
visual indication.It has NAMUR standard mounting and drive, and is ideally suited for mounting on to quarter turn actuators and
valves.

Other Model: APL-310, APL410

The APL Series Limit Switches features:

1.Solid and compact design aluminium die-cast housing with polyester powder coated finish
2.Bolt-on Visual Position Indicator
3.“Quick-Set” spring loaded splined cam. No need to adjust again after initial setting. Easy setting without tools
4.Dual cable entries
5.Captive cover bolts to prevent loss when cover is removed
6.NAMUR standard stainless steel shaft and bracket

7. The limit switch indicator are greatly used in pneumatic actuator. valve position indicator. 2 SPDT switch

Specification	Standard
Enclosure	Weatherproof IP67 / Nema 4 & 4X
Temperature Range	-20°C to 80 °C
Conduit Entries	2 x ½” NPT
Terminal Settings	8 Points
Position Indicators	Closed: Red, Open: Yellow
Switches	2 SPDT Omron Mechanical Switches
External Coating	Polyester powder coating (silver)
Shaft	Standard Shaft (17mm)
Painting	Polyester powder coating
Voltage	250VAC, 250VDC, 125VDC, 30VDC
Function	show the pneumatic actuator or valve positon

Click Here to Get a Quick Quote

Material:
Housing Cover & Body	Aluminium die-casting
Shaft	Stainless steel
Indicator Cover	Polycarbonate
Indicator	ABS/Polycarbonate
Cam	Polycarbonate
Spring	Stainless steel
Housing Cover & Bolt	Stainless steel
O-Ring	NBR
Bushing	Bronze
E-Ring	Stainless steel
Earth Lug	Stainless steel
Bracket	Stainless stee
