Quick Details
-
Brand Name:
-
Junda
-
Voltage:
-
380/660V ,660/1140V
-
Rated Power:
-
15
-
Dimension(L*W*H):
-
1400mm450mm820mm
-
Year:
-
2022
-
Weight (KG):
-
90 KG
-
Model Name:
-
JDPWJ - M - 3015
-
Pressure of work:
-
45MPa
-
The nozzle diameter:
-
1.02mm
-
Cutting speed:
-
10cm/min
-
Rust removal rate:
-
0.3㎡/min
-
Overall dimensions:
-
1000X450X740mm
-
Equipment weight:
-
255KG
-
Power:
-
15KW
-
Volume of filter:
-
8.4L
-
The pump flow:
-
11L/min
Quick Details
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
Hot Product 2022
-
Cutting Accuracy(mm):
-
0.01
-
Brand Name:
-
Junda
-
Voltage:
-
380/660V ,660/1140V
-
Rated Power:
-
15
-
Dimension(L*W*H):
-
1400mm450mm820mm
-
Year:
-
2022
-
Weight (KG):
-
90 KG
-
Model Name:
-
JDPWJ - M - 3015
-
Pressure of work:
-
45MPa
-
The nozzle diameter:
-
1.02mm
-
Cutting speed:
-
10cm/min
-
Rust removal rate:
-
0.3㎡/min
-
Overall dimensions:
-
1000X450X740mm
-
Equipment weight:
-
255KG
-
Power:
-
15KW
-
Volume of filter:
-
8.4L
-
The pump flow:
-
11L/min
Product Description

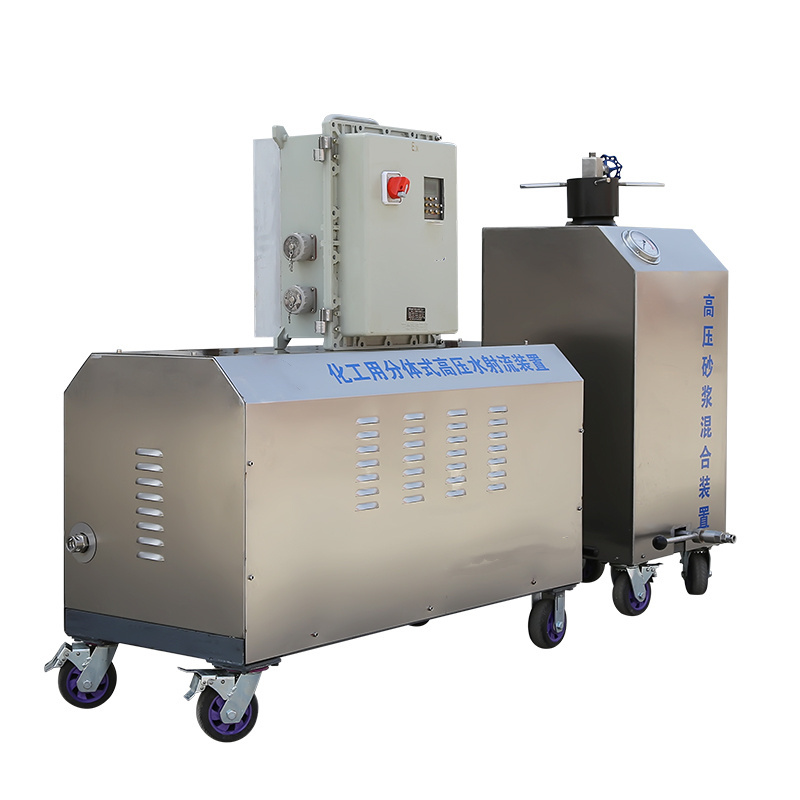

Portable water jet cutter
Water cutting equipment is mainly used in large machine tool equipment, manufacturing industry and smelting and mining, the volume and weight is relatively significant, and the price is high. Through unique design concept and advanced technology, unlike the traditional huge heavy high pressure equipment, the newly developed portable operating water cutting system is several times smaller, which is intelligent, humanized and safe. The system has a unique cold cutting features, fast, safe and efficient, can rapidly transferred to various conditions, It plays an important role in the field of dangerous goods and waste explosive disposal and rescue and damage breaking work. Water cutting machine has passed spark test, electrostatic detection and temperature detection, and met the explosion-proof requirements, especially suitable for coal mine waste anchor cable cutting, corrosion bolts, U shaped steel, rail cutting and modification, which are welcomed by the majority of coal mine enterprises friends.
Product Features
1, small size, light weight, portable, simple operation;
2, split design, convenient transportation, can meet the operation requirements in a narrow environment;
3, safety, no flame, low noise, no environmental pollution;
4, multi-function, rust removal, cutting, high pressure spray and other integration;
5. It can be cut separately with hydraulic power equipment such as mine emulsion pump.
Working Mechanism
The working medium is filtered through the water storage tank and the low pressure hose and flows into the high pressure pump, the flameproof three-phase asynchronous motor is used to power the high pressure plunger pump in underground coal mine. The working medium is pressurized, the high-pressure water flow enters the abrasive tank through the high-pressure hose, and the abrasive is fully mixed, and then the abrasive is driven to accelerate, and it finally goes through the cutting gun, forming high pressure abrasive jet, and starts to perform the cutting operation.
Applications
Cut anchor cable
Connecting Ring Cutting
Cutting steel channel
Cutting round steel
Using in the mine
Specification
Packing & Delivery
Packed in fumigated or non-fumigated wooden cases
