Diesel Engine Spraying Plaster Cement Plastering Spray Factory Direct Dry Mortar Machines Concrete Sprayer Cement Provided IDEAL
Diesel Engine Spraying Plaster Cement Plastering Spray Factory Direct Dry Mortar Machines Concrete Sprayer Cement Provided IDEAL
Diesel Engine Spraying Plaster Cement Plastering Spray Factory Direct Dry Mortar Machines Concrete Sprayer Cement Provided IDEAL
Diesel Engine Spraying Plaster Cement Plastering Spray Factory Direct Dry Mortar Machines Concrete Sprayer Cement Provided IDEAL
Diesel Engine Spraying Plaster Cement Plastering Spray Factory Direct Dry Mortar Machines Concrete Sprayer Cement Provided IDEAL
Diesel Engine Spraying Plaster Cement Plastering Spray Factory Direct Dry Mortar Machines Concrete Sprayer Cement Provided IDEAL
Diesel Engine Spraying Plaster Cement Plastering Spray Factory Direct Dry Mortar Machines Concrete Sprayer Cement Provided IDEAL
Diesel Engine Spraying Plaster Cement Plastering Spray Factory Direct Dry Mortar Machines Concrete Sprayer Cement Provided IDEAL

Diesel Engine Spraying Plaster Cement Plastering Spray Factory Direct Dry Mortar Machines Concrete Sprayer Cement Provided IDEAL

FOB Reference Price: Get Latest Price
≥1 Sets
US $899
≥5 Sets
US $859
≥10 Sets
US $799
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Henan, China
Brand Name:
IDEAL
Dimension(L*W*H):
1400*700*800mm
Weight:
400 kg
Power:
12HP
Product name:
mortar spray machines
Applicable materials:
Mortar Cement Water
Keyword:
diesel mortar spray machines
Function:
Motar Plastering Machine
Usage:
Spray Wall Ceiling Machine
Deisel engine:
Water-cooled double cylinder 4 stroke
Efficiency:
150m2/h
Motor power:
12HP
Compressor power:
2.2KW
Hose diameter:
25#/32#

Quick Details

Max. vertical conveying distance:
20M
Max. horizontal conveying distance:
50M
Hopper Capacity:
30l
Place of Origin:
Henan, China
Brand Name:
IDEAL
Dimension(L*W*H):
1400*700*800mm
Weight:
400 kg
Power:
12HP
Product name:
mortar spray machines
Applicable materials:
Mortar Cement Water
Keyword:
diesel mortar spray machines
Function:
Motar Plastering Machine
Usage:
Spray Wall Ceiling Machine
Deisel engine:
Water-cooled double cylinder 4 stroke
Efficiency:
150m2/h
Motor power:
12HP
Compressor power:
2.2KW
Hose diameter:
25#/32#
Product Overview

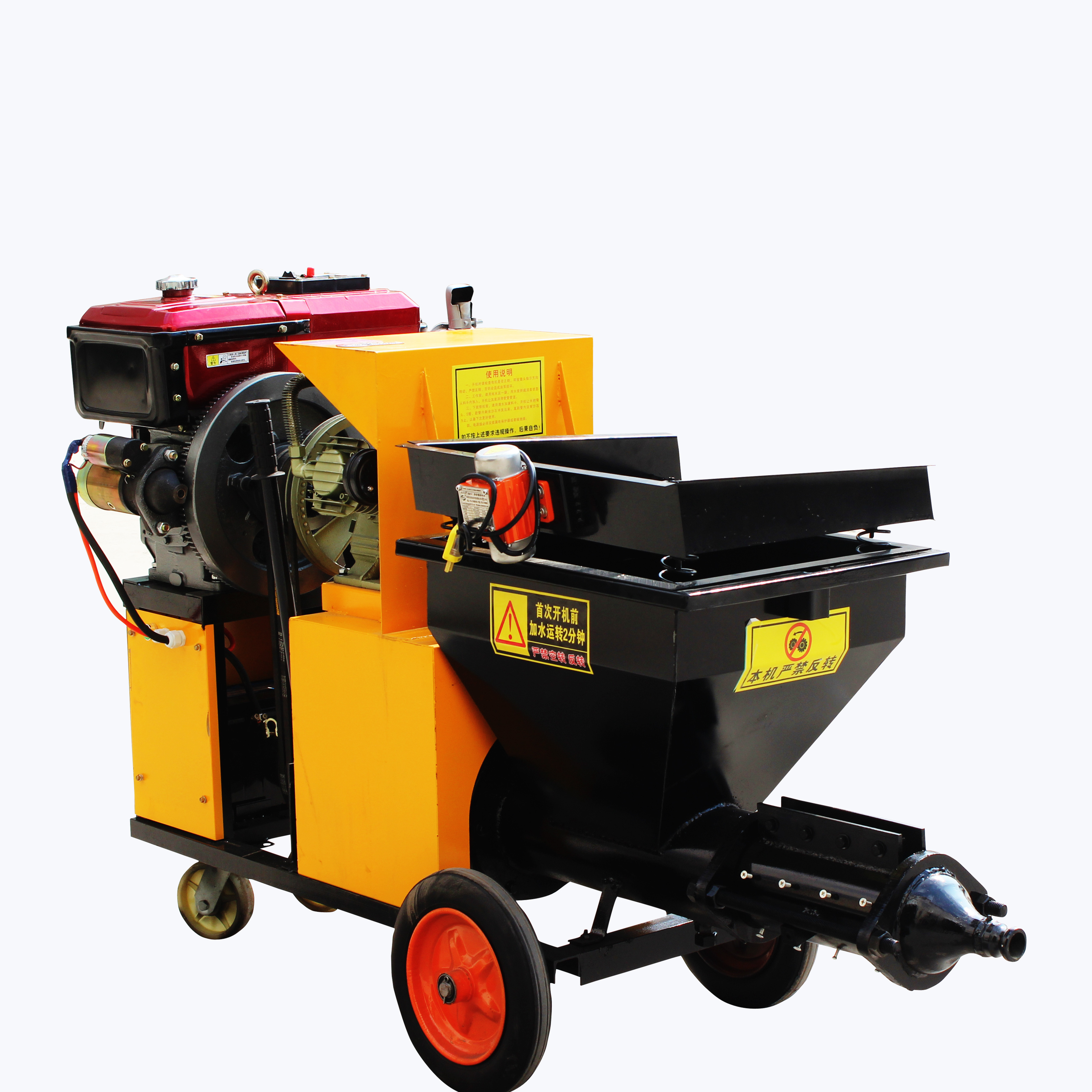

Diesel engine concrete mortar spray

The products are suitable for spraying: building internal and external walls, ceiling, wall pulling, and slurry, high-speed embankment slope protection, etc
FEATURES AT A GLANCE
Model
D511A
D511B
Input voltage
Water-cooled 2 cylinders 4 stroke
Water-cooled 2 cylinders 4 stroke
Efficiency
150m²/h
150m²/h
Rated power
12hp
18hp
Hose diameter
25#/32#
25#/32#
Transfer distance
V:20m/H:50m
V:20m/H:50m
M/S Ratio
1:3
1:3
Sand diameter
≤5mm
≤5mm
Overall size
1800*850*950mm
1900*980*1000mm
Package size
1850*870*1130mm
1910*1000*1180mm
Gross weight
340kgs
400kgs
1)Mortar spraying machine, a kind of spraying machine can be called mortar sprayer, mortar spray equipment, cement mortar spraying machine, stucco machine which has a wide range of uses.
2)It is commonly used for indoor and outdoor wall spraying, cement mortar grouting, bridge grouting, and waterproof, fireproof,ceiling, wall, paint, garden spraying, as well as relief effect coating, sound-absorbing material spraying waterproof plugging, and filling.
3)The mortar spraying machine is very easy to operate and doesn't need scaffolding, mobile equipment, even the small corners, and
roof can be freely sprayed.
4)The use of this equipment can greatly shorten the construction period, improve work efficiency and save the expense of shelf materials.

Mortar spray
Mortar spray
Mortar spray
PRODUCT CONFIGURATION
High-pressure hose
3 diameter types:25/32/38mm
Each bundle of hose is 10m
Conveyor screw Solid wear-resistant screw, no blockage, fast construction.
Two types of spray guns High-pressure putty gun and mortar spray gun (choose one of two), high-quality spray gun improves efficiency.

Vibrators and Filters

The vibration is stable and the filtering performance is good, which can effectively prevent large particles from entering the machine.

Wear-resistant tires

Large rubber tires, anti-skid, and wear-resistant, flexible in turning.

High-pressure pump head

Lengthen the high-pressure pump head, the pressure is large, and the delivery is faster.
